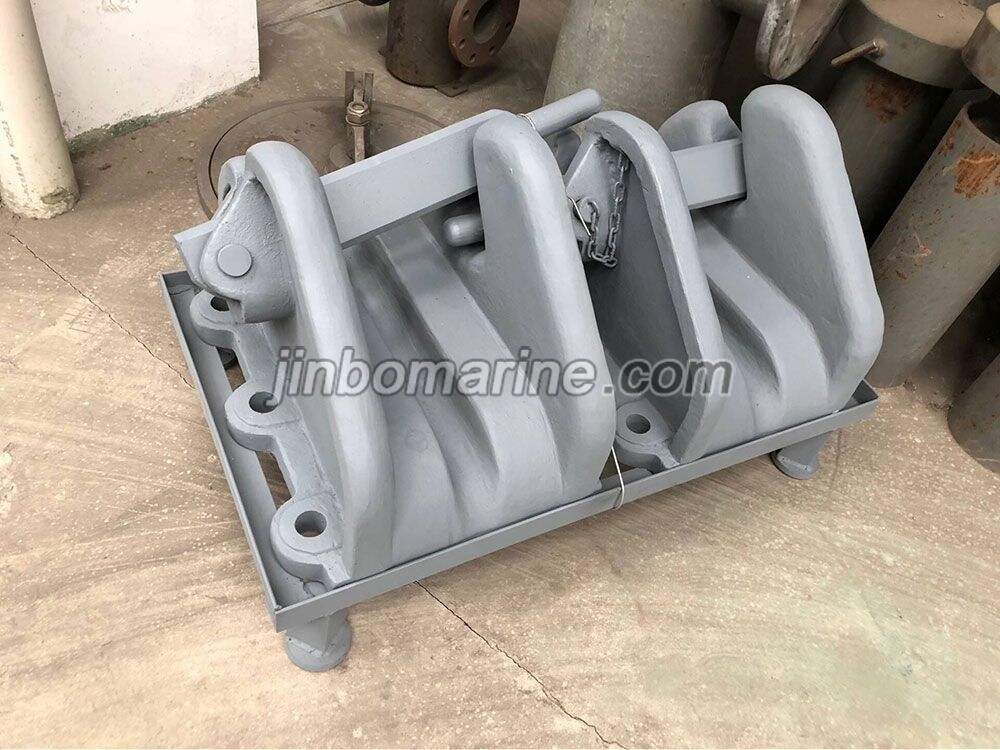

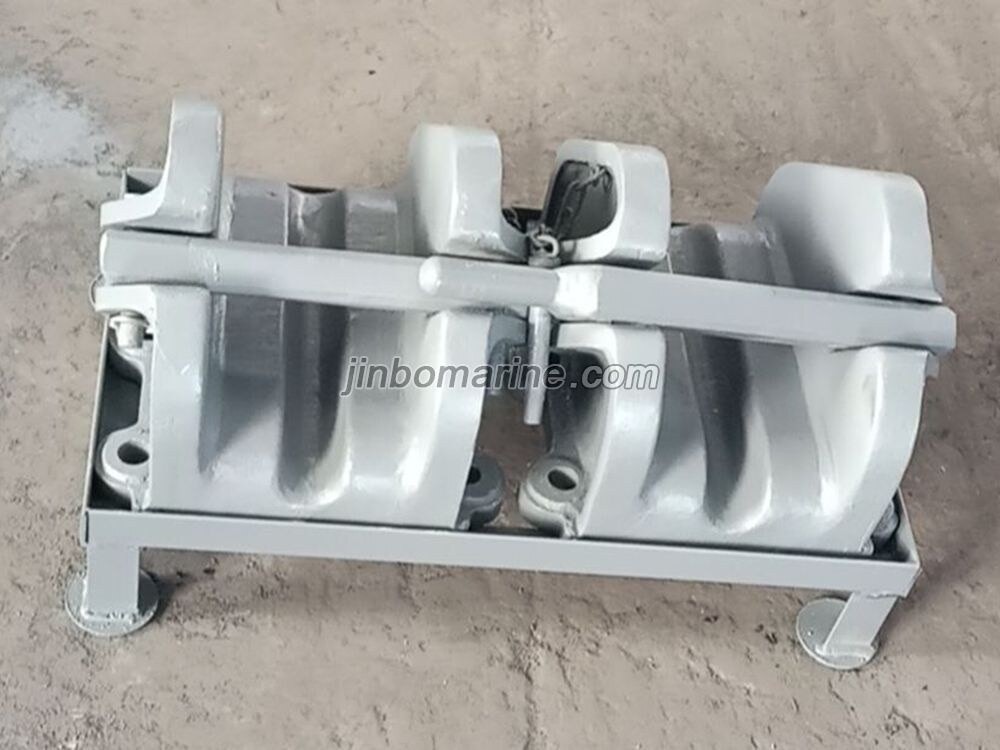

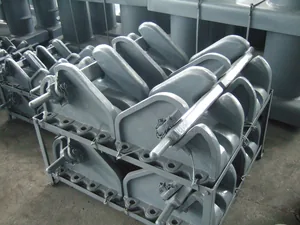

JIS F2002-1976 Cast Iron Bar Type Chain Stopper
- Category:Chain Stopper
- Material:cast iron
- Standards:JIS F2002-1976
- Certificate:ABS , BV, CCS, mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2002 1976 Cast Iron Bar Type Chain Stopper.pdf
Details
China JIS F2002-1976 Cast Iron Bar Type Chain Stopper:
Chain stopper is use for fix the anchor chain prevent it roll out,it can reduce the working load of chain effectively to protect windlass.
1.Certificate:CCS,BV,ABS,DNV etc.
2.Surface Treatment:Polished,galvanized or bitumen painted
3.Can be customized according to customers requirements
4.Long service life,endurable.
|

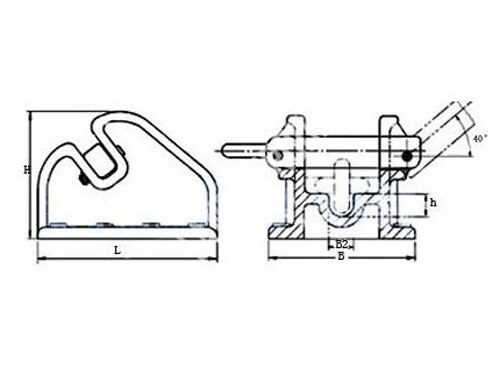

Nominal Chain Dia.(mm) |
Dimensions(mm) |
|||||
|
B |
H |
L |
h |
B2 |
weight(kg) |
|
|
17-19 |
195 |
190 |
270 |
32 |
32 |
22 |
|
20-22 |
215 |
216 |
310 |
37 |
38 |
31 |
|
23-25 |
240 |
241 |
345 |
43 |
43 |
44 |
|
26-28 |
265 |
270 |
385 |
48 |
49 |
58 |
| 30-32 |
305 |
305 |
435 |
54 |
55 |
89 |
|
34-36 |
340 |
342 |
490 |
61 |
61 |
122 |
|
38-40 |
370 |
378 |
540 |
68 |
65 |
160 |
|
42-44 |
405 |
412 |
590 |
75 |
72 |
208 |
|
46-48 |
440 |
450 |
640 |
82 |
78 |
272 |
|
50-52 |
470 |
491 |
695 |
88 |
85 |
338 |
|
54-56 |
495 |
522 |
745 |
95 |
92 |
414 |
|
58-60 |
530 |
564 |
795 |
102 |
98 |
505 |
|
62-64 |
565 |
600 |
850 |
109 |
104 |
618 |
|
66-68 |
590 |
635 |
900 |
116 |
110 |
737 |
