JIS F2033 Roller Bar Type Chain Stopper
- Category:Chain Stopper
- Material:Cast iron, cast steel.
- Standards:JIS F2033
- Certificate:ABS , BV, CCS,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F 2033 Roller Bar Type Chain Stopper.pdf
Details

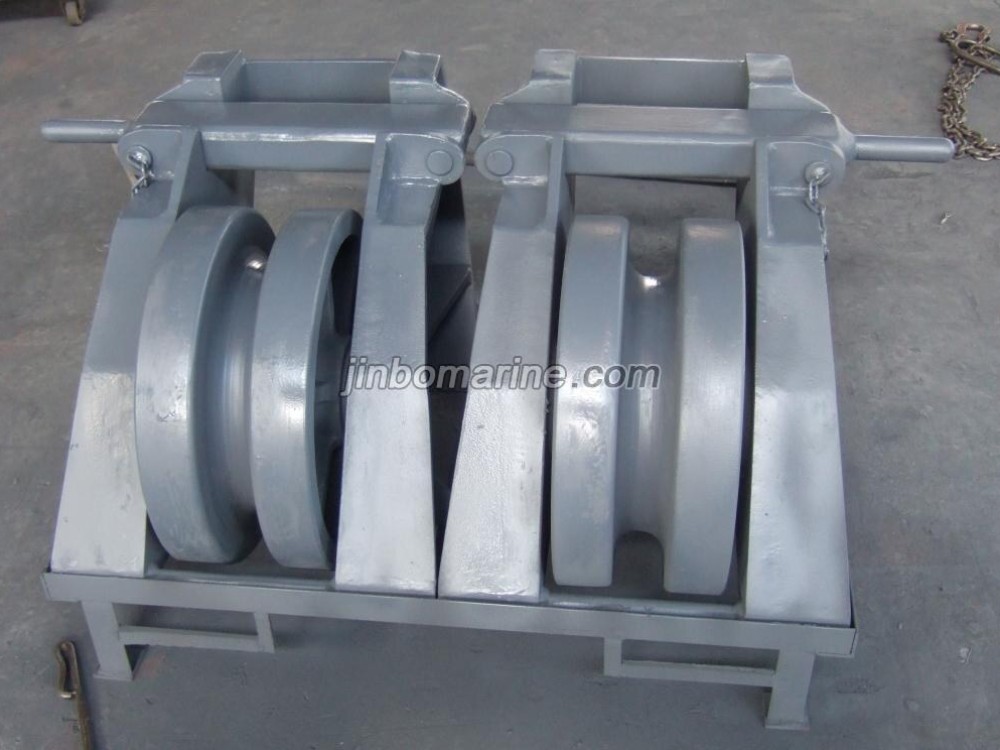

China JIS F2033 Roller Bar Type Chain Stopper:
JIS F2033 Roller Bar Type Chain Stopper is use for grade 3 chain cable.
Process:casting,polishing
Provide CCS,BV,ABS,DNV, mill certificate etc.
Material:Cast iron, cast steel.
Withstand 80% of Chain Cable's breaking load
All products can be designed according to customers requirements.
|

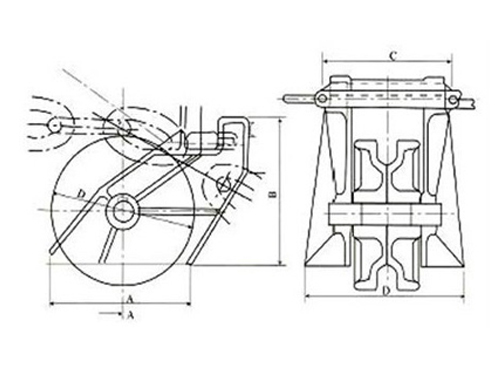

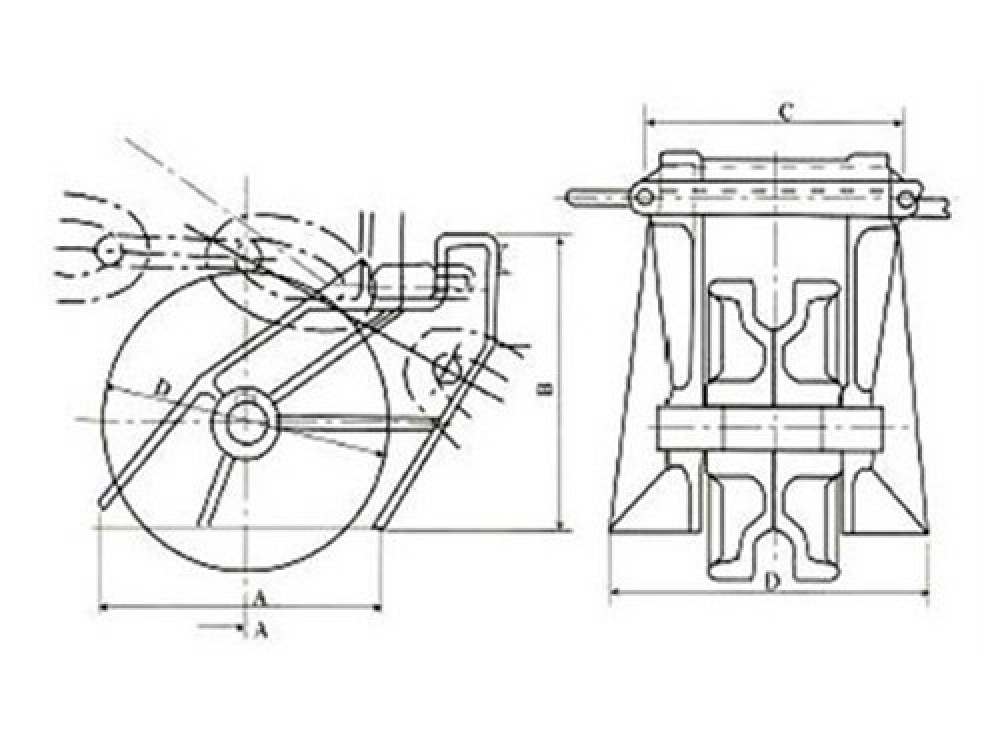

JIS F-2033 Roller Bar Type Chain Stopper |
|||||
|
Nominal Chain Dia.(mm) |
Dimension(mm) |
Weight(kg) |
|||
|
A |
B |
C |
D |
||
|
70-73 |
730 |
715 |
700 |
730 |
1000 |
|
76-78 |
780 |
760 |
730 |
780 |
1180 |
|
81-84 |
840 |
820 |
780 |
840 |
1470 |
|
87-90 |
900 |
890 |
840 |
900 |
1780 |
|
92-95 |
980 |
945 |
880 |
950 |
2110 |
|
97-100-102 |
1020 |
1005 |
940 |
1020 |
2380 |
|
105-107 |
1070 |
1070 |
990 |
1070 |
2900 |
|
111-114 |
1140 |
1140 |
1040 |
1140 |
3440 |
|
117-122 |
1220 |
1220 |
1100 |
1220 |
4100 |
|
127-132 |
1320 |
1315 |
1170 |
1320 |
5080 |
