JIS Type Shackles

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Similar Name

JIS Type Dee Shackle

JIS Type Free Forged Shackle

JIS Type Straight Shackle

Main Specification

  • U type body and a lateral pin.
  • Drop Forged
  • Q235l
  • Used in lifting or fasten cargo or machinery purpose.

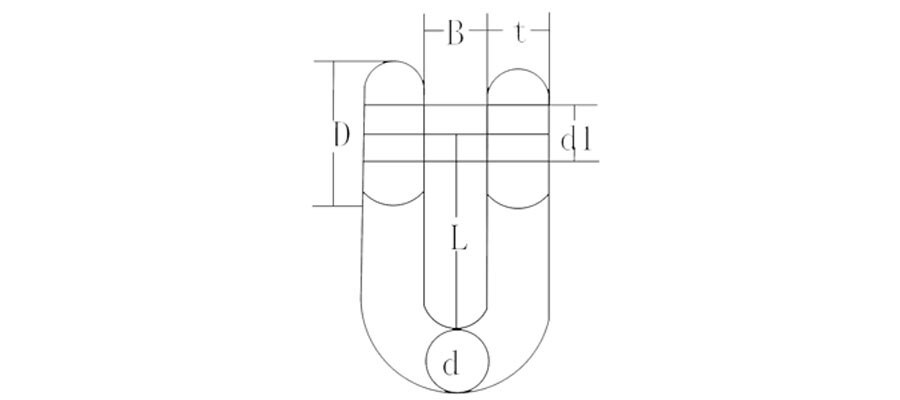

Size Table

Nominal Size B D L dl SWL
m/m In m/m m/m m/m m/m Ton
4.8 3/16 10 10 18.5 5 0.09
6 1/4 12 11 25 6.5 0.15
8 5/16 14 15 31 8.5 0.25
9 3/8 18 17 36 10 0.4
12 1/2 24 23 46 13 0.6
16 5/8 30 32 59 17 0.8
19 3/4 36 37 74 20 1
22 7/8 43 43 86 23 1.5
25 1 47 50 95 27 2
28 1 1/8 55 56 110 30 2.5
32 1 1/4 64 64 130 34 3.2
38 1 1/2 76 76 145 40 4.2
44 1 3/4 80 90 160 47 6.5
50 2 0 100 185 53 8
65 2 1/2 110 130 240 68 15
75 3 120 150 300 78 20
