JL-80 Portable Oil Purifier and Oiling Machine

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

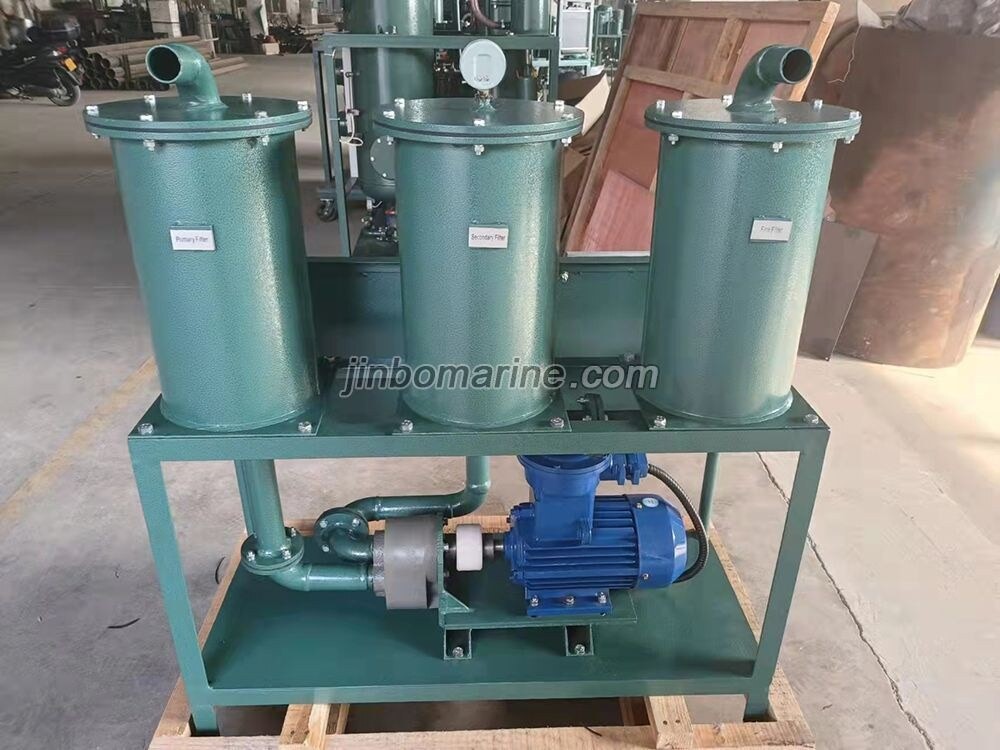

JL-80 Portable oil Purifier and oiling Machine

As composed of three-stage precise filtering, this machine is an ideal portable oil purifier, which can remove the big and tiny impurities effectively.

The product is equipped with three-stage purification, portable, easy to operate,very low price, no need of purification paper,no contamination to the ground.The product can effectively purify the tiny andfine mechanical impurity min oil, enabling it to be a prior choice of power industry, petroleum, chemical, metallurgy,mechanics and railway for oil filling, oil drawing and high precision impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.

Technical Data:

Item Unit JL-32 JL-50 JL-80 JL-150 JL-200 JL-300
Flow rate m3/h 1.9 3 6 9 12 18
Lift m 5 8 8 10 15 15
Cleaness NAS 7 6 6 6 6 5
Motor Power KW 0.75 0.75 2.2 3 4 6
Power Supply 380V 50Hz 3P or 440V 50Hz 3P Others can custom made
Weight kg 95 105 120 130 140 160
