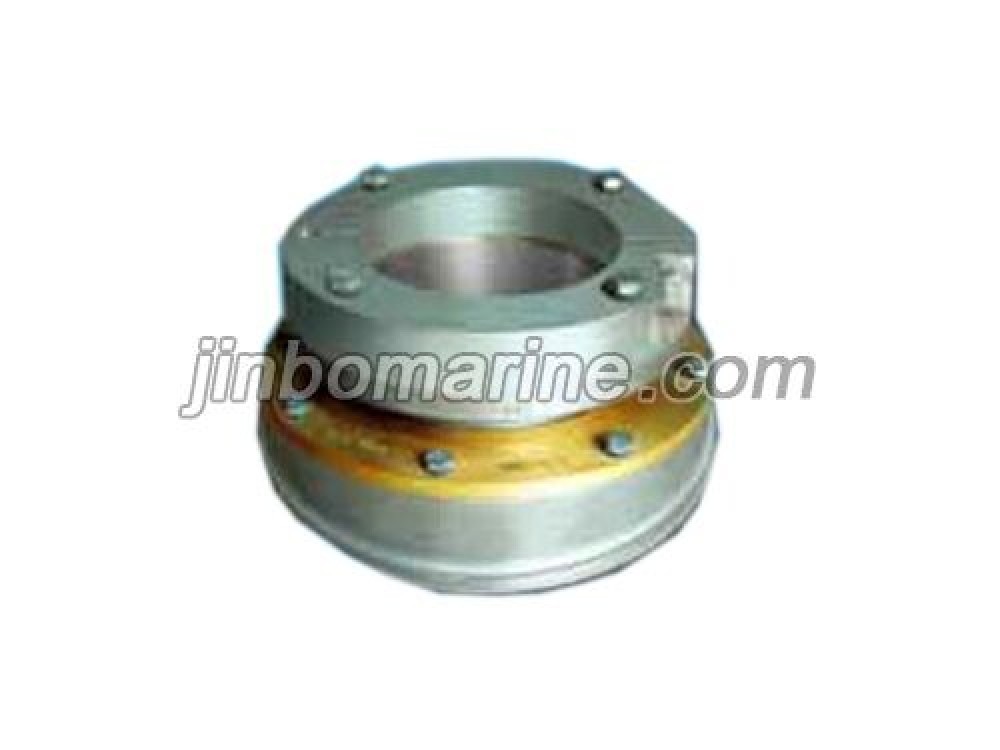

JQ/CS 39 Type Stern Tube seal

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Product Advantage

When inland water vessels have oil as their lubricating working medium and do not have a large stern shatf,this type of apparatuses is suggested to be chosen.

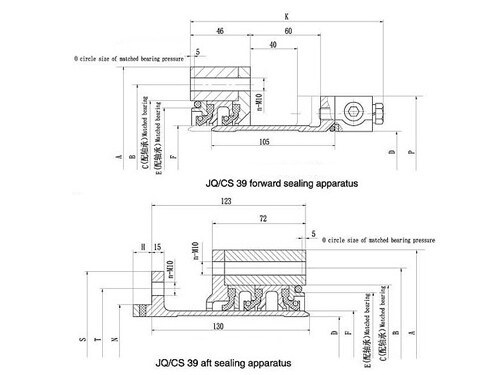

Model D A B C E H K T N P S n F Weight (kg)
Front Back
70JQ/CS39 70 176 150 122 110 17.5 144 116 90 130 145 6 80 9 10.5
80JQ/CS39 80 185 160 132 120 17.5 146 126 100 140 155 6 90 10.2 11.8
90JQ/CS39 90 195 170 142 130 17.5 148 136 110 150 165 8 100 11.5 13.5
100JQ/CS39 100 205 180 152 140 175 150 146 120 160 175 8 110 13 16
110JQ/CS39 110 220 190 162 150 17.5 150 156 130 170 185 8 120 15 19
120JQ/CS39 120 235 200 172 160 20 152 166 145 180 195 8 130 17.8 22.5
