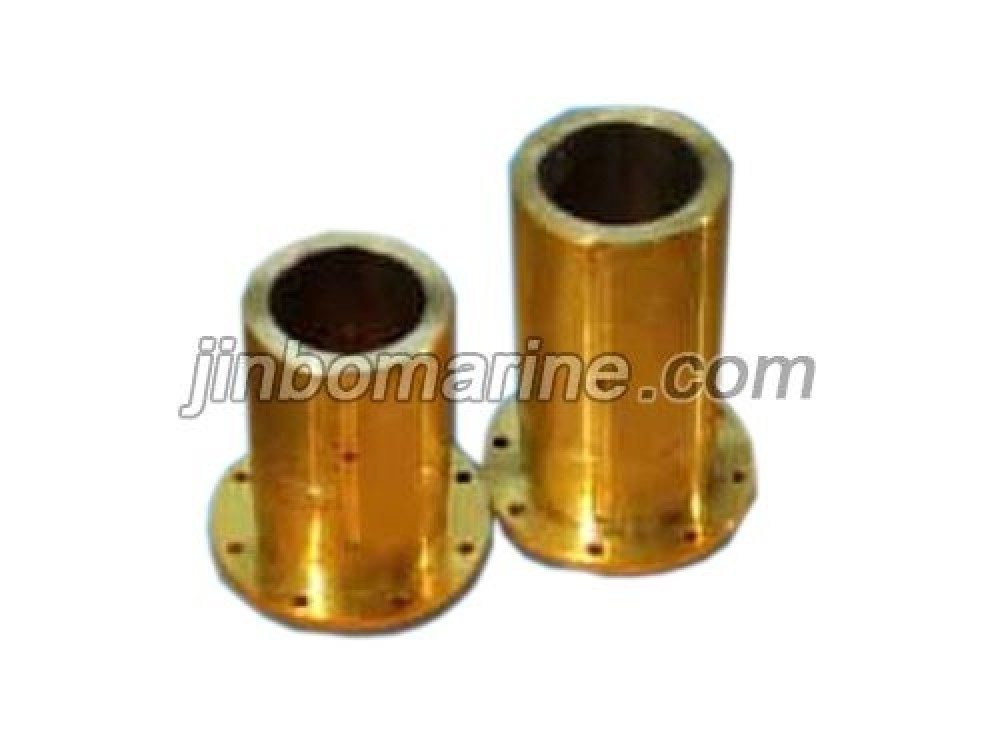

JQ/CS 48A Type Stern Tube Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

This type of bearings is used together with JQ/CS48Asealing apparatus.

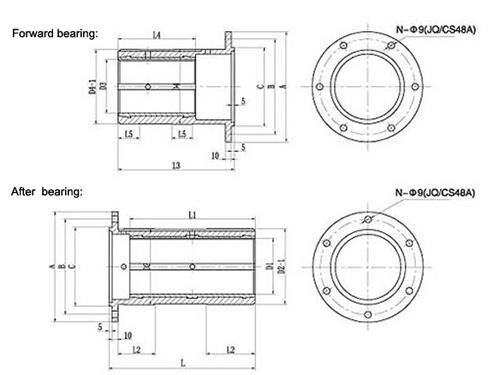

Specification A B C N D1 D2 L L1 L2 L3 L4 L4 Weight (kg)
Front Back
45 110 90 70 4 40 60 135 100 25 95 60 15 1.5 2
50 115 95 75 4 45 66 150 115 30 105 70 15 1.8 2.4
55 120 100 80 4 50 72 160 125 35 115 80 20 2.2 2.9
60 125 105 85 4 55 77 170 135 40 120 85 20 2.6 3.5
65 130 110 90 6 60 83 185 150 45 125 90 25 3.1 4.2
70 135 115 95 6 65 88 195 160 50 130 95 25 3.8 5
75 140 120 100 6 70 93 205 170 55 140 105 30 4.3 6
80 145 125 105 6 75 98 215 180 60 145 110 30 4.9 7.2
85 150 130 110 6 80 105 225 190 65 155 120 35 5.6 9
90 155 135 115 6 85 110 240 205 70 165 130 35 6.4 9.8
95 160 140 120 8 90 115 255 220 75 170 135 40 7.3 10.8
100 165 145 125 8 95 120 265 230 80 175 140 40 8.2 12
105 170 150 130 8 100 126 280 245 85 185 150 45 9.2 13.4
110 175 155 135 8 105 132 295 260 90 195 160 45 10.5 15
