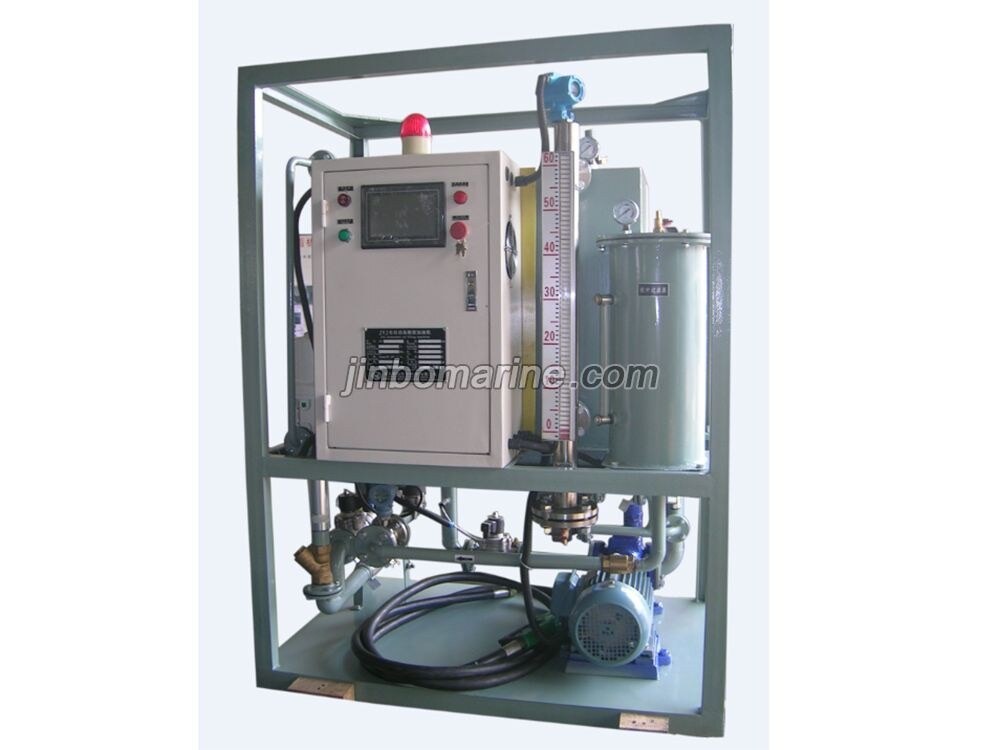

JYJ Full Automatic Oil Filling Machine
- Category:Oil Purifier
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China JYJ Full Automatic Oil Filling Machine:
JYJ automatic high precision oiling machine:
The utility model is especially suitable for various components of the production line, such as the equipment, the engine, the oil drum filling, the work piece, the compressor, the refrigerating machine, the construction machinery, the hydraulic system, various cylinders, fuel tanks, etc..
Technical features:
1. This machine is suitable for field work, according to the requirements of users can be convenient for the equipment of quantitative, constant speed, timing oil.
2. It uses high precision pulse counting, automatic measurement compensation and correction, filling accuracy: + 0.5% (according to user requirements).
3. The equipment control system is mainly composed of PLC, control panel (touch), high precision flow sensor, high degree of automation, high accuracy, low failure rate, safe and reliable. Intuitive operation, animation effect is very realistic.
4. This machine is easy to operate, parameters can be set and modify.
5. The device has heavy oil, oil leakage alarm and instructions. At any time to view the current refueling, refueling time. Can be found in the month of each year, the total amount of fuel per shift.
6. It can be tailored according to the specific circumstances of the production line, so that the equipment as part of the production line. Easy to operate, user-friendly, integrated with the production line more beautiful.
7. It can design a single, double station plus oil, the design of overflow pressure regulator system, dual channel solenoid valve control oil injection, set up and down the liquid level protection and low liquid level automatic oil control.
2. It uses high precision pulse counting, automatic measurement compensation and correction, filling accuracy: + 0.5% (according to user requirements).
3. The equipment control system is mainly composed of PLC, control panel (touch), high precision flow sensor, high degree of automation, high accuracy, low failure rate, safe and reliable. Intuitive operation, animation effect is very realistic.
4. This machine is easy to operate, parameters can be set and modify.
5. The device has heavy oil, oil leakage alarm and instructions. At any time to view the current refueling, refueling time. Can be found in the month of each year, the total amount of fuel per shift.
6. It can be tailored according to the specific circumstances of the production line, so that the equipment as part of the production line. Easy to operate, user-friendly, integrated with the production line more beautiful.
7. It can design a single, double station plus oil, the design of overflow pressure regulator system, dual channel solenoid valve control oil injection, set up and down the liquid level protection and low liquid level automatic oil control.
8. It uses the anti dripping oil self sealing oil gun to ensure the accuracy and no pollution.
Technical data:
Item | Unit | JYJ-10 | JYJ-50 | JYJ-100 |
Flow Rate | L / min | 10 | 50 | 100 |
Working Pressure | Mpa | ≤0.4 | ||
Filling precision | % | ±0.5 | ||
Filling Capacity | L | 0 —99999(Can be asjusted) | ||
Motor Power |
KW | 1.1 | 2.2 | 3 |
Oil inlet | mm | φ20 | φ25 | φ42 |
Flilling inlet | mm | φ6 | φ15 | φ25 |
Power source | / | 380V/50HZ or at user's option | ||
Weight | Kg | 185 | 280 | 350 |
