K1-25/B Wall Mounted Marine Water Boiler

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

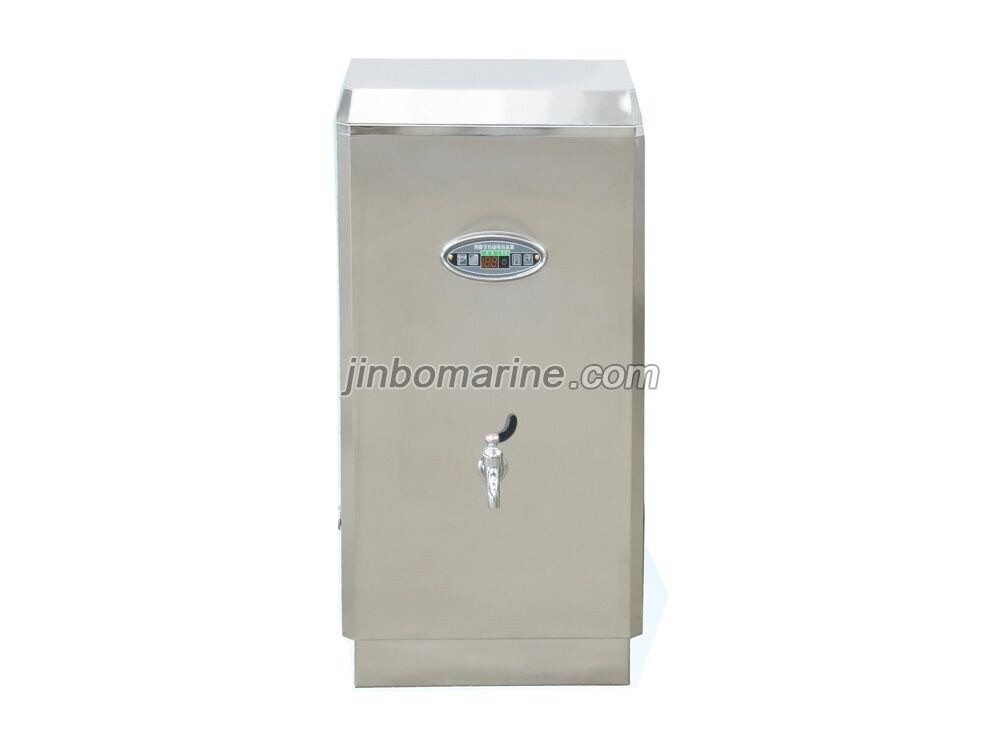

K1-25/B Wall Mounted Marine Water Boiler

1. All stainless steel structure
2. Set up automatic water replenishment device
3. With water cut protection function
4. Equipped with drinkable indicator light and water temperature display
5. Wall installation

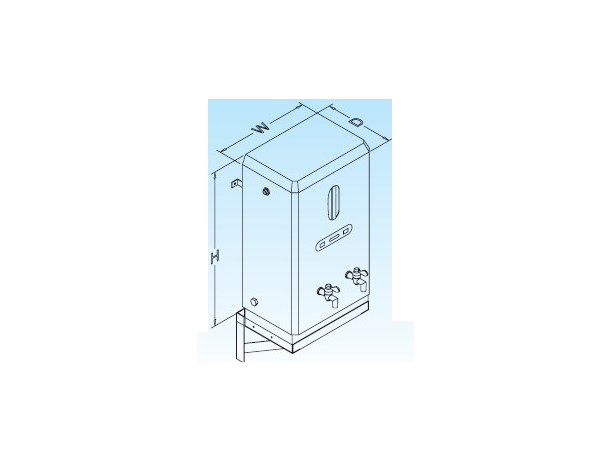

K1-25/B Wall Mounted Marine Water Boiler Drawing

K1-25/B Wall Mounted Marine Water Boiler Parameters

Model 2K1-20 K1-25/B K1-40/B PK-3/B PK-6/B
Volume(L) 10.5L 25L 40L 24L 42L
Voltage 220v-1PH-50Hz 380/415V-3PH-50Hz 440/480v 3ph-60Hz
Power(kw) 2 3 6 3 6
Size(mm) 190X560X560 470X410X630 470X410X750 360X350X825 450X36X980
Weight(kg) 8.5 14 17 11 14
