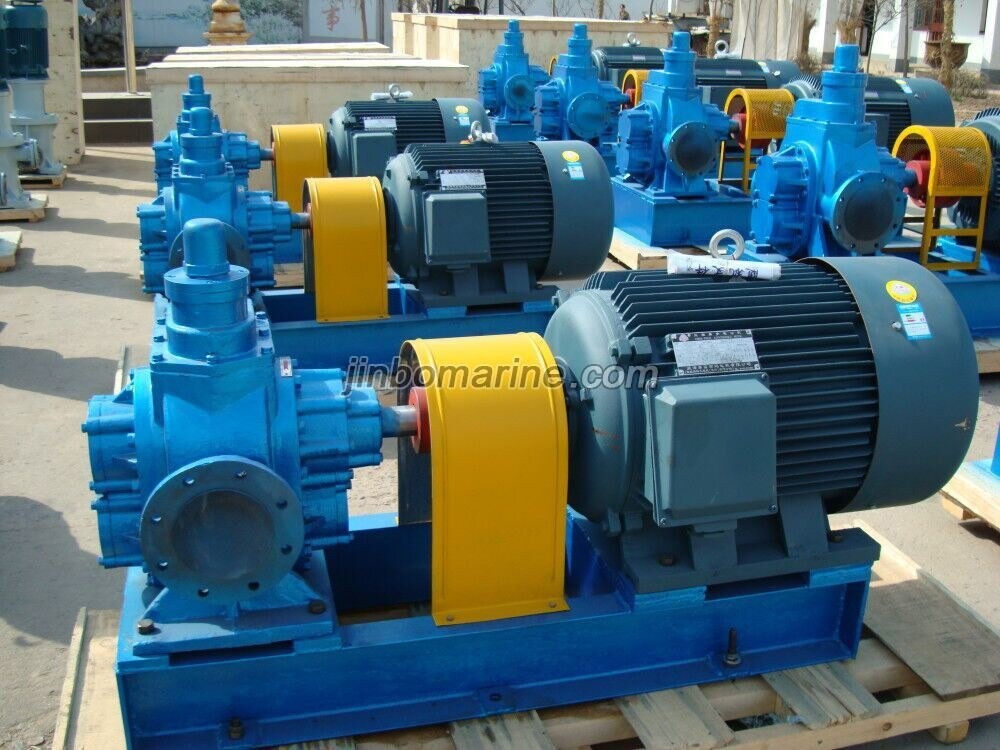

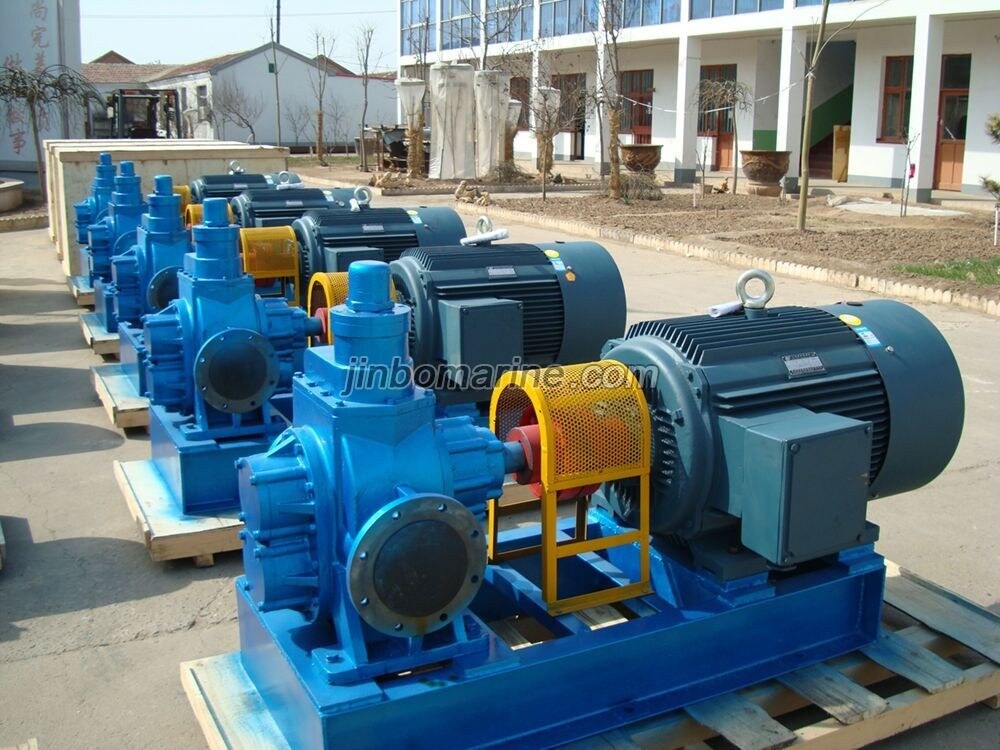

KCB Series Marine Gear Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China KCB Series Marine Gear Pump:

KCB Serie Gear Pump

Mainly use for handle crude palm oil medium.

Type Capacity Speed Discharge pressure NPSH Motor Power
m3/h L/min r/min Mpa m KW
KCB-18.3 1.1 18.3 1400 1.45 5 1.5
KCB-33.3 2 33.3 1420 1.45 5 2.2
KCB-55 3.3 55 1400 0.33 7 1.5
KCB-83.3 5 83.3 1420 0.33 7 2.2
KCB-135 8 135 940 0.33 5 2.2
KCB-200 12 200 1440 0.33 5 4
KCB-300 18 300 960 0.36 5 5.5
KCB-483.3 29 483.3 1440 0.36 5.5 11
KCB-633 38 633 970 0.28 6 11
KCB-960 58 960 1470 0.28 6.5 18.5
KCB-1200 72 1200 740 0.6 7 37
KCB-1600 95 1600 980 45
KCB-1800 112 1800 740 0.6 7.5 55
KCB-2500 150 2500 985 75
KCB-2850 170 2850 740 0.6 8 90
KCB-3800 230 3800 989 110
KCB-4100 245 4100 743 0.6 8 132
KCB-5400 325 5400 989 160
KCB-5600 330 5600 744 0.6 8 160
KCB-7600 460 7600 989 200
KCB-7000 420 7000 744 0.6 8 185
KCB-9600 570 9600 989 250
