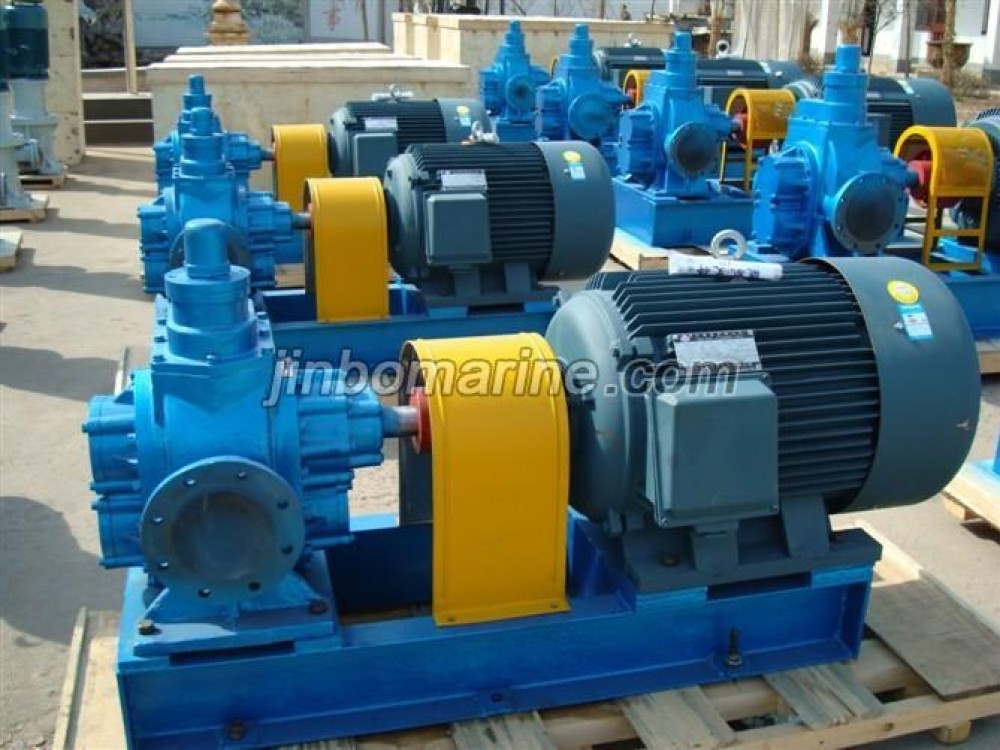

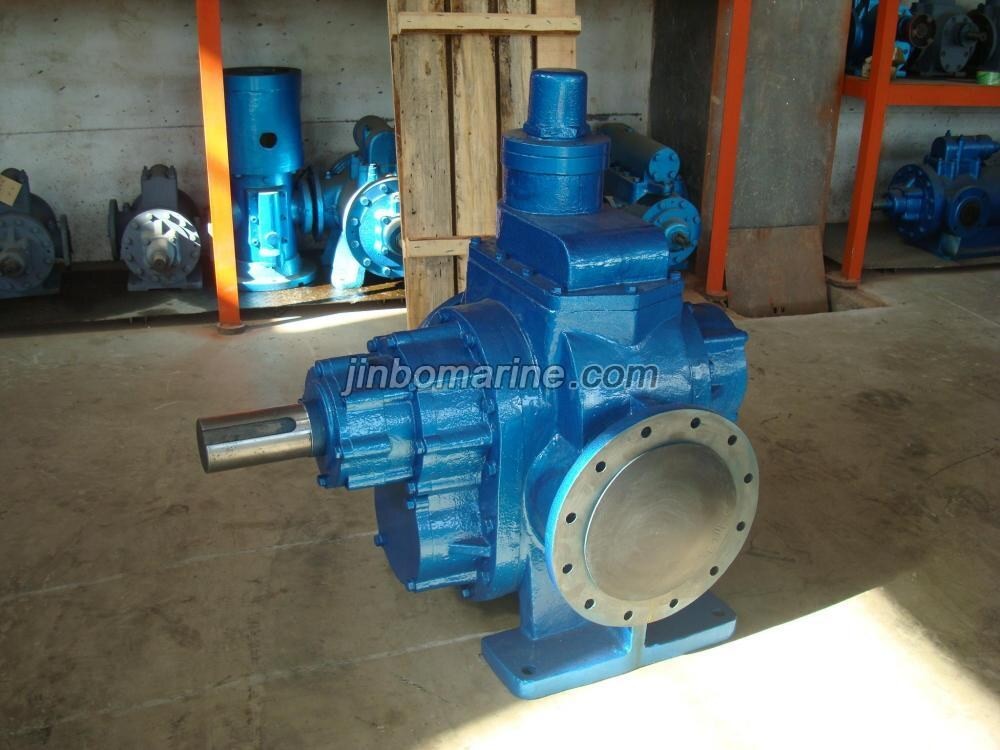

KCB Series Gear Oil Pump
- Category:Gear Pump
- Packing Details:Standard Packing
- Material:cast iron
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Kcb Gear Oil Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
KCB Series Gear Oil Pump
KCB Type Gear Oil Pump used to delivery non-corrosive lubricating oil or similar liquid without Particle and fibers.
Temperature requirements: KCB type is not higher than 210 ℃, the viscosity of 5 x 10-6-1.5 x 10-3 m3 / s (5 to 1500 CST) lubricating oil or other liquid properties similar to lubricating oil. Reduce the pump speed, the viscosity of the medium to 5 x 104 CST.
Main Specification
| Type | Capacity | Speed | Discharge pressure | NPSH | Motor Power | |
| m3/h | L/min | r/min | Mpa | m | KW | |
| KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 1.5 |
| KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 2.2 |
| KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 1.5 |
| KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 2.2 |
| KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 2.2 |
| KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 4 |
| KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 5.5 |
| KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 11 |
| KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 11 |
| KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 18.5 |
| KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 37 |
| KCB-1600 | 95 | 1600 | 980 | 45 | ||
| KCB-1800 | 112 | 1800 | 740 | 0.6 | 7.5 | 55 |
| KCB-2500 | 150 | 2500 | 985 | 75 | ||
| KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 90 |
| KCB-3800 | 230 | 3800 | 989 | 110 | ||
| KCB-4100 | 245 | 4100 | 743 | 0.6 | 8 | 132 |
| KCB-5400 | 325 | 5400 | 989 | 160 | ||
| KCB-5600 | 330 | 5600 | 744 | 0.6 | 8 | 160 |
| KCB-7600 | 460 | 7600 | 989 | 200 | ||
| KCB-7000 | 420 | 7000 | 744 | 0.6 | 8 | 185 |
| KCB-9600 | 570 | 9600 | 989 | 250 | ||
