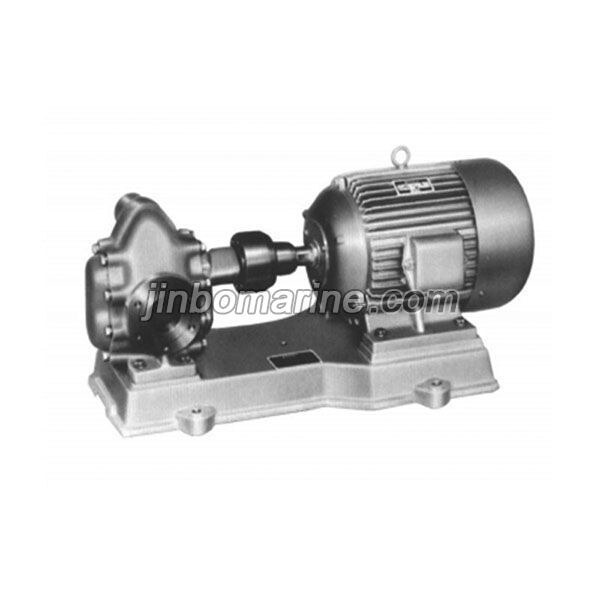

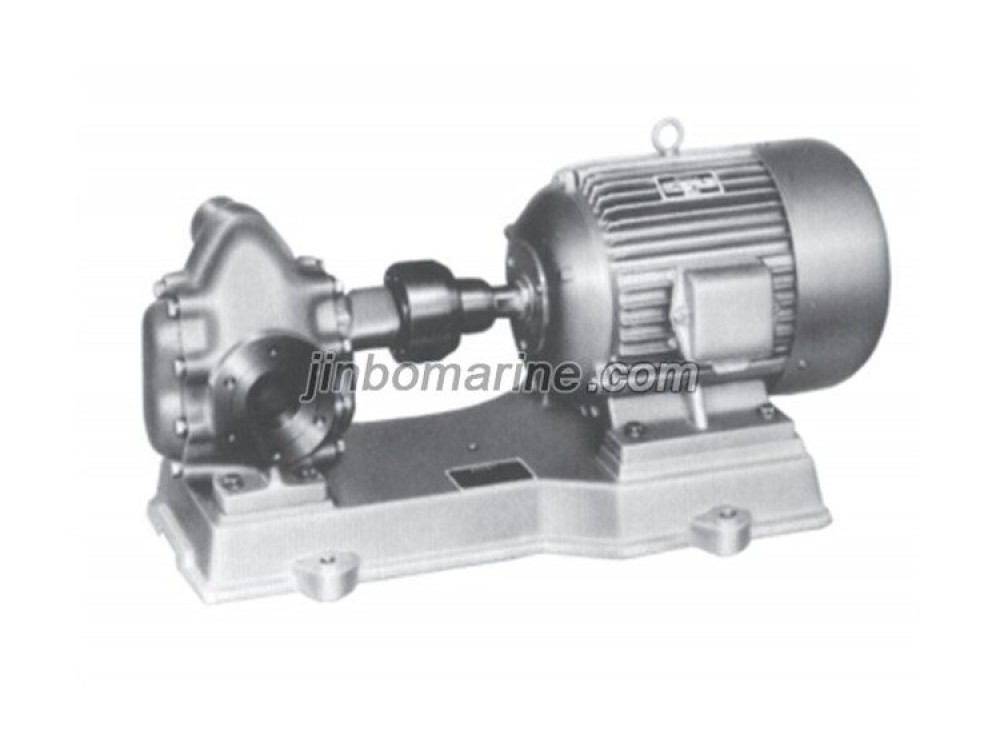

KCB series gear pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

China KCB series gear pump:

It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.

Model Capacity
Q
Exhaust pressure
MPa
Speed
r/min
Power
KCB-18.3 1.1 1.45 1400 1.5
KCB-33.3 2 1.45 1420 2.2
KCB-55 3.3 0.33 1400 1.5
KCB-83.3 5 0.33 1420 2.2
KCB-135 8 0.33 940 2.2
KCB-200 12 0.33 1440 4
KCB-300 18 0.36 970 5.5
KCB-483.3 29 0.36 1470 11
KCB-633 38 0.28 740 11
KCB-960 58 0.28 980 22
KCB-1200 72 0.6 740 37
KCB-1600 96 0.6 985 45
KCB-1800 108 0.6 740 55
KCB-2500 150 0.6 989 75
KCB-2850 171 0.6 743 90
KCB-3800 228 0.6 989 110
KCB-4100 246 0.6 744 132
KCB-5400 324 0.6 989 160
KCB-5600 336 0.6 744 160
KCB-7600 456 0.6 989 200
Also have bigger pumps, pls contact us for more information.
