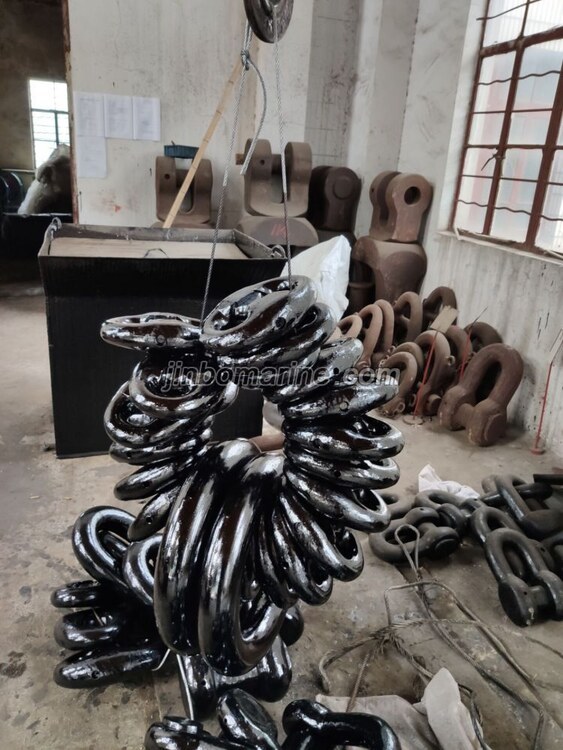

Kenter Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Kenter Shackle:

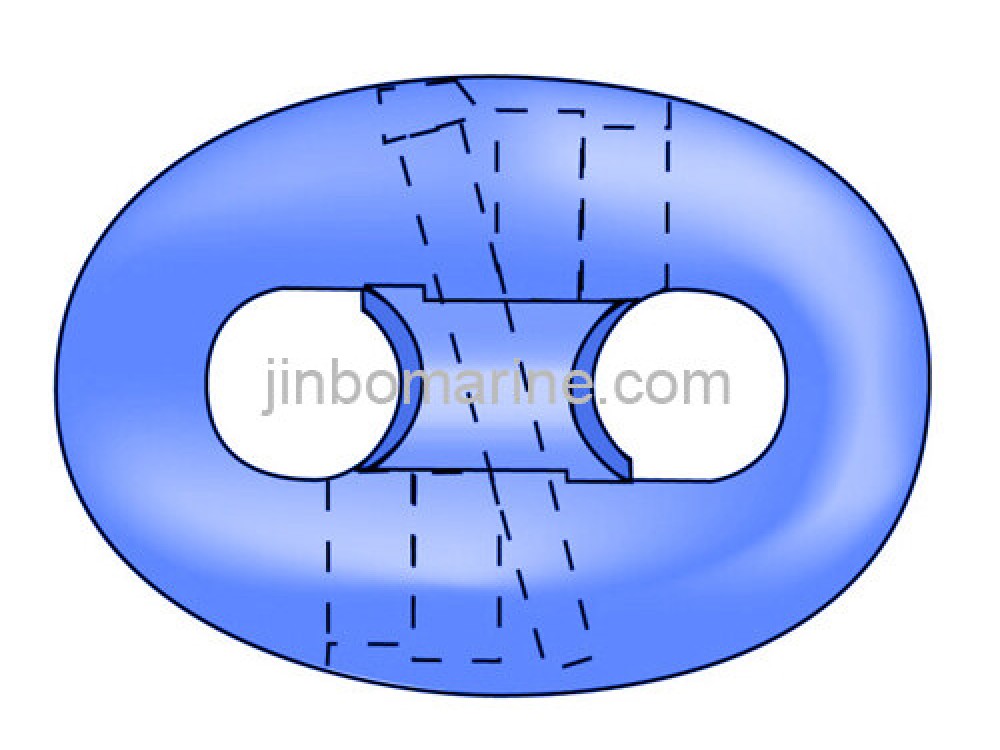

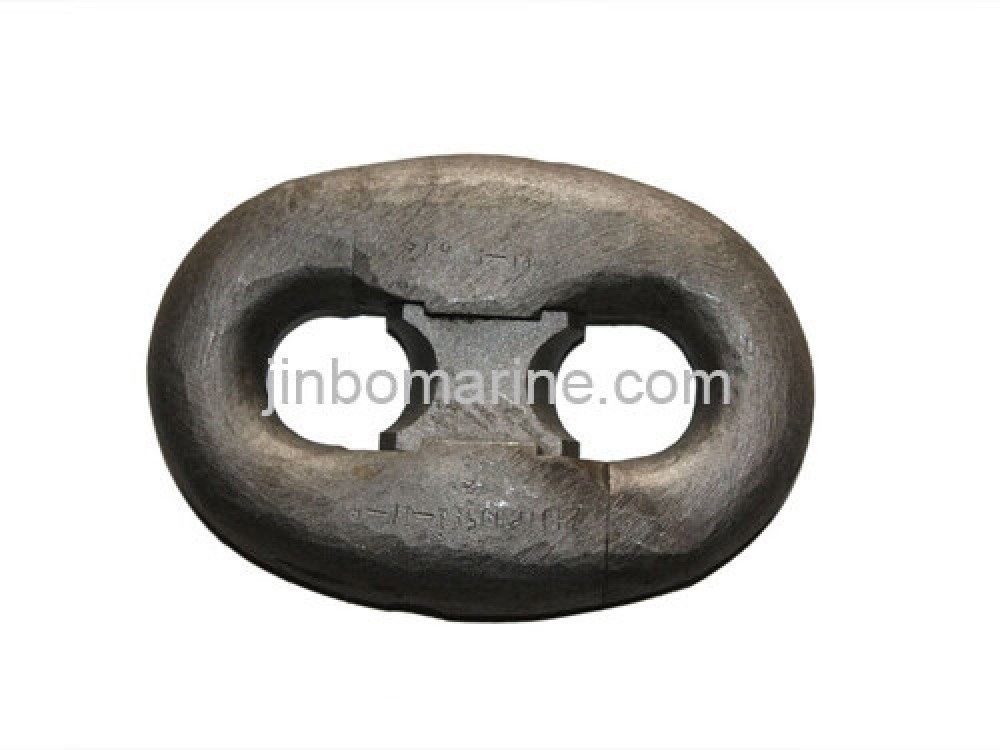

Kenter Shackle is to joining the anchor chains, detachable shackle.

Technical specification:

Grade: U2 or U3

Size: 12.5mm to 162mm

Class Certificate: ABS, LR, BV, DNV, GL, RINA, KR, NK,RS and CCS.

Shackle Weight:

Chain
diameter 		Kenter shackle Joining shackle Anchor shackle Swivel swivel Forerunner Swivel shackle

Type A 		Swivel shackle

Type B
Inches mm kg kg kg kg kg kg kg
43/78 14 0.6 0.6 1.5 1.1 2.4 - -
17/27 16 0.6 0.9 1.5 1.3 3.2 - -
31/45 17.5 0.8 1.3 2.1 1.7 4.2 - -
3/4 19 1.1 1.8 2.4 2.1 5.5 - -
13/16 20.5 1.3 2.2 3.2 2.2 6.1 - -
7/8 22 1.6 2.6 3.9 3.5 8.7 17.5 7.6
15/16 24 2.1 3.4 5.1 4.5 10.9 17.5 9.9
1 25.5 2.5 4.5 6.7 5.7 14.2 37.6 12.5
1 1/16 27 3.3 5.1 8.1 7.2 17.4 37.6 15.7
1 3/16 30 4.1 6.3 10 9 22.3 91 19.4
1 1/4 31.5 5 8.2 11.7 10.1 26.6 91 23.4
1 5/16 33.5 6 9.5 14.2 12.7 32.2 107 28
1 3/8 35 6.8 11.3 16.5 14.9 38.3 107 33.4
1 1/2 38 8.4 13.4 19.5 17.4 42.6 107 39.4
1 9/16 39.5 9.6 15.5 22.8 20.2 50.4 115 46
1 5/8 41.5 11 18.1 26 25.4 59.5 115 53
1 3/4 44.5 12.4 20.2 29.7 26.6 66.5 139 61
1 13/16 46 14.1 23.3 34.3 30.6 76.7 139 70
1 7/8 47.5 16.7 27.5 38 35 89.8 139 79
1 15/16 49 19 31.6 45.2 40.5 101.8 264 89
2 51 20.3 34 50.9 49.5 117.2 264 101
2 1/8 54 23.7 38.5 53.8 50.5 124.9 270 113
2 3/16 55.5 26.7 46 63 55 137.9 270 126
2 5/16 58.5 27.2 46.8 70 64.6 156.4 294 140
2 3/8 60.5 27.7 51 77.5 71.3 171.3 294 155
2 7/16 62 35 59.2 86.3 77.7 187.4 294 171
2 1/2 63.5 38.4 62.7 96.3 83.3 202.2 403 188
2 5/8 66.5 42.3 75 99.6 88.7 223.1 403 206
2 11/16 68 46 76.7 102.6 100 247.5 403 225
2 3/4 69.5 48.7 90 126.2 107.8 269.3 464 246
2 7/8 73 53 95 138.2 125.6 306.2 464 278
3 76 60.7 107 146 143.8 347.8 464 314
3 1/16 77.5 65.5 116 164 154 379.4 749 340
3 3/16 81 75 130 190 188 435.7 749 380
3 5/16 84 90 136 212 198 464 931 424
3 7/16 87.5 96 160 237 215 521.7 931 472
3 9/16 90.5 108 176 245 238 571 1191 522
3 5/8 92 114 196 257 252 616 1191 558
3 3/4 95 128 215 300 269 656 1191 614
3 13/16 97 133 222 335 301 713.1 - 654
3 15/16 100 146 252 353 330 785 1464 717
4 101.5 158 267 378 344 835.5 1464 761
4 1/8 105 160 294 385 387 916 1466 830
4 1/4 108 180 305 420 428 991 1466 879
4 3/8 111 198 325 463 448 1061 1830 980
4 1/2 114.5 204 345 485 460 1116 1830 1062
4 5/8 117.5 225 365 528 475 1177 1830 1147
4 3/4 120.5 250 400 570 547 1332 - -
4 9/16 122 263 425 602 649 1480 - -
4 7/8 124 290 465 632 680 1550 - -
5 127 312 499 679 729 1663 - -
5 1/8 130 333 536 729 784 1797 - -
5 1/4 133.5 350 561 762 820 1862 - -
5 3/8 136.5 392 627 852 912 2065 - -
5 5/8 143 436 698 949 1012 2315 - -
5 3/4 146 485 774 1053 1124 2578 - -
6 152.5 537 856 1164 1238 2839 - -
6 2/11 157 591 943 1283 1360 3102 - -
6 3/8 162 651 1036 1410 1490 3401 - -
