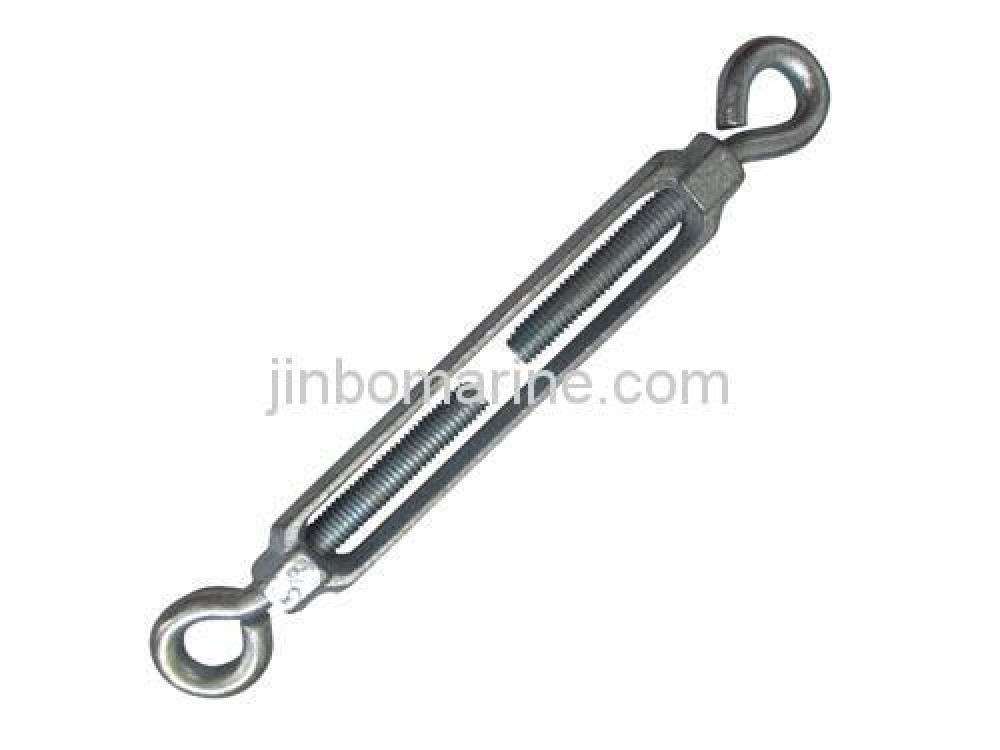

Korean Turnbuckles

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Turnbuckle usually Forged, Free forged and Casting.

The surface of turnbuckle original color, galvanised,hot galvanized

Material is 45# Steel, Q235

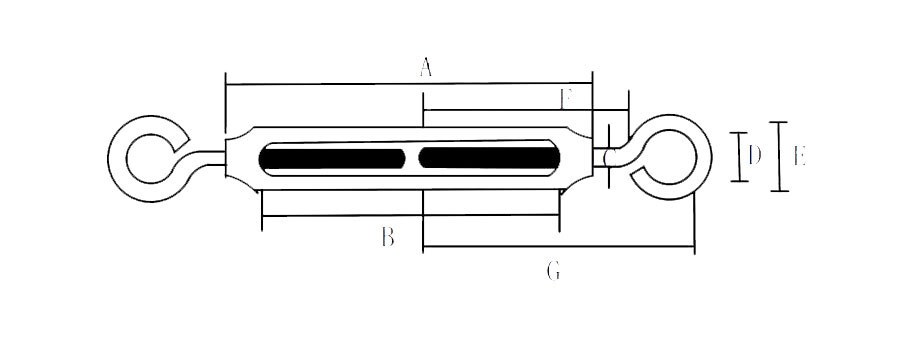

Size Table

SIZE inch A B C D E F G Weight kg
5/16 90 70 8 11 22 65 95 0.145
3/8 160 130 9 17 30 85 130 0.345
1/2 190 155 10 20 30 95 150 0.56
1/2(L) 255 215 10 30 35 140 190 0.79
5/8 250 200 15 25 45 130 190 1.12
5/8(L) 350 300 15 30 45 180 240 1.54
3/4 250 200 20 35 45 140 210 1.67
3/4(L) 300 245 20 40 55 170 240 2.05
7/8 330 260 22 31 62 170 240 2.565
1 350 280 25 36 66 180 250 3.655
