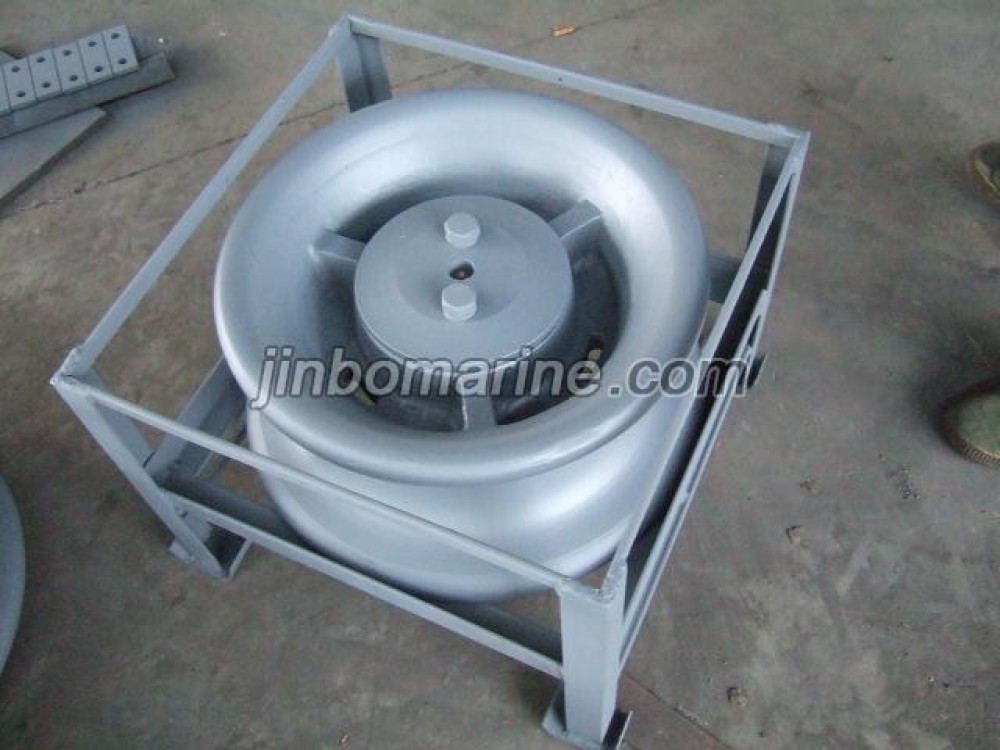

Korean Warping Roller
- Category:Warping Roller
- Material:cast steel,cast iron
- Standards:Korean
- Certificate:ABS , BV, CCS, mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Korean Warping Roller.pdf
Details
China Korean Warping Roller:
It is used for bollard cable leading of
ships,good wear and corrosion resistance to grant a long service time.
Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.
Delivery time:7-15 days after order be confirmed.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning etc.

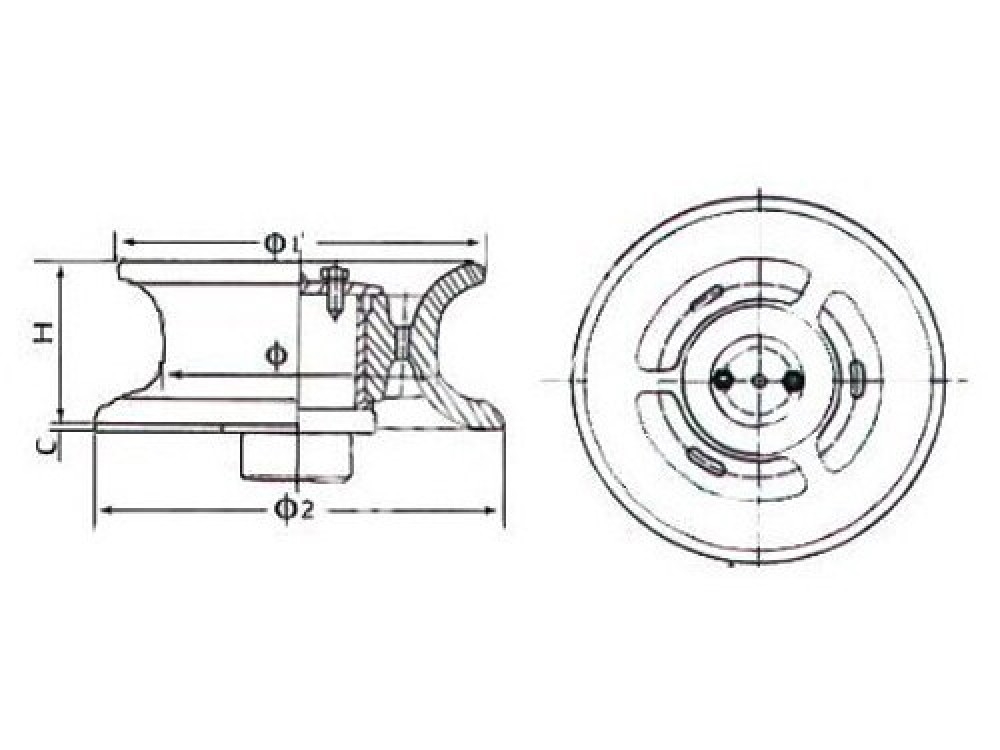

KOREAN WARPING ROLLER |
||||||
Product No. |
NOMINAL DIA.(mm) |
Φ(mm) |
Φ1(mm) |
Φ2(mm) |
H(mm) |
c(mm) |
KWR-001 |
150 |
150 |
216 |
240 |
137 |
5 |
KWR-002 |
200 |
200 |
280 |
310 |
157 |
5 |
KWR-003 |
250 |
250 |
350 |
380 |
177 |
6 |
KWR-004 |
300 |
300 |
400 |
440 |
197 |
7 |
KWR-005 |
350 |
350 |
460 |
500 |
217 |
7 |
KWR-006 |
400 |
400 |
520 |
560 |
237 |
7 |
KWR-007 |
450 |
450 |
590 |
630 |
257 |
7 |
KWR-008 |
500 |
500 |
660 |
700 |
277 |
7 |
