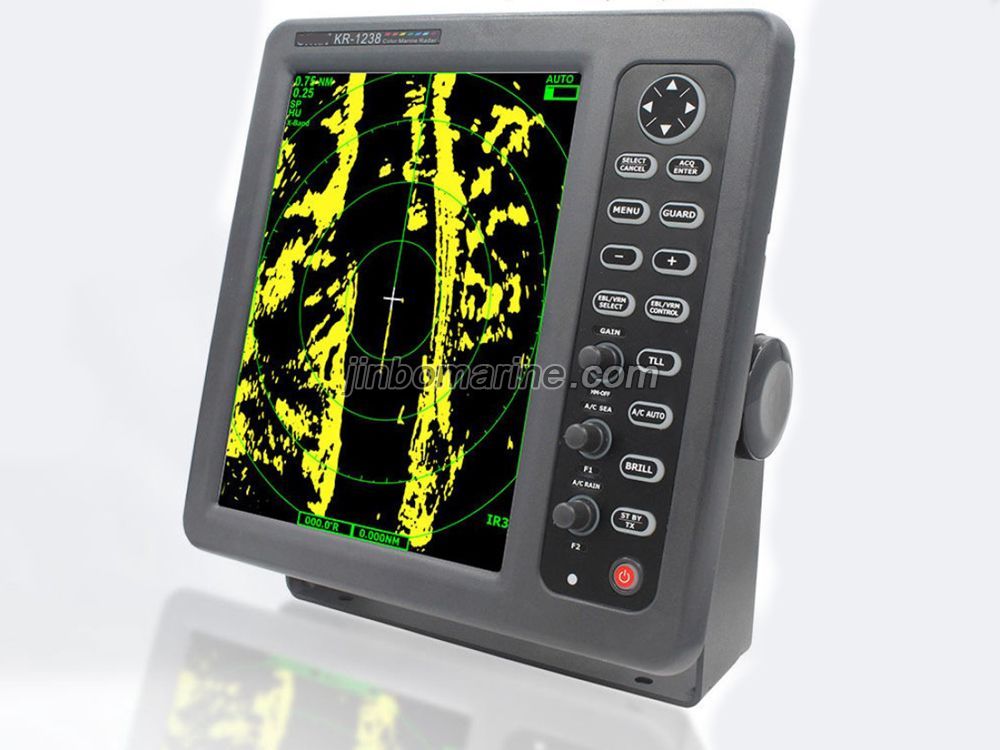

12 inches Color LCD Marine Radar/ with AIS Display and Target Tracking (APRA)
MODEL: KR-1238/1268
FEATURE:
1. Adjustable DATA FIELD, more flexible
2. The system software can be updated via USB
3. AIS display function
4. Multi color selection for target and background
5. Rugged die-cast, waterproof housing
6. Target tracking (TT) function, can track and trace up to 20 targets
7. User-programmable function keys
8. Automatic optimization of radar picture
9. Newly enhanced performance
10. Head-up, Course-up, and North-up representation mode
11. Economy Mode, Guard Zone Alarm and Watch Mode
SPECIFICATION OF KR-1238/1268
Antenna Radiator
1. Type:
KR-1238: 55cm hybrid array
KR-1268: 120cm hybrid array
2. Length and Rotation speed:
KR-1238: Radome 60cm (KRA-1004) 24RPM
KR-1268: Open 120cm (KRA-2004) 24RPM
3. Wind load: Relative wind 100 knots
4. Beamwidth:
KRA-1004: Hor: 4° Vert: 25°
KRA-2004: Hor: 1.9° Vert: 22°
