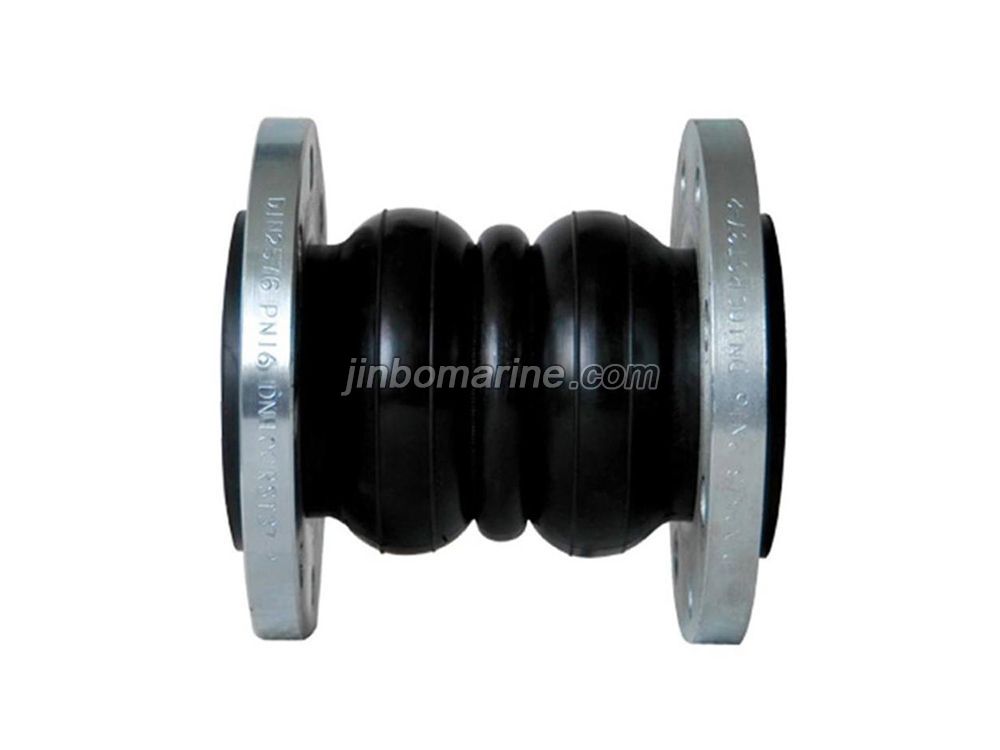

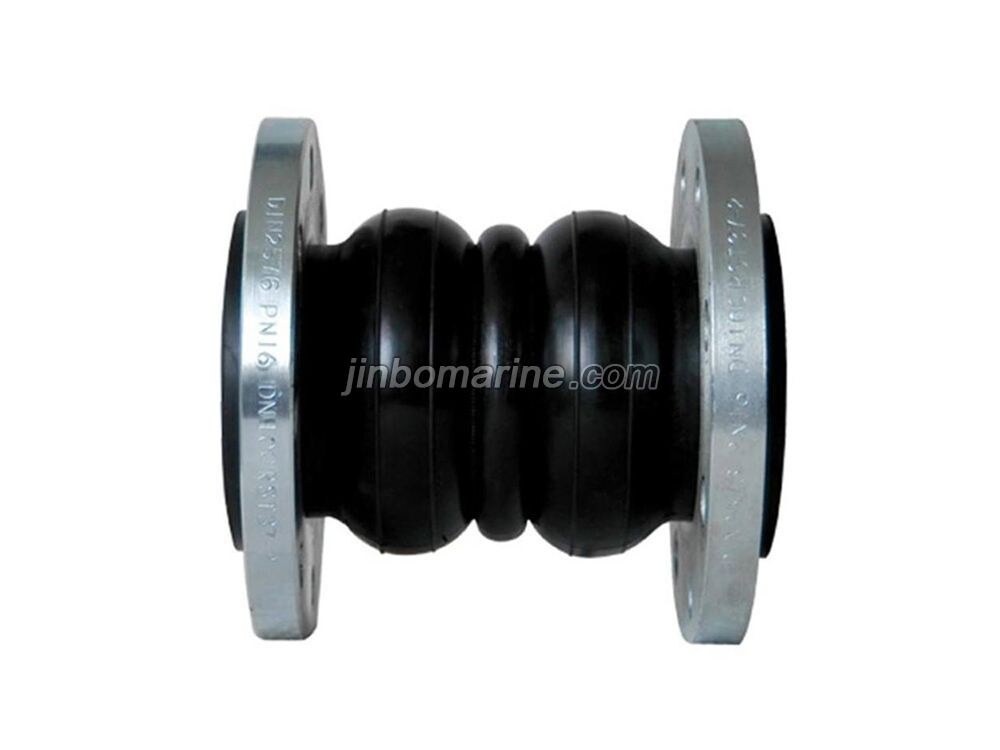

KXT Double Ball Rubber Expansion Joint
- Category:Marine Expansion Joint
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China KXT Double Ball Rubber Expansion Joint:
KXT double ball rubber expansion joint is small in volume, light in weight, good in elasticity, and convenient in installation and maintenance.
It can produce lateral, axial and angular displacement when the joint is installed. It is not restricted by the pipe unfold and the flange is not parallel.
KXT double ball rubber expansion joint work to reduce structural transmission of noise, vibration absorption ability, our company independently developed the inner seamless high pressure rubber joint in high temperature, acid and alkali resistance, oil pipeline more effectively prevent erosion of corrosive medium on the inner wall of the rubber joint, improving the service life.
KXT Double Ball Rubber Expansion Joint Main Specifications
Nominal Diameter | Length | Flange | Bolt | Bolt hole | Bolt hole circle | Axial displacement | Lateral | Deflection | ||
Thickness | Quantity | Diameter | Diameter | Stretching | Compression | Displacement | Angle | |||
(mm) | (Inch) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (a1 +a2 ) | ||
50 | 2 | 165 | 18 | 4 | 17.5 | 125 | 30 | 50 | 45 | 35° |
80 | 3 | 175 | 20 | 8 | 17.5 | 160 | 35 | 50 | 45 | 35° |
100 | 4 | 225 | 22 | 8 | 17.5 | 180 | 35 | 50 | 40 | 35° |
125 | 5 | 225 | 24 | 8 | 17.5 | 210 | 35 | 50 | 40 | 35° |
150 | 6 | 225 | 24 | 8 | 22 | 240 | 35 | 50 | 40 | 35° |
200 | 8 | 325 | 24 | 8 | 22 | 295 | 35 | 50 | 40 | 35° |
250 | 10 | 325 | 26 | 12 | 22 | 350 | 35 | 60 | 35 | 30° |
300 | 12 | 325 | 28 | 12 | 22 | 400 | 35 | 60 | 35 | 30° |
350 | 14 | 350 | 28 | 23 | 23 | 460 | 35 | 60 | 40 | 25° |
400 | 16 | 350 | 30 | 25 | 25 | 515 | 35 | 50 | 40 | 25° |
450 | 18 | 350 | 30 | 25 | 25 | 565 | 35 | 50 | 40 | 25° |
500 | 20 | 350 | 32 | 25 | 25 | 620 | 35 | 50 | 35 | 25° |
600 | 30 | 400 | 36 | 20 | 30 | 725 | 35 | 50 | 30 | 25° |
1000 | 40 | 450 | 44 | 34 | 34 | 1160 | 35 | 50 | 30 | 25° |
1200 | 48 | 500 | 48 | 41 | 41 | 1380 | 350 | 50 | 30 | 25° |
