KYDR203CD-23 Fuel Oil Purifier

Request a Quote Not what you need, please send your RFQs via Email.

Details

Main technical data for separator

1. Bowl rotary speed: 6930 r/min

2. Speedometer rotary speed: 79—83r/min (50HZ)(KYDR203CD-23)

95—102r/min (60HZ)(KYDR203CD-2360)

95—102r/min (60HZ)(KYDR303CD-2360)

3. Sludge chamber in bowl: 1.2L

4. Starting time: ≤3min

5. Stop time(application of brake): —2min

6. Motor type: Y100L1-4-H-B5

7. Motor power: 2.2kW

8. Dirty oil suction intensity: 0.04MPa

9. Clarified oil paring disc outlet pressure:0.3MPa

10.Overall dimensions: (LXBXH)

With AC marine motor 882X530X783

With DC marine motor 1017X530X783

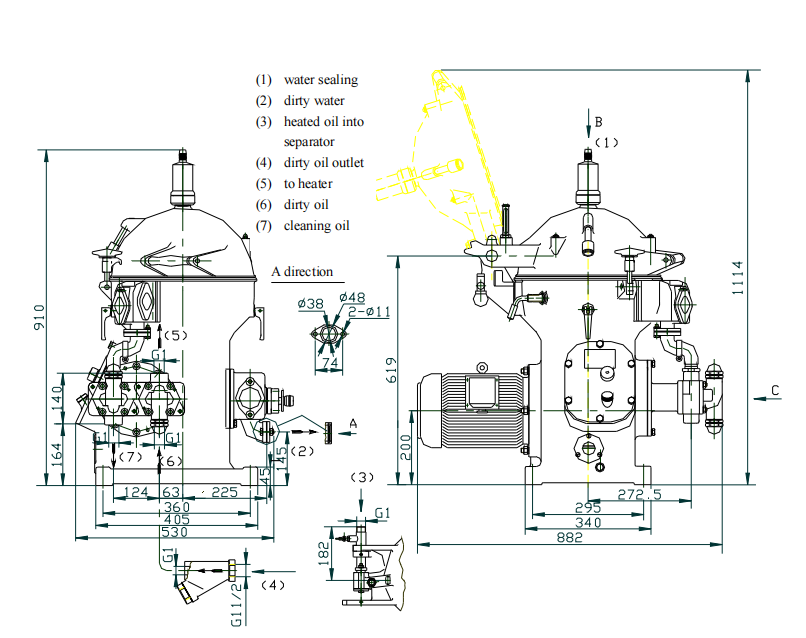

Overall dimensions and installation sizes
