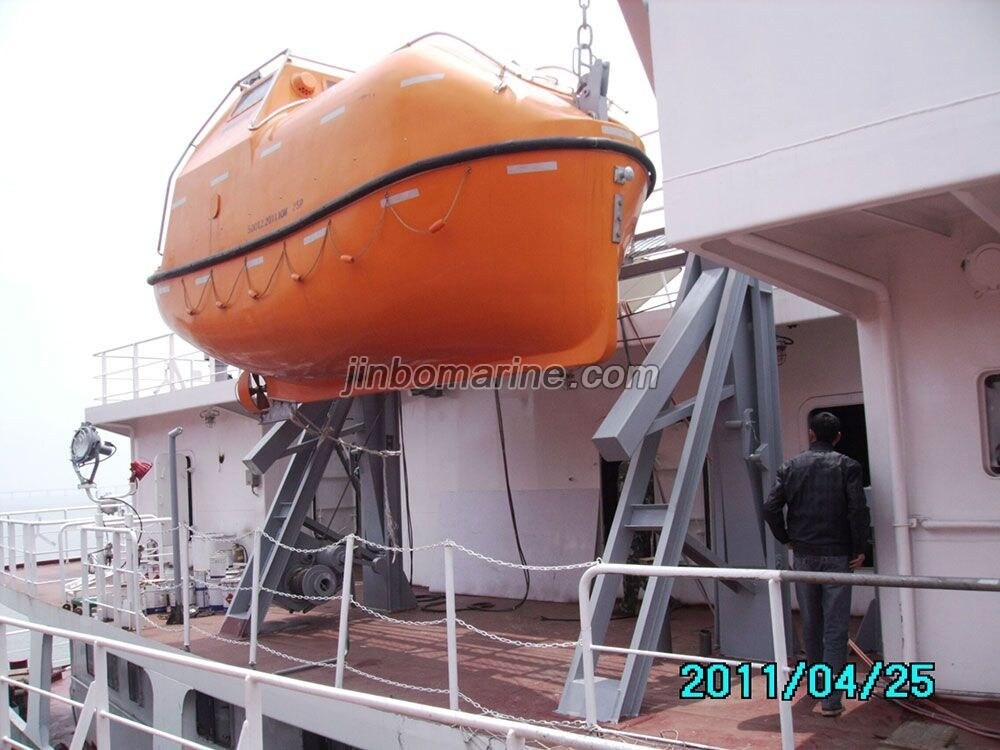

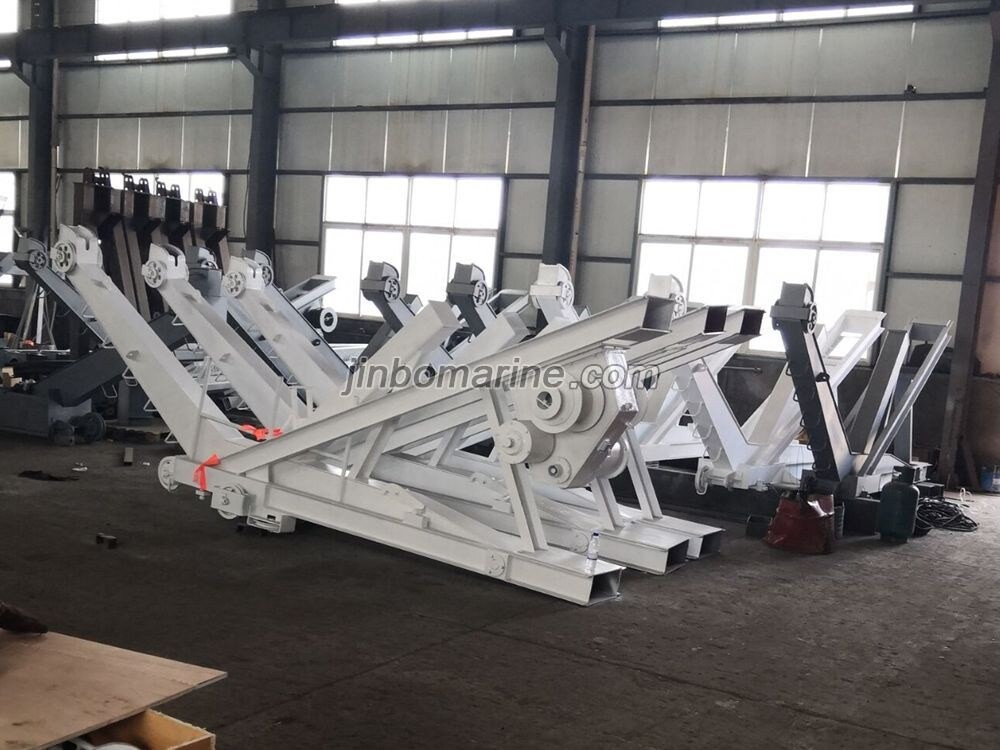

L65 Gravity Luffing Arm Type Davit
- Category:Life boat & Rescue Boat
- Material:steel
- Certificate:CCS certificate.
- Delivery Time:About 40 to 60 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China L65 Gravity Luffing Arm Type Davit:
Conform to the specifications
MSC.47(66)‐1996 Amendments Of The International Convention For The Safety Of Life At Sea 1974 And
MSC.216(82)
The davit to be designed for embarkation when the boat in stowed position. The boat may be levered ,
without stopping in a continuous movement at a minimum time.
With CCS Certificate.
Type#
|
Description
|
Max.
working load |
Min.
working load |
Max.
recovering load |
Dia.of
steel wire rope |
Weight
|
Working
Angle |
L25
|
Gravity
luffing arm type davit |
25KN
|
13KN
|
17KN
|
13mm
|
2270kg
|
≤20 list
≤10 trim |
L55
|
55KN
|
20KN
|
35KN
|
14mm
|
2870kg
|
≤20 list
≤10 trim |
|
L65
|
65KN
|
25KN
|
42KN
|
18mm
|
4298kg
|
≤20 list
≤10 trim |
