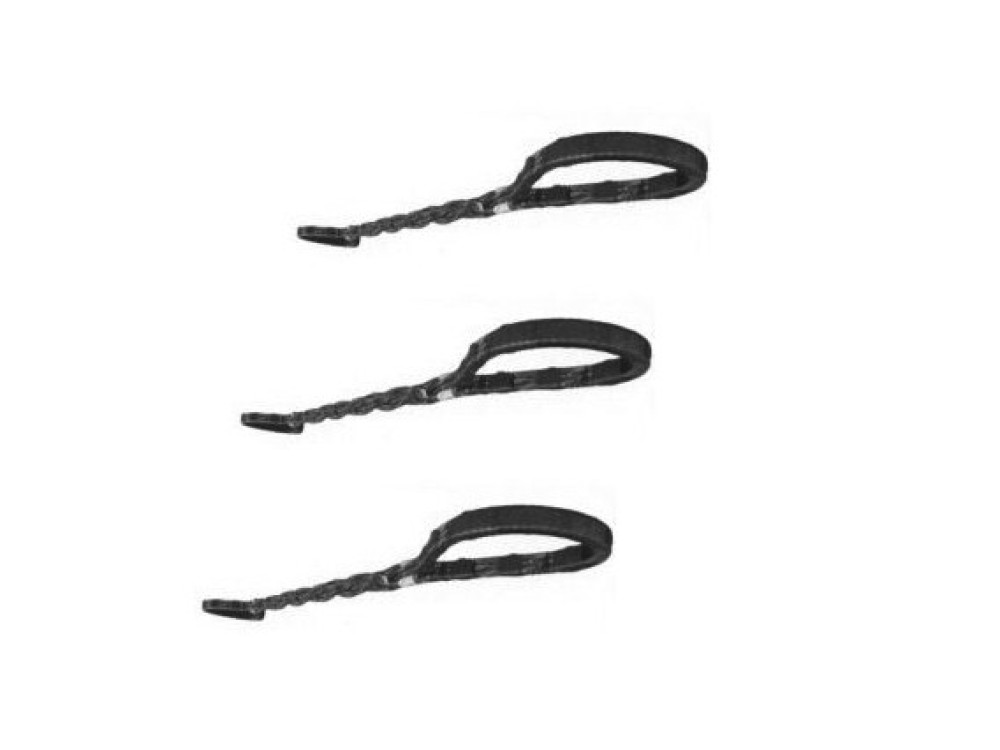

Large Diameter Cable-laid Slings

  • Category:
  • Material:Galvanized Steel Wire Rope
  • Standards:GB/T16271-1996.
  • Packing Details:Standard Export Packaging
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Large Diameter Cable-laid Slings:


Nominal dia.
(d)(mm) 		Main rope dia
(mm) 		Core rope dia
(mm) 		Breaking load
 Workong load limit Approx.weight
（kg/m）
(kN) (t) (kN) (t) 15.62
70 22 26 1460 149 304 31 18.54
76 24 28 1736 177 373 38 21.67
82 26 30 2039 208 451 46 25.61
90 28 34 2363 240 539 55 29.24
96 30 36 2713 277 647 66 33.15
102 32 38 3089 315 756 77 37.28
108 34 40 3486 355 882 90 41.69
114 36 42 3905 398 1022 104 46.32
120 38 44 4363 445 1182 120 51.18
126 40 46 4838 493 1360 139 56.27
132 42 48 5314 542 1551 158 67.24
144 46 52 6394 652 2022 206 73.13
150 48 54 6955 709 2295 234 78.9
156 50 56 7517 767 2506 256 85.59
162 52 58 8165 833 2722 278 92.17
168 54 60 8770 894 2923 298 98.96
174 56 62 9461 965 3154 322 106.28
180 58 64 10152 1035 3384 345 121.12
192 62 68 11578 1181 3859 394 136.79
204 66 72 13133 1339 4378 446 149
216 68 80 13954 1432 4651 474 171.59
228 74 80 16502 1683 5500 560 184.97
240 76 88 17410 1775 5803 592 205.03
252 80 92 19310 1969 6437 656 225.03
264 84 96 21254 2167 7085 722 225.2
278 88 100 23328 2379 7776 793 246.83
288 90 108 24408 2489 8136 830 265.53
300 98 108 26525 2705 8842 902 294.38
312 100 112 28771 2934 9591 978 319.14
336 108 120 32616 3326 10866 1108 383.31
360 116 128 37627 3837 12542 1280 441.3
384 124 136 42984 4383 14328 1460 503.59
408 130 148 47088 4802 15696 1600 560.43
432 138 156 53136 5418 17712 1808 629.93
456 146 164 56592 5771 18864 1924 705.58
