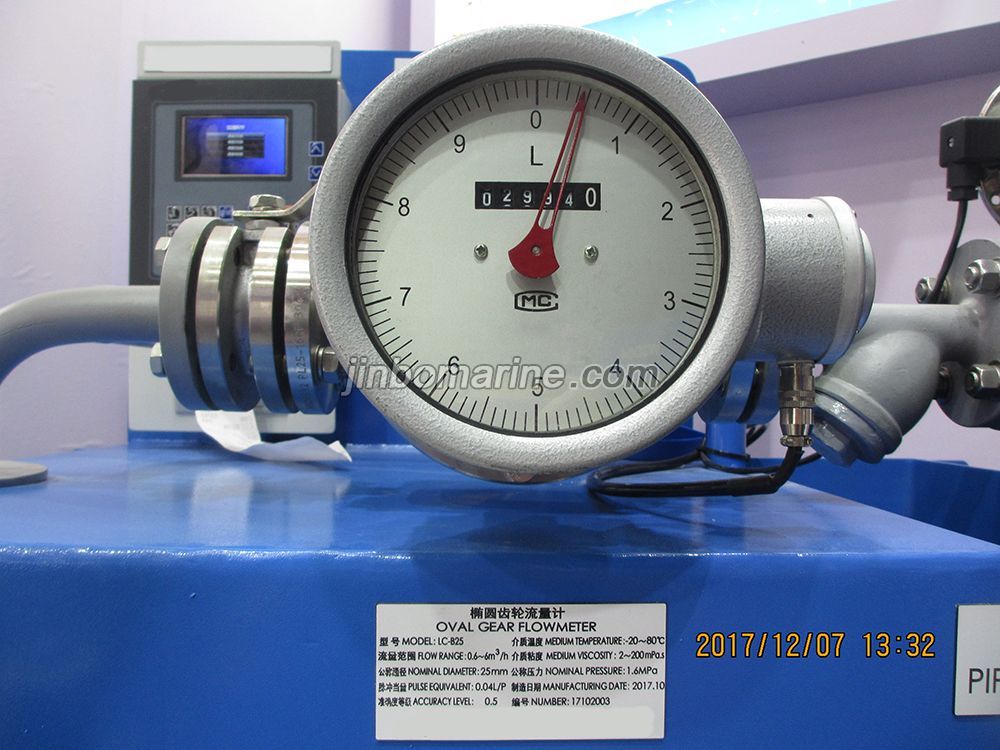

LC-B25 Stainless Steel Ellipse Gear Flowmeter

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

LC Type Oval Gear Flowmeter (also can be named as ellipse gear flowemeter) is a positive displacement flow meter which can measure the liquid flow amount through the pipeline, it is suitable for marine, chemical,petroleum,medicine, electric power, metallugry and food iindustry etc.

Main Technical specification:

Material: cast iron, cast steel, stainless steel.

Nominal pressure:

1.6Mpa (cast iron ) ,

2.5, 4.0, 6.3Mpa (cast steel)

1.6, 2.5Mpa(stainless steel)

Suitable for the liquid temperature which is between -10 to 100 centigrade.

Accuracy: 0.5 , 0.2

Nominal diameter: 10 to 200mm.
