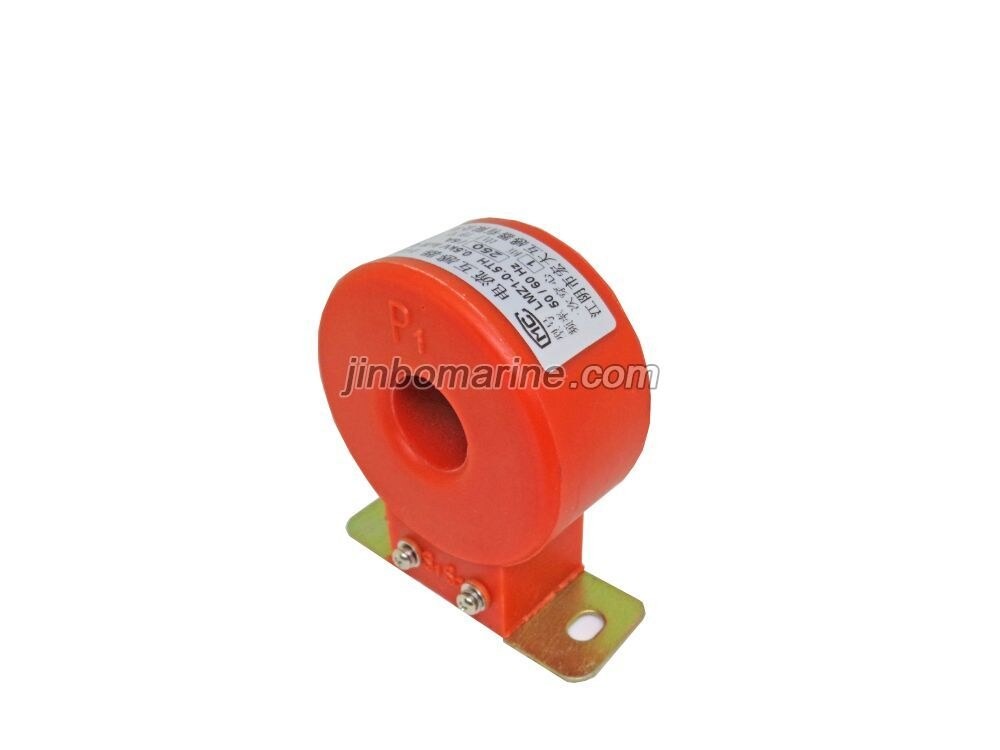

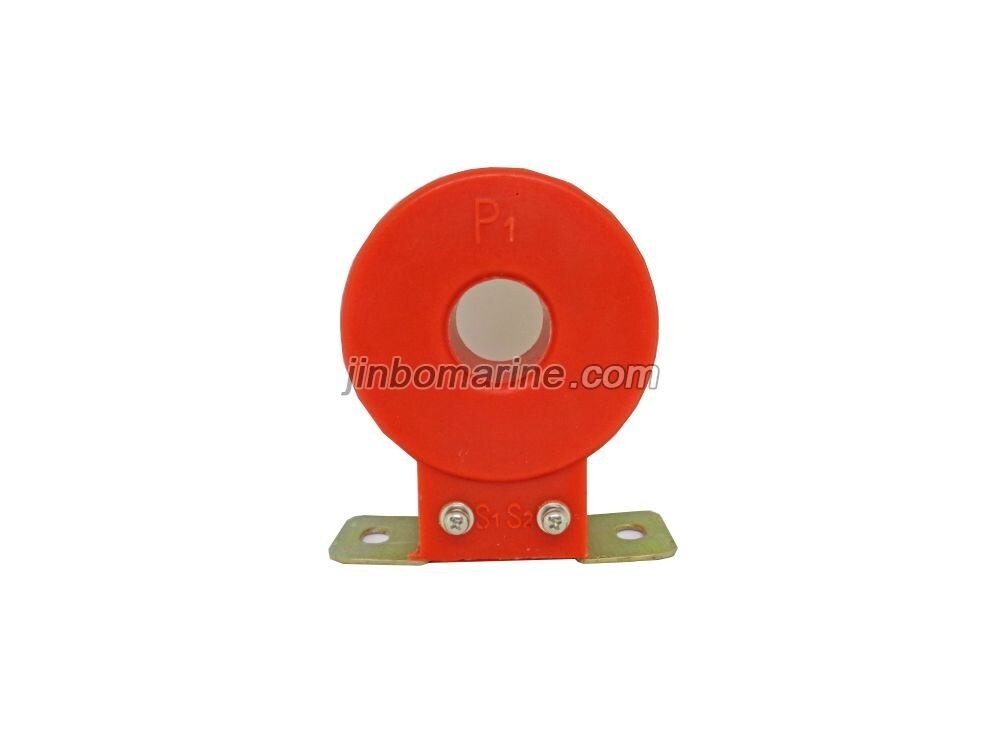

LMZJ1-0.5TH 800/5A Marine Current Transformer

Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current to small current, its function is used to measure or to protect system is mainly to high voltage or high current in proportion to transform into standard low voltage (100 v) or small current (5 a or 1 a, shall mean rating), in order to achieve the standardization of measuring instrument to protect equipment and automatic control equipment, miniaturization transformer can also be used to separate the high voltage system at the same time, in order to ensure personal and equiment safety.

1.Application: mainly used for electric power, electrical line voltage measurement,overload protection, intercept signal.
2.Working temperature: -40℃~+40℃
3.Rated voltage: 0..5KV
4.Rated frequency: 50/60 HZ
5.Rated primary voltage:5~8000kv
6. Rated secondary voltage: 1~5A
7.Rated secondary load: 2.5~50VA
8.Accurate level: 5P,10P
9:Standard: GB20840, IEC61869

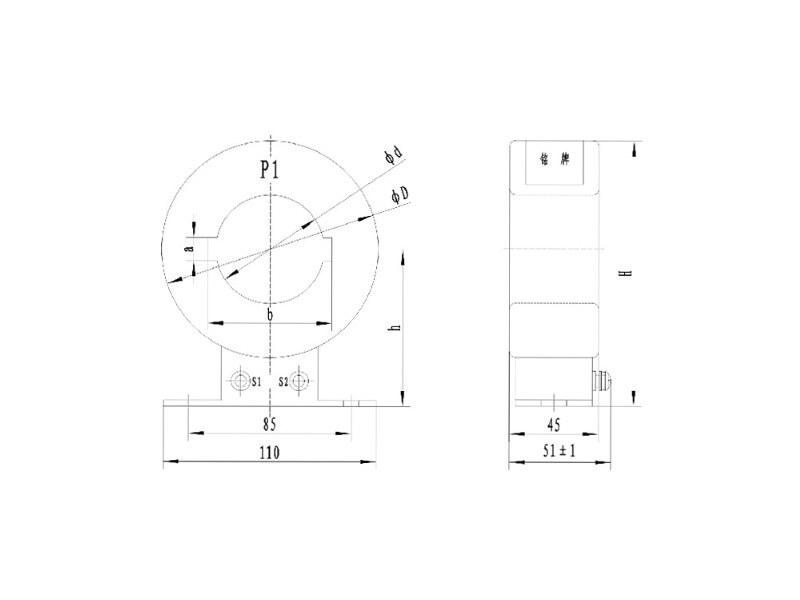

Rated Primary Current	Size
	H	h	ΦD	Φd	a	b
200/5A	117	71	Φ92	Φ30
300-400/5A	121	73	Φ96	Φ45(35)
500-600/5A	132	79	Φ106	Φ40	9	54
800	138	82	Φ112	Φ50	12	64
