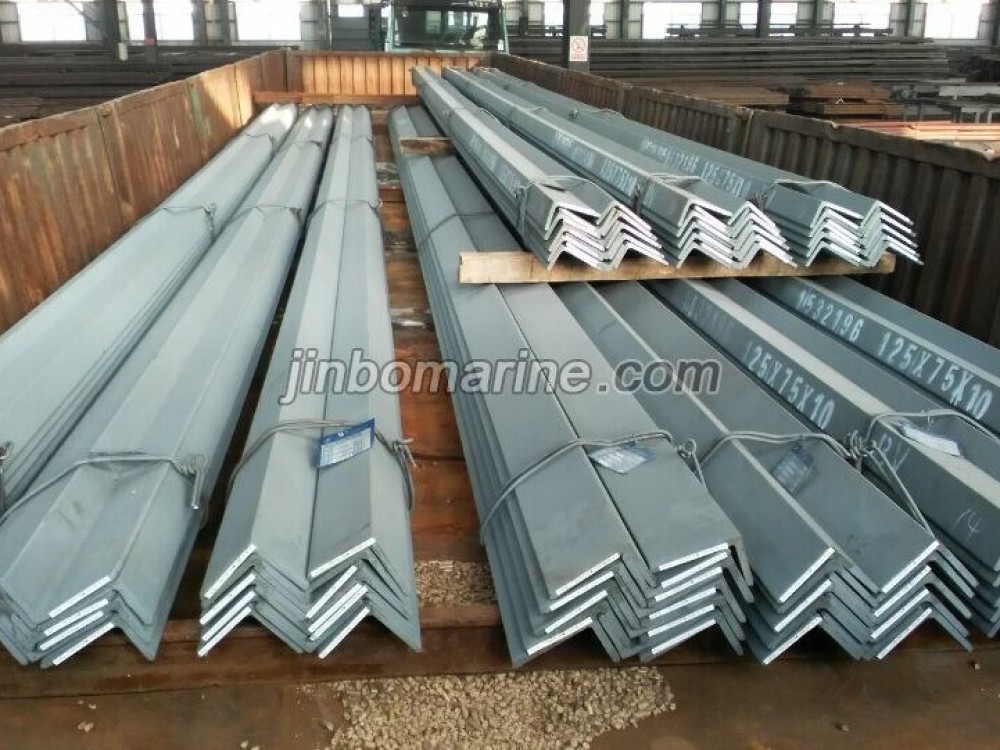

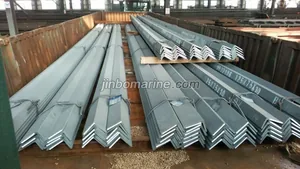

LRA Hot Rolled Unequal Angle Bar
- Category:Shipbuilding Steel
- Material: A,AH32, AH36, B
- Standards: JIS G3129-2008
- Certificate:CCS, ABS, GL, LR, DNV, BV, RINA, NK and KR
- Supply Ability:600Ton each Month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China LRA Hot Rolled Unequal Angle Bar:
Hot Rolled Unequal Angle Bar is used for ship building
Grade: A, B, AH32, AH36, D, DH32, DH36
Certificate: LR,ABS, GL, ABS, DNV, BV, RINA, NK, KR and CCS
Standard: JIS G3129-2008

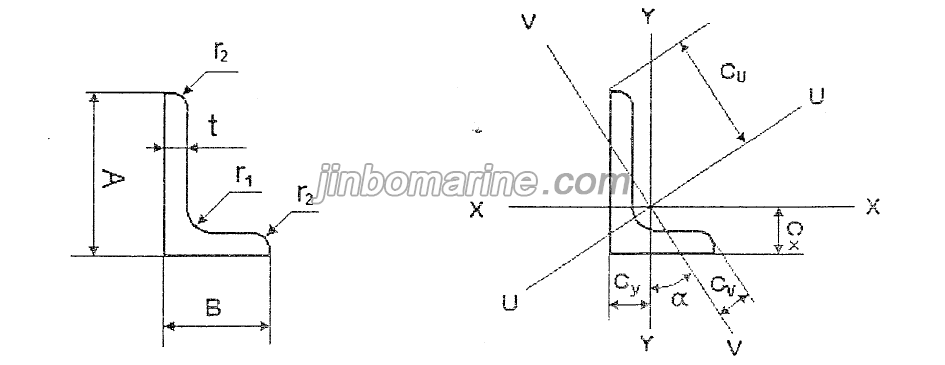

Angle Steel Specification
| Size(mm) | Weight(Kg/M) | Size(mm) | Weight(Kg/M) |
| 75x50x6 | 5.67 | 125x75x10 | 15.00 |
| 75x50x8 | 7.35 | 125x75x12 | 17.80 |
| 100x75x6 | 8.04 | 150x75x8 | 15.90 |
| 100x75x7 | 9.32 | 150x75x10 | 19.50 |
| 100x75x8 | 10.60 | 150x90x8 | 13.12 |
| 100x75x9 | 11.80 | 150x90x10 | 16.4 |
| 100x75x10 | 13.00 | 150x90x12 | 18.2 |
| 100x75x12 | 15.4 | 150x90x15 | 21.5 |
| 125x75x7 | 10.7 | 150x100x8 | 21.2 |
| 125x75x8 | 12.2 | 150x100x10 | 26.00 |
| 125x75x9 | 13.6 | 150x100x12 | 30.80 |
