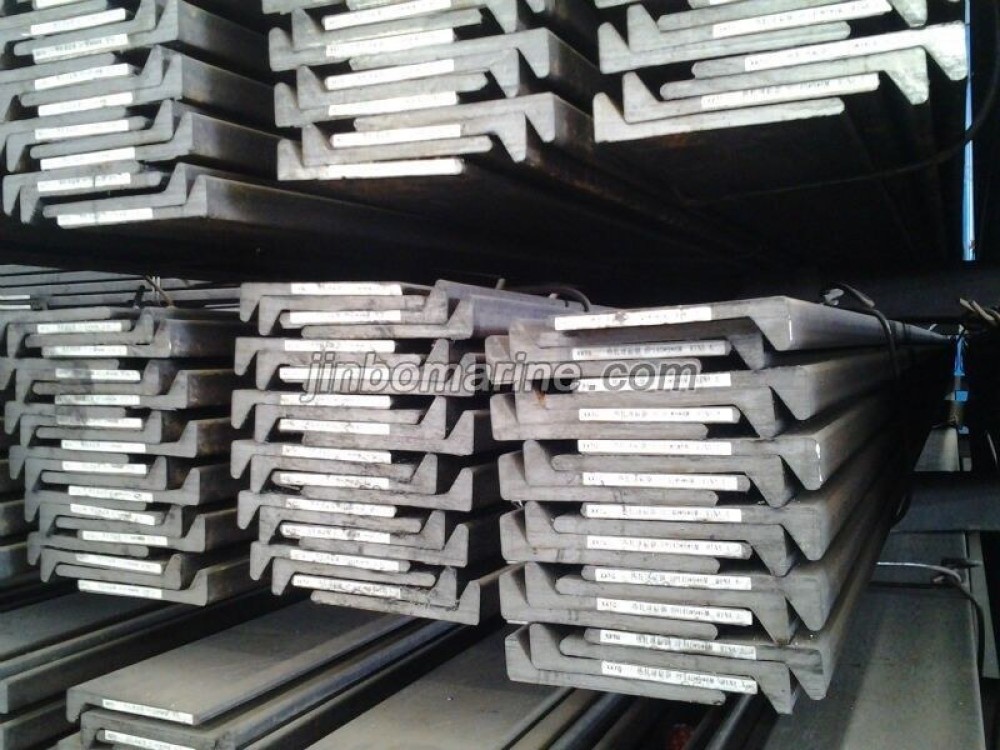

LRA Shipbuilding Bulb Flat
- Category:Shipbuilding Steel
- Material: A,AH32, AH36,
- Certificate:CCS, ABS, GL, LR, DNV, BV, RINA, NK and KR
- Supply Ability:600Ton each Month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China LRA Shipbuilding Bulb Flat:
Grade: A AH32 AH36
Certificate: LR, ABS, DNV, GL, BV, KR,NK and CCS

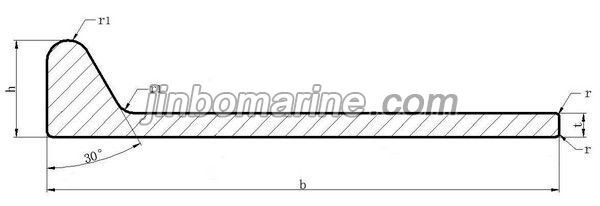

Bulb Flat Steel Specification
| Size(mm) | b | h | t |
Theoretical
weight (kg/m) |
| 80*5 | 80 | 19 | 5 | 4.25 |
| 100*6 | 100 | 21.5 | 6 | 6.08 |
| 100*7 | 100 | 22.5 | 7 | 6.86 |
| 120*6 | 120 | 23 | 6 | 7.32 |
| 140*7 | 140 | 26 | 7 | 9.75 |
| 140*8 | 140 | 27 | 8 | 10.85 |
| 160*7 | 160 | 29 | 7 | 11.46 |
| 180*8 | 180 | 33 | 8 | 14.8 |
| 200*9 | 200 | 37 | 9 | 18.57 |
| 200*10 | 200 | 38 | 10 | 20.14 |
| 220*10 | 220 | 41 | 10 | 22.77 |
| 220*11 | 220 | 42 | 11 | 24.5 |
| 240*10 | 240 | 44 | 10 | 25.5 |
| 240*11 | 240 | 45 | 11 | 27.39 |
| 260*10 | 260 | 47 | 10 | 28.35 |
| 280*11 | 280 | 51 | 11 | 33.5 |
| 280*12 | 280 | 52 | 12 | 35.7 |
| 300*11 | 300 | 54 | 11 | 36.7 |
| 320*12 | 320 | 58 | 12 | 42.6 |
| 320*13 | 320 | 59 | 13 | 45.09 |
| 340*13 | 340 | 62 | 13 | 48.86 |
| 370*13 | 370 | 66.5 | 13 | 54.7 |
| 370*14 | 370 | 67.5 | 14 | 57.6 |
| 400*14 | 400 | 72 | 14 | 63.9 |
| 400*15 | 400 | 73 | 15 | 67.1 |
| 430*19 | 430 | 81.5 | 19 | 87.4 |
| 430*20 | 430 | 82.5 | 20 | 90.8 |
