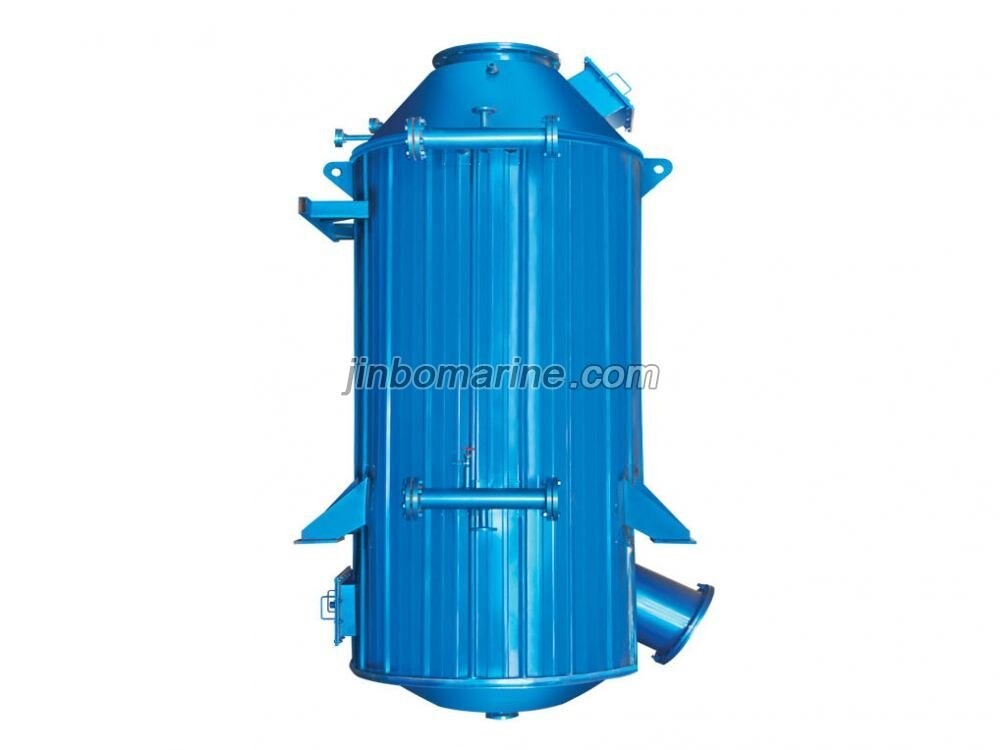

LRF Marine Exhaust Thermal Oil Boiler
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product description:

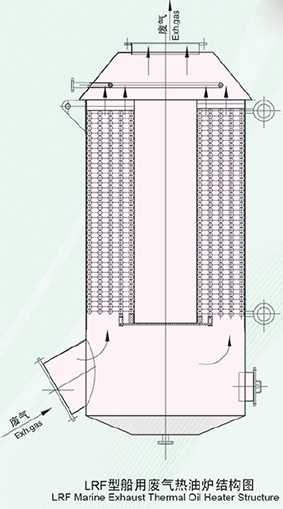

LRF Marine Exhaust Thermal Oil Heater, flue gas pipe is below the normal water level, avoiding oxygen corrosion and stress corrosion caused by temperature change at the steam-water interface, and improving the reliability and service life of the boiler.
Product characteristics:
1. The flue gas pipe is below the normal water level, which avoids the oxidation corrosion caused by humidity near the water level and the corrosion caused by the change of temperature and stress during operation.
2. The boiler has a cleaning door and a lower ash-water discharge pipe, which makes the boiler easy to maintain.
3. Dry operation in case of emergency.
Product advantages:
1. LRF vertical flue gas boiler can be designed according to the data of main engine exhaust gas and evaporation requirement.
2. The specific size and orifice of the boiler can be designed according to the actual needs of the users.
Technical data:
Design Pressure (Mpa) |
Design Thermal Oil
Temperature (℃) |

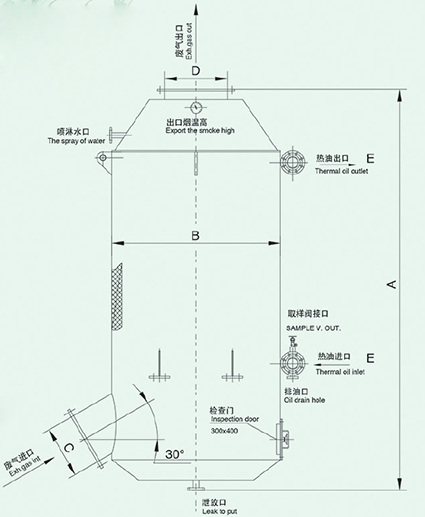

Medium Volume Inside The Heater(m3) | Dimension(mm) | ||||
A | B | C | D | E | |||
0.8 | 220 | 0.14 | 2300 | Φ1100 | DN300 | DN300 | DN65 |
220 | 0.21 | 3100 | Φ1200 | DN400 | DN400 | DN80 | |
220 | 0.25 | 3600 | Φ1300 | DN400 | DN400 | DN80 | |
220 | 0.58 | 4000 | Φ1500 | DN400 | DN500 | DN80 | |
220 | 0.85 | 4000 | Φ1700 | DN500 | DN600 | DN100 | |
220 | 1.1 | 4100 | Φ1700 | DN500 | DN600 | DN100 | |
220 | 1.4 | 4200 | Φ1900 | DN600 | DN700 | DN100 | |
220 | 1.7 | 4300 | Φ2200 | DN700 | DN800 | DN100 | |
220 | 2 | 4600 | Φ2300 | DN900 | DN1000 | DN125 | |
220 | 2.4 | 4650 | Φ2500 | DN1000 | DN1000 | DN125 | |
220 | 2.6 | 4700 | Φ2600 | DN1000 | DN1000 | DN125 |
