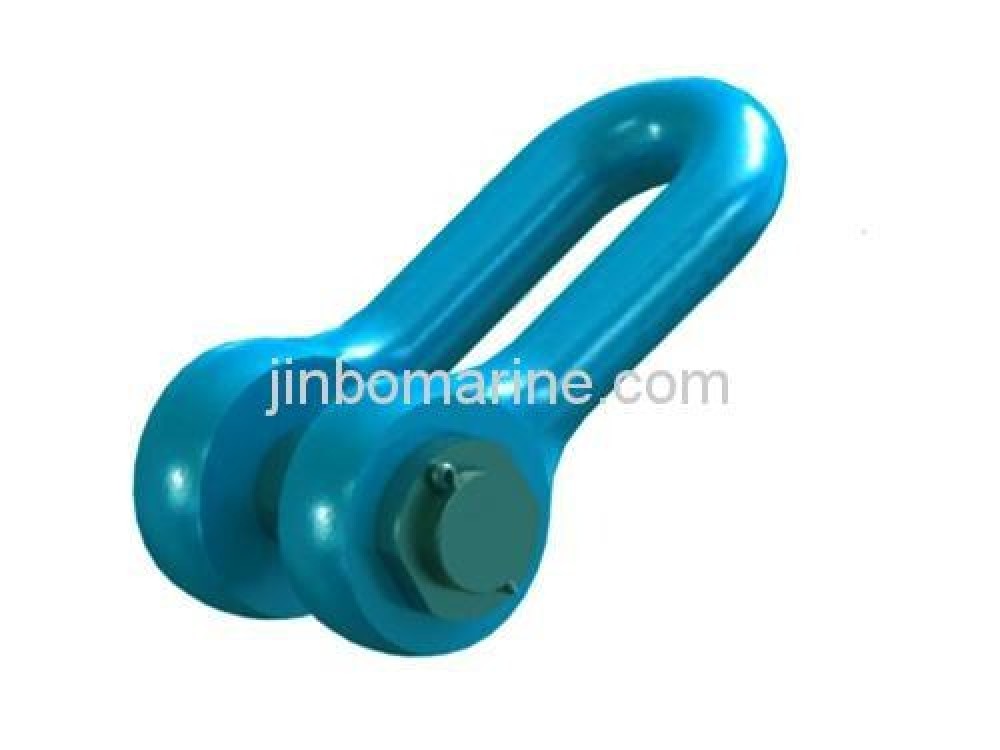

LTM Type Round Pin End Joining Shackle
- Category:Connectors
- Material:Alloy Steel
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Main Specification
Material: Alloy Steel
Size: 50mm to 114mm
Finish: Black Painting or as request.

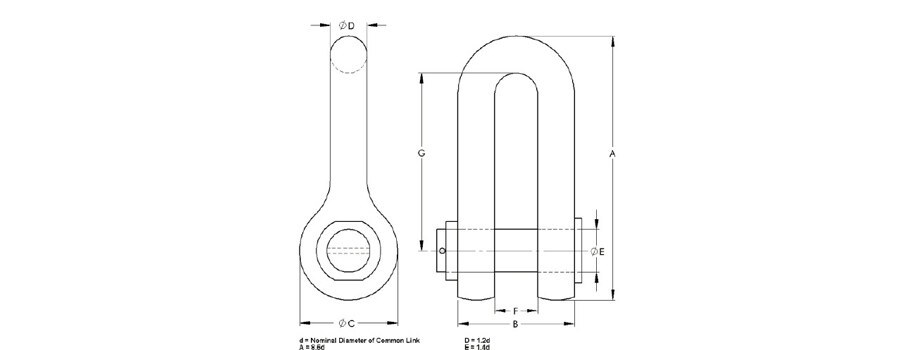

Size Table
Chain
Size (MM) |
Grade ORQ | Grade R3 | Grade R3s | Grade R4 | ||||
PL(KN) | BL(KN) | PL(KN) | BL(KN) | PL(KN) | BL(KN) | PL(KN) | BL(KN) | |
50 | 1400 | 2110 | 1560 | 2230 | 1800 | 2490 | 2160 | 2740 |
52 | 1508 | 2273 | 1680 | 2400 | 1940 | 2680 | 2330 | 2960 |
54 | 1620 | 2441 | 1810 | 2580 | 2080 | 2880 | 2500 | 3170 |
56 | 1735 | 2615 | 1940 | 2760 | 2230 | 3090 | 2680 | 3400 |
58 | 1854 | 2794 | 2070 | 2950 | 2380 | 3300 | 2860 | 3630 |
60 | 1976 | 2978 | 2200 | 3150 | 2540 | 3510 | 3050 | 3870 |
62 | 2101 | 3166 | 2340 | 3350 | 2700 | 3740 | 3240 | 4110 |
64 | 2230 | 3360 | 2490 | 3550 | 2870 | 3970 | 3440 | 4360 |
66 | 2361 | 3559 | 2630 | 3760 | 3040 | 4200 | 3640 | 4620 |
68 | 2496 | 3762 | 2780 | 3980 | 3210 | 4440 | 3850 | 4890 |
70 | 2634 | 3970 | 2940 | 4200 | 3390 | 4690 | 4060 | 5160 |
73 | 2847 | 4291 | 3170 | 4540 | 3660 | 5060 | 4390 | 5570 |
76 | 3066 | 4621 | 3420 | 4880 | 3940 | 5450 | 4730 | 6000 |
78 | 3216 | 4847 | 3590 | 5120 | 4140 | 5720 | 4960 | 6300 |
81 | 3446 | 5194 | 3840 | 5490 | 4430 | 6130 | 5320 | 6750 |
84 | 3683 | 5550 | 4110 | 5870 | 4740 | 6550 | 5680 | 7210 |
87 | 3925 | 5916 | 4380 | 6250 | 5050 | 6980 | 6060 | 7680 |
90 | 4173 | 6289 | 4650 | 6650 | 5370 | 7420 | 6440 | 8170 |
92 | 4342 | 6544 | 4840 | 6920 | 5580 | 7720 | 6700 | 8500 |
95 | 4599 | 6932 | 5130 | 7330 | 5910 | 8180 | 7100 | 9000 |
97 | 4774 | 7185 | 5320 | 7600 | 6140 | 8490 | 7370 | 9340 |
100 | 5040 | 7596 | 5620 | 8030 | 6480 | 8960 | 7780 | 9860 |
102 | 5220 | 7868 | 5820 | 8320 | 6710 | 9290 | 8050 | 10220 |
105 | 5495 | 8282 | 6130 | 8750 | 7070 | 9770 | 8470 | 10750 |
107 | 5681 | 8561 | 6630 | 9050 | 7300 | 10100 | 8760 | 11120 |
111 | 6058 | 9130 | 5760 | 9650 | 7790 | 10780 | 9350 | 11860 |
114 | 6346 | 9565 | 7080 | 10110 | 8160 | 11290 | 9790 | 12420 |
