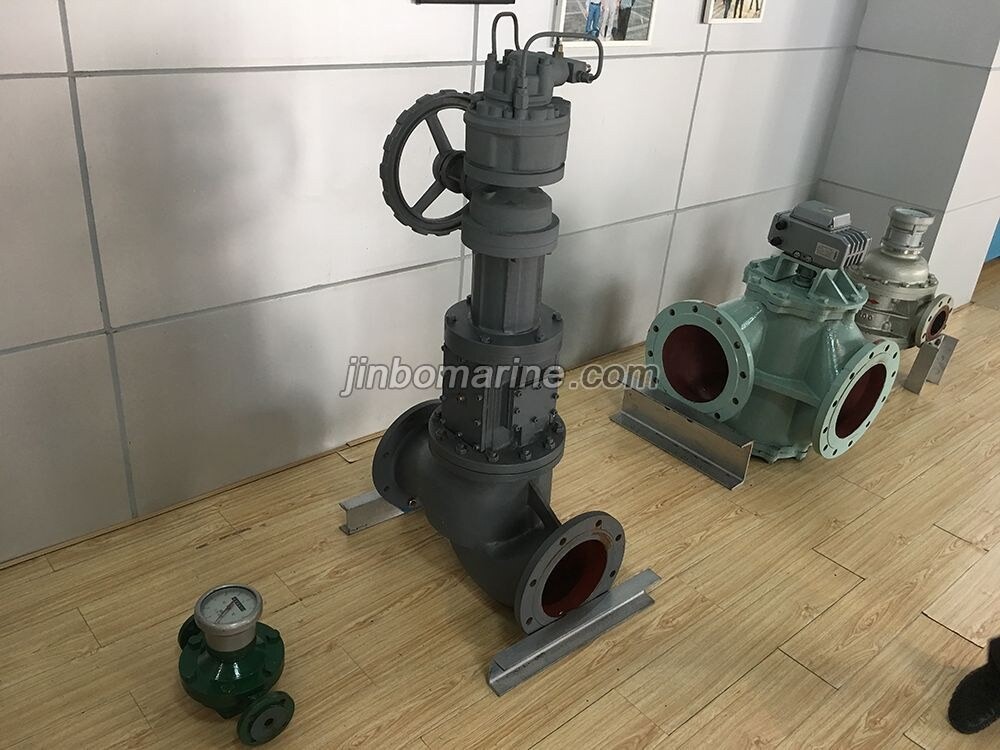

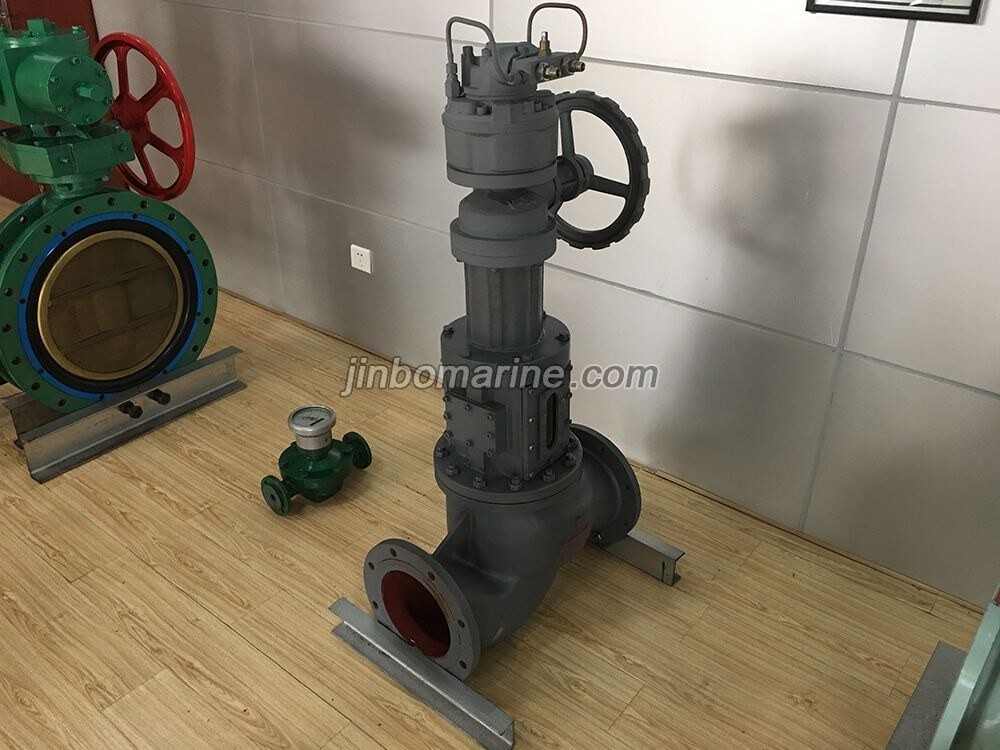

LXJ Model Fore Peak Tank Anticollision Valve
- Category:Measurement And Control Device
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
LXJ Model Fore Peak Tank Anticollision Valve adopts spiral shutoff valve, it features reasonable structure,safe and reliable. It is installed in the anticollision bulkhead of fore peak tank, immersed in the sea water for the control of ballast pipe of fore peak tank, suitable for ballast water control of bulk carrier or other kinds of ships.
Main Technical Specification:
Nominal diameter: DN50, DN 65.DN80.DN100.DN120.DN125.DN150.DN200.DN250.DN300.DN350.DN400.
Nominal pressure:0.6Mpa
Connection flange standard: GB2506-2005
House material: cast steel.
The inside and outside surface of housing is epoxy paint.
Installation type: dry installation, immersion installation.
Vavle position indicator, local indicator, remote signal output.
Structure Principle:
Total 3 types: manual , hydraulic or electric.
