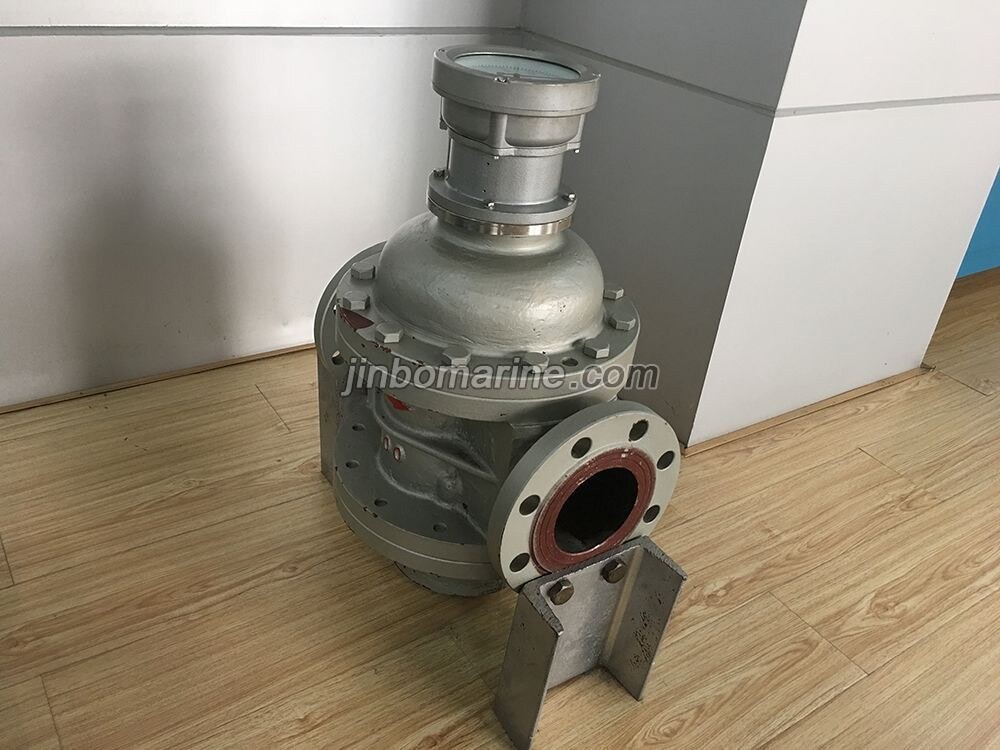

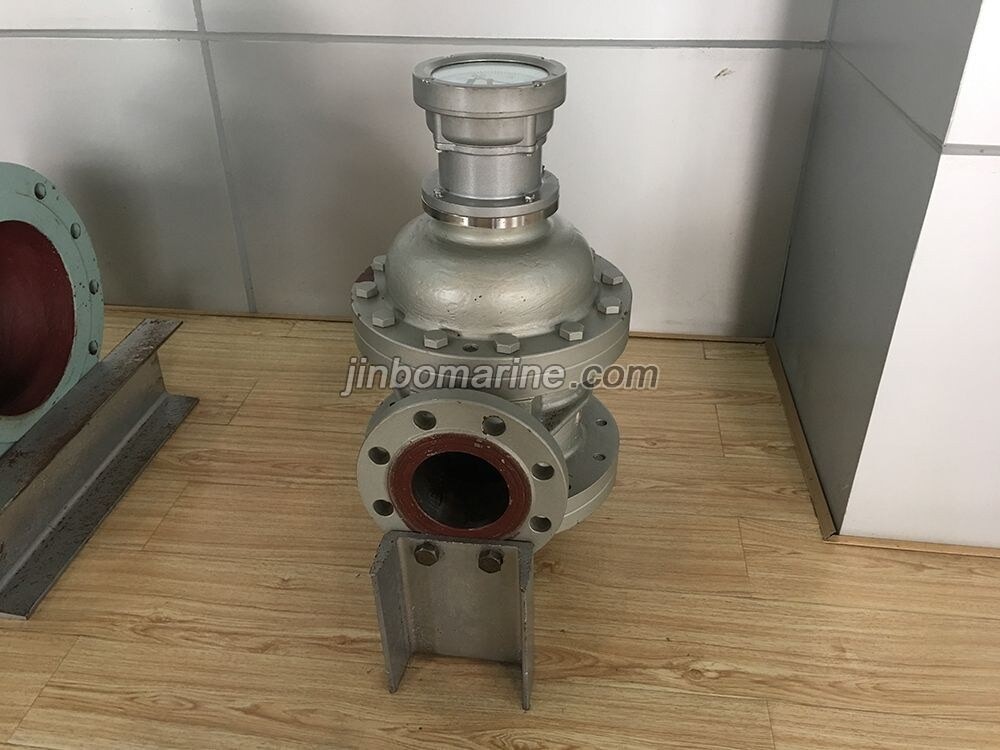

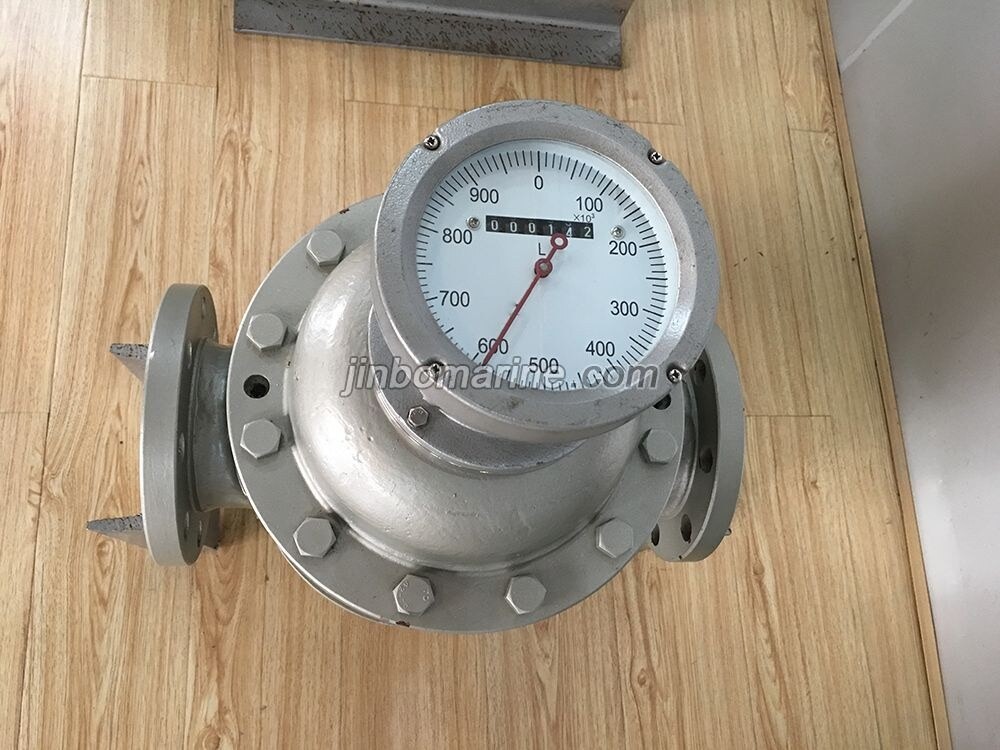

LXZ Type Spiral Rotor Flowmeter
- Category:Measurement And Control Device
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is a latest volume type flow meter, it adopt one pair special dentiform spiral rotor. It features pulseless, low voice,high accuracy, high reliablity,large flow,high environmental suitability etc. It is mainly used for the commercial trade measurment and project management control of ship, petroleam,electric,dock etc.
Main Technical Specificatioin:
Accuracy : 0.5 (0.2)
PN: 1.6 , 2.5 , 4.0Mpa
Working temperature: -20 to 60, 60 to 100, 100 to 200 centigrade.
Nominal diameter" DN25 to 300mm
Body material: ZG25
Rotor material: HT250
Bearing: graphite.
Local explosion proof class for remote indication: EXIA IICT5
Flange standard: GB2506-89
