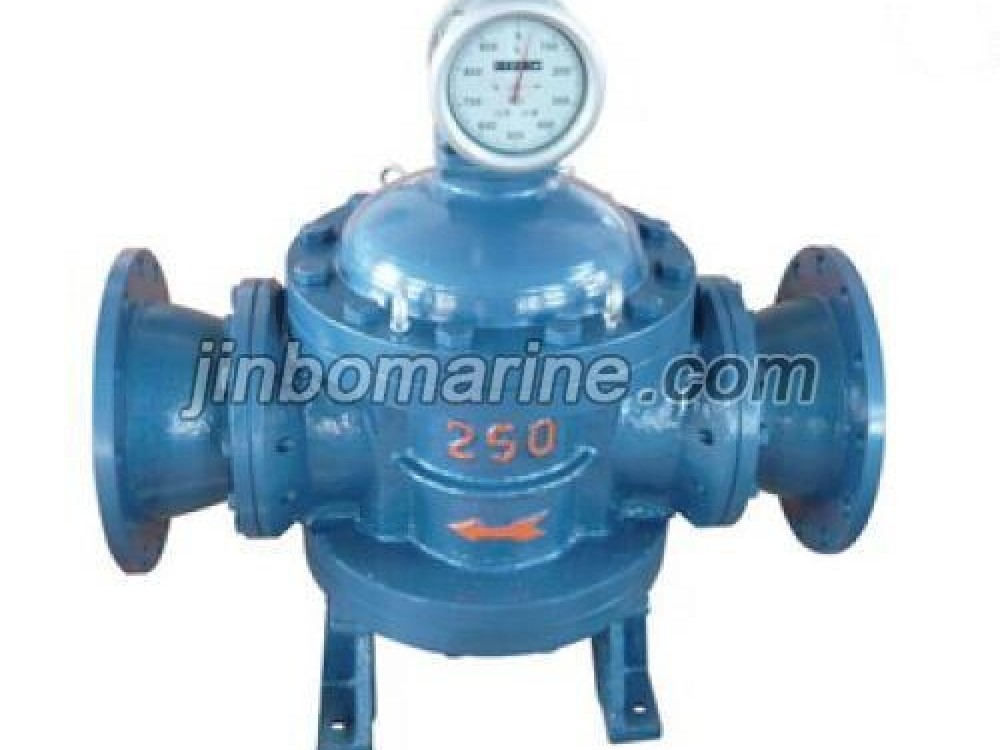

LXZ Type Spiral Type Rotor Flow Meter
- Category:Marine Flow Meter
- Standards:JB/T9242-1999
- Certificate:CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Spiral type rotor flowmeter is a latest volume type flowmeter,it features pulseless,low noise,high accuracy,small volume,large flow,high applicability due to a pair special gear screw rotor.
Main Technical Specification:
Material of main parts:
Body-ZG25
Rotor-HT250
Bearing-Graphite
Nominal pressure:1.6Mpa,2.5Mpa,4.0Mpa
Working temperature:-20~60,60~100,100~200 centigrade
Nominal diameter:DN25 to 300mm
Accuracy class:0.5(0.2)
Low explosion proof class for remote indication:Exia II CT5
Flange standard:GB2506-89
