Main technical parameters
- Category:Chain Sling
- Material:Galvanized Steel Wire Rope
- Standards:GB/T16271-1996.
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

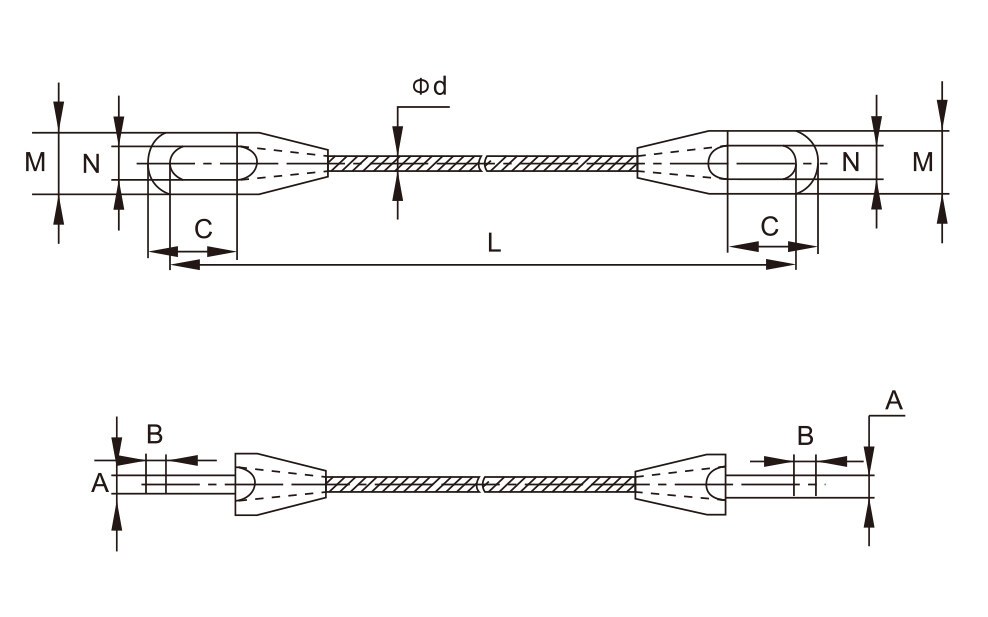

China Main technical parameters:
| Products code | Dia of rope(d) | Main technical parameters | |||||||||
| （in.） | (mm) | A | B | C | D | F | G | H | J | K | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| KC006 | 42373 | 6 | 114.3 | 12.7 | 38.1 | 22.35 | 9.65 | 17.53 | 39.62 | 57.15 | 12.7 |
| KC009 | 5/16-3/8 | 42591 | 123.95 | 15.75 | 42.93 | 24.64 | 12.7 | 20.57 | 42.93 | 57.15 | 17.53 |
| KC012 | 7/16-1/2 | 42686 | 138.18 | 17.53 | 50.8 | 29.64 | 14.22 | 23.88 | 47.75 | 63.5 | 22.35 |
| KC016 | 9/16-5/8 | 14-16 | 160.27 | 20.57 | 66.8 | 35.81 | 17.53 | 28.45 | 60.45 | 76.2 | 25.4 |
| KC022 | 42433 | 19 | 192.02 | 26.92 | 76.2 | 42.16 | 20.57 | 31.75 | 69.85 | 90.42 | 31.75 |
| KC022 | 42559 | 22 | 222.25 | 31.75 | 92.2 | 47.75 | 23.88 | 38.1 | 81.55 | 101.6 | 38.1 |
| KC025 | 1 | 25 | 250.95 | 35.05 | 104.9 | 58.42 | 28.7 | 44.45 | 95.25 | 112.78 | 44.45 |
| KC028 | 42682 | 28 | 279.4 | 38.1 | 114.3 | 65.02 | 31.75 | 50.8 | 104.9 | 127 | 50.8 |
| KC035 | 11/4-13/8 | 31.5-35 | 307.85 | 41.4 | 134.62 | 71.37 | 38.1 | 57.15 | 120.65 | 139.7 | 57.15 |
| KC038 | 42676 | 38 | 354.08 | 49.28 | 135.38 | 81.03 | 41.4 | 69.85 | 133.35 | 152.4 | 63.5 |
| KC042 | 42597 | 42 | 384.3 | 54.1 | 146.05 | 82.55 | 44.45 | 76.2 | 139.7 | 165.1 | 69.85 |
| KC047 | 13/4-17/8 | 45-47.5 | 438.15 | 55.63 | 171.45 | 95.25 | 50.8 | 79.5 | 162.05 | 190.5 | 76.2 |
| KC053 | 2-21/8 | 50-53 | 495.3 | 61.98 | 193.8 | 111.25 | 57.15 | 95.25 | 187.45 | 215.9 | 82.55 |
| KC060 | 21/4-23/8 | 57-60 | 536.7 | 66.8 | 215.9 | 127 | 63.5 | 101.6 | 209.55 | 228.6 | 92.2 |
| KC066 | 21/2-25/8 | 63-66 | 596.9 | 79.25 | 241.3 | 139.7 | 73.15 | 114.3 | 234.95 | 247.65 | 101.6 |
| KC073 | 23/4-27/8 | 70-73 | 644.65 | 79.25 | 273.05 | 158.75 | 79.25 | 123.95 | 285.83 | 279.4 | 123.95 |
| KC080 | 3-31/8 | 76-80 | 685.8 | 82.55 | 292.1 | 171.45 | 85.85 | 133.25 | 292.1 | 304.8 | 133.35 |
| KC085 | 31/4-33/8 | 82-85 | 742.95 | 101.6 | 311.15 | 184.15 | 91.95 | 146.05 | 311.15 | 330.2 | 146.05 |
| KC092 | 31/2-35/8 | 89-92 | 787.4 | 101.6 | 330.2 | 196.85 | 98.55 | 165.1 | 330.2 | 335.6 | 158.75 |
| KC100 | 12148 | 95-100 | 844.55 | 107.95 | 361.95 | 215.9 | 107.95 | 184.15 | 361.95 | 381 | 177.8 |
