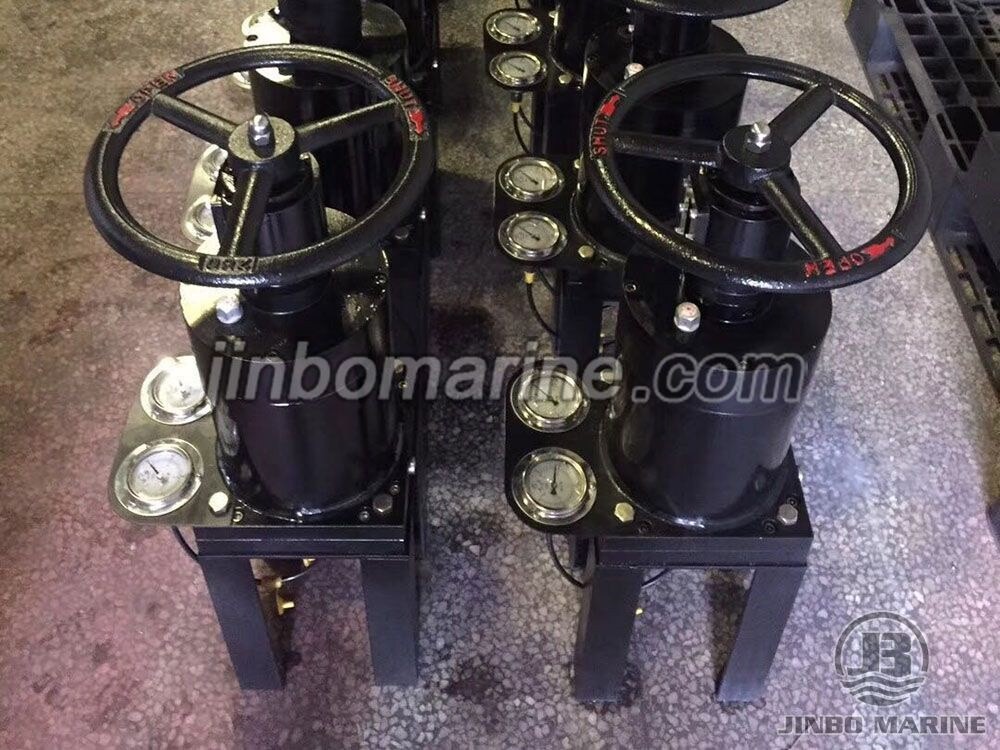

Manual Hydraulic Valve Remote Control Device

Manual Hydraulic Valve Remote Control Device consists of fixed manual hydraulic pump, hydraulic actuator and butterfly valve. The device adopt single valve as remote control object, it features compact structure, easy operation, convenient operation and maintenance. It is widely used in the ships , chemical tanker, oil platform , remote control the valve open and close which located in special position .

1. Model YFK-06S

2. Working temperature: -20~70 Centigrade

3. Working pressure: 6.3Mpa

4. Discharge capacity of pump: 20ml/r

5. Fixed mounting type.

6.Valve Nominal Diameter: DN50-800mm
