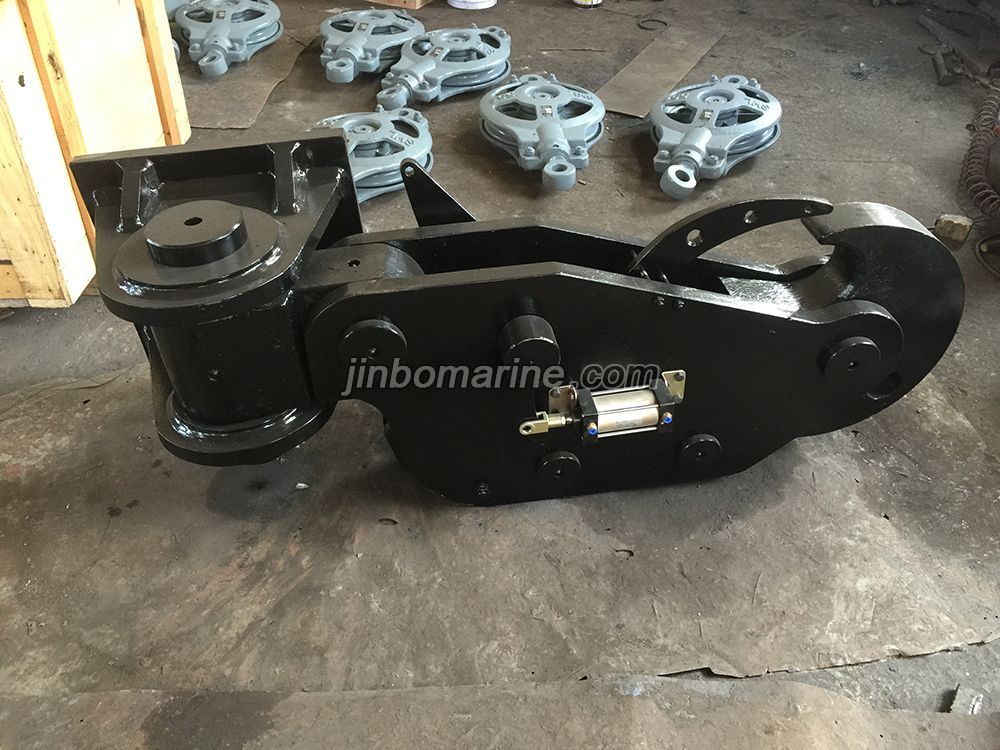

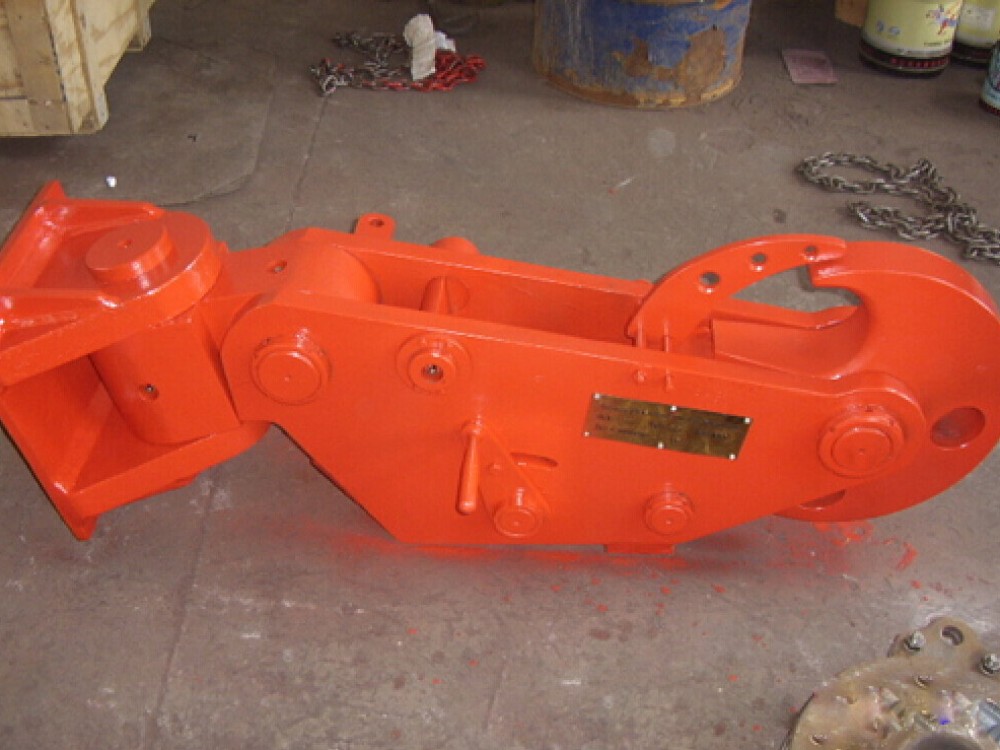

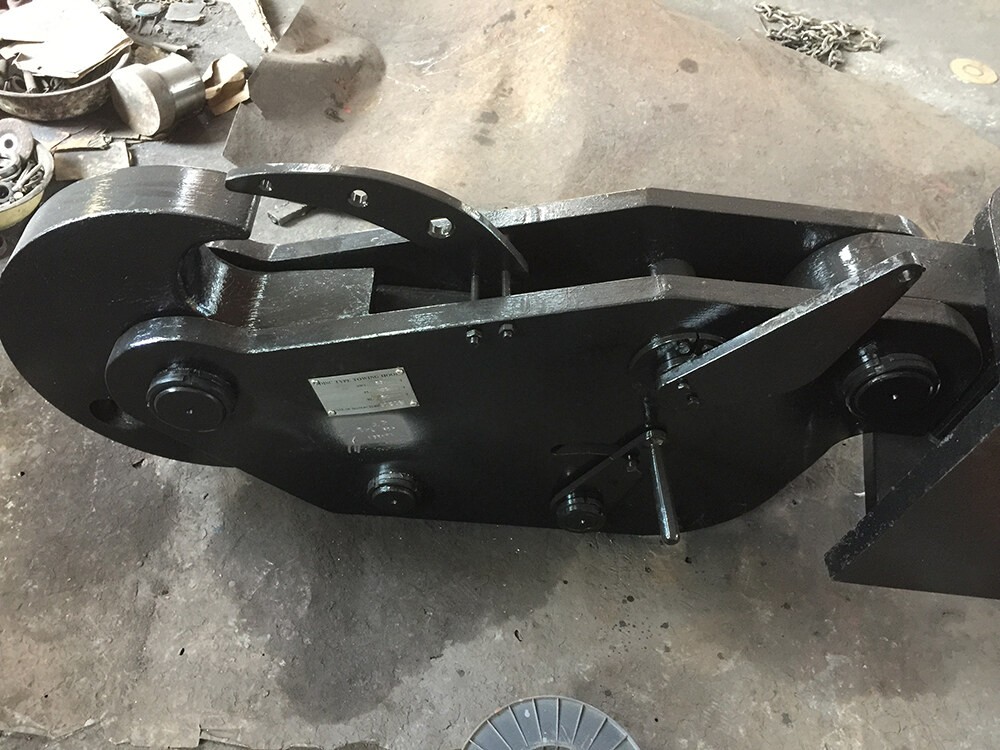

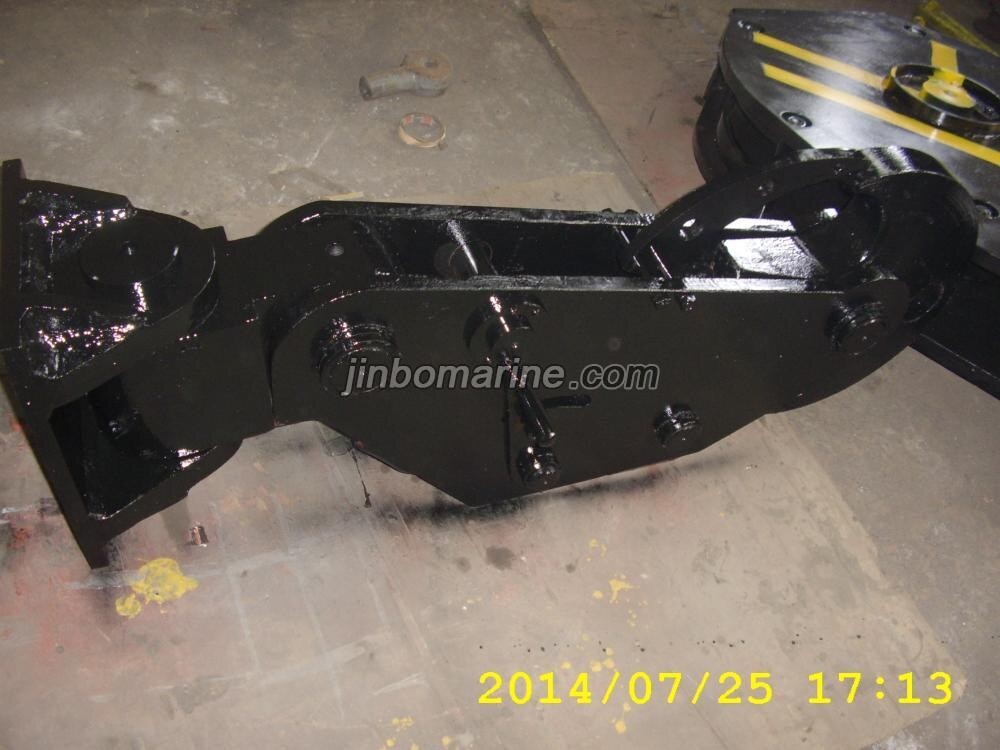

Manual Release Disc Type Towing Hook
- Category:Quick Release Disc Type Towing Hook
- Material:Including Q235-A material,35# steel,45 # steel,45Cr, EH36, 65Mn, Q345.The goods can be designed according to your requirements.
- Certificate:BV, CCS, ABS ,GL , mill certificate etc.
- Standards:Conply with the requirement of classification society.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Manual Release Disc Type Towing Hook.pdf
Details
Brief description:
Quick Release Hooks can secure a vessel to a jetty and release a vessel from the jetty fast in an emergency.It can be adapted to ensure the best solution is delivered for most docking situations.
Popular model:
5~7 ton,8~15 ton,16~25 ton,30~45 ton,50~65 ton,70~100 ton.
Type:Manual disc type/hand operated disc type.
Material:Including Q235-A material,35# steel,45 # steel,45Cr, EH36, 65Mn, Q345.The goods can be
designed according to your requirements.
Certificate:BV, CCS, ABS , DNV ,GL , mill certificate etc.
Advantages:
Adopt spark-proof and insulating design for quick release hook used in hazardous zone.
Long work life and minimum maintenance.
Towing flexible.
Specification:
|
Product No. |
Safe working load(Kn) |
Release load(Kn) |
Weight(kg) |
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
M |
N |
O |
P |
|
MTD-001 |
70 |
70 |
79 |
512 |
712 |
185 |
235 |
100 |
45 |
280 |
291 |
65 |
125 |
60 |
112 |
97 |
260 |
|
MTD-002 |
150 |
150 |
174 |
670 |
905 |
255 |
325 |
140 |
60 |
340 |
377 |
100 |
250 |
65 |
144 |
106 |
284 |
|
MTD-003 |
250 |
250 |
414 |
923 |
1238 |
355 |
445 |
180 |
80 |
470 |
491 |
130 |
200 |
81 |
186 |
124 |
427 |
|
MTD-004 |
450 |
450 |
534 |
973 |
1323 |
355 |
455 |
200 |
100 |
470 |
190 |
130 |
200 |
115 |
218 |
158 |
462 |
|
MTD-005 |
650 |
650 |
918 |
1173 |
1598 |
454 |
464 |
220 |
110 |
600 |
608 |
162 |
250 |
125 |
256 |
173 |
487 |
|
MTD-006 |
1000 |
1000 |
1282 |
1068 |
1750 |
492 |
632 |
280 |
135 |
650 |
668 |
176 |
290 |
135 |
288 |
182 |
530 |
Applications:
Container berth
General cargo berth
Oil & Gas terminals
LNG & LPG terminals
Offshore-FPSO
Ferry terminals
