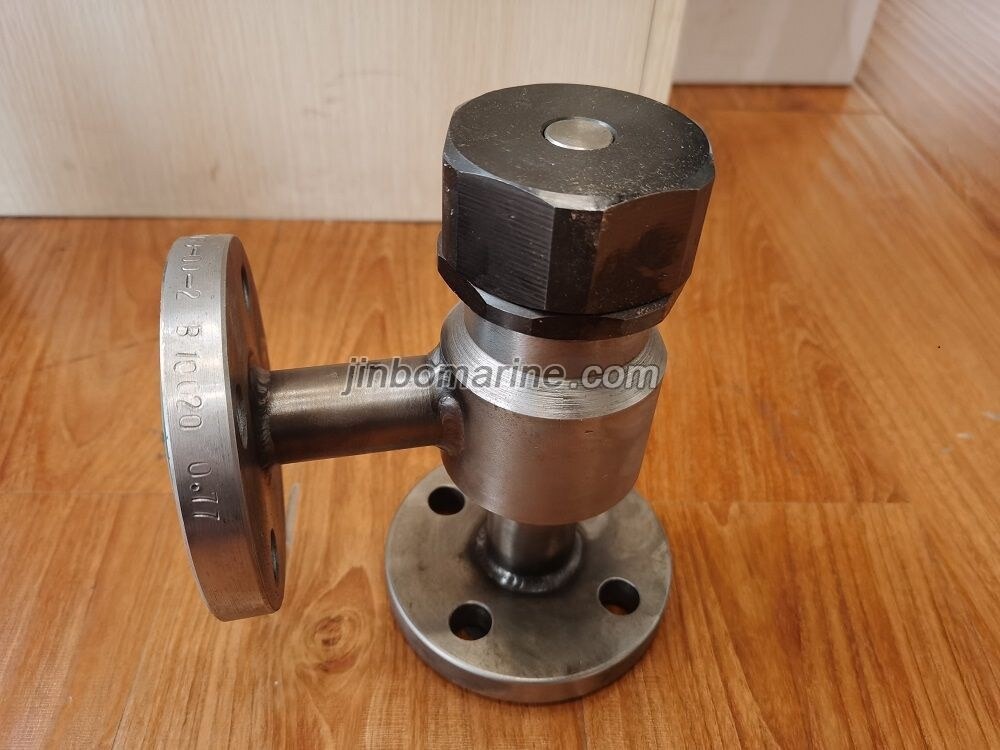

Marine Air safety valve HDMV69-00

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Air safety valve HDMV69-00:

The flanged angle air safety valve can be used on the compressed air pipe line in ship.

Material: Stainless Steel

Main Size:

Nominal Diameter DN Throat Diameter Structure Size Flange Size (ISO PN10, PN40)
L H D D1 D2 b
15 10 90 170 95 65 47 14
20 15 95 181 105 75 58 16
25 20 100 193 115 85 68 16
32 25 105 206 140 100 78 18
40 32 115 225 150 110 88 18
Remarks: The flange size can be machined according to the customer's requirement.
