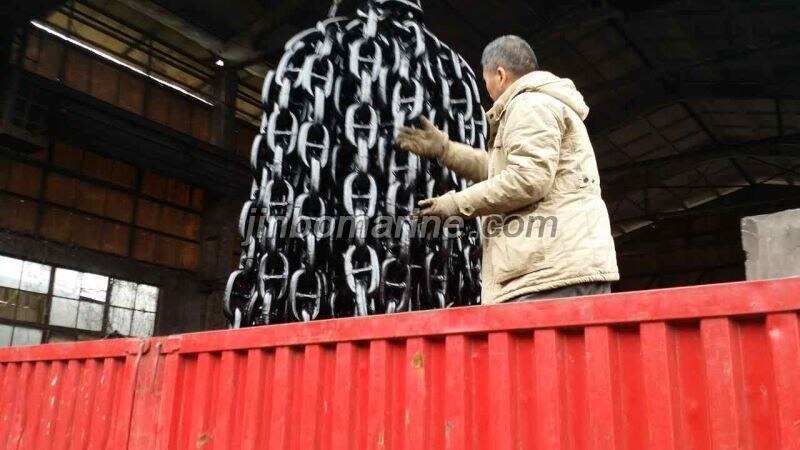

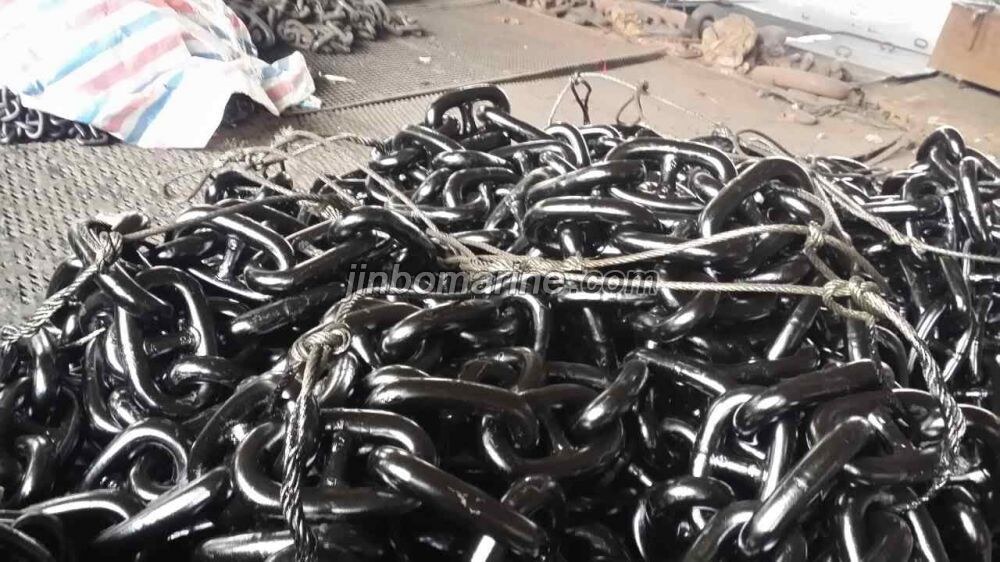

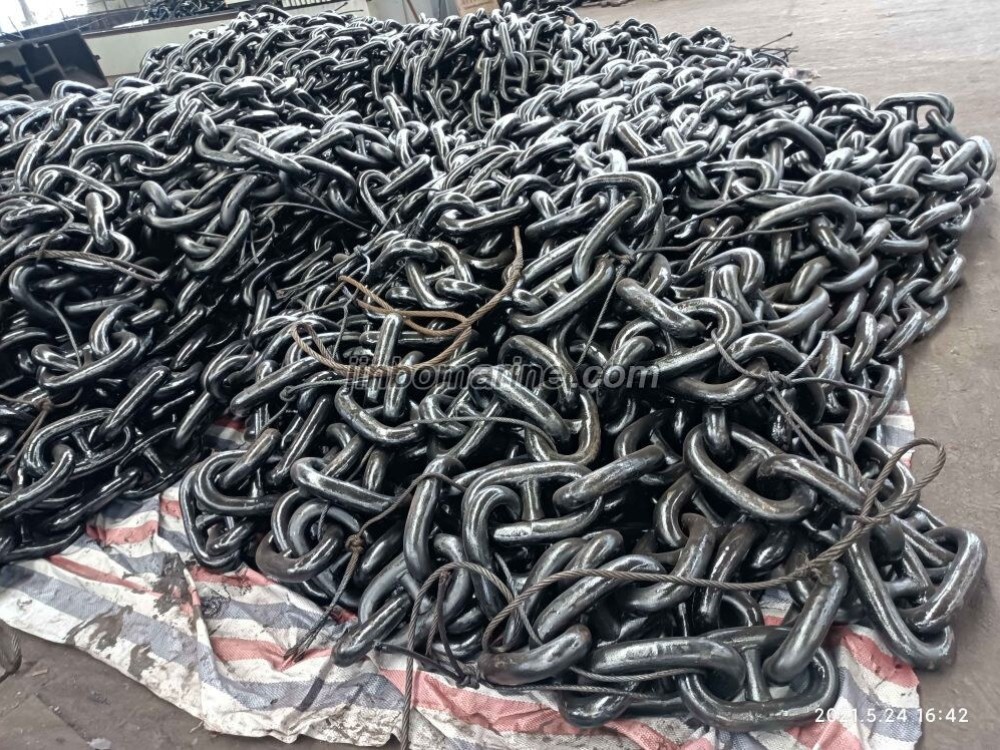

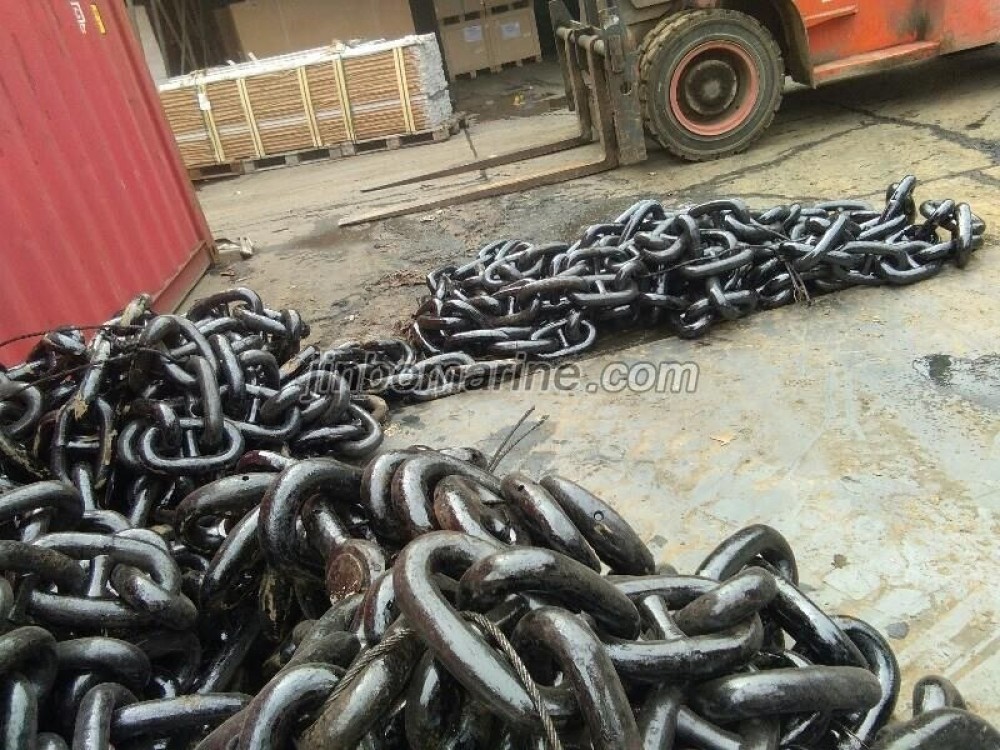

Marine Anchor Chain
- Category:Anchor Chain
- Material:CM490, CM690
- Standards:Rules of International Class Society
- Certificate:ABS, LR, BV, DNV, NK, GL, KR, NK, IRS,CCS
- Delivery Time:30 Days
- Packing Details:Ton Bags
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Anchor Chain:
Our marine Anchor Chain is good quality and fast delivery, we can deliver the anchor chain on board if your vessel port in China, also we can delivery to any port you require.
ABS, LR, BV, DNV, NK, GL, KR, NK, IRS and CCS are available for our anchor chain Cable and accessories.
Material: CM490,CM690
Grade: K2, K3
Diameter of link: 12.5mm to 132mm
Flush-welded Stud
Finish: Bituminous Painted.
Joining Forms of Anchor Chains

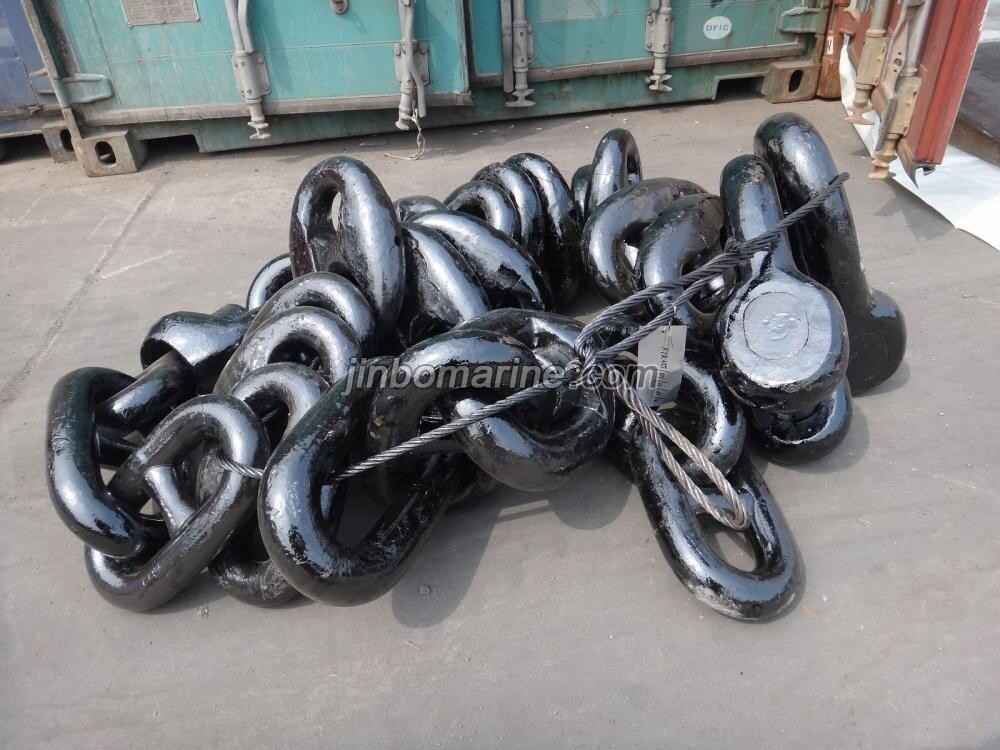

Joining Shackle D type Joining Forms
Marine Anchor Chains Size:
Chain Diameter mm | Proof Load | Breaking Load | Chain Diameter mm | Minimum Weight Kg per lenght of 27,5 m | ||
Grade 2 kN | Grade 3 kN | Grade 2 Kn | Grade 3 kN | |||
12.5 | 66 | - | 92 | - | 12.5 | 98 |
14 | 82 | - | 116 | - | 14 | 119 |
16 | 107 | 150 | 150 | 216 | 16 | 160 |
17.5 | 127 | 179 | 179 | 256 | 17.5 | 190 |
19 | 150 | 211 | 211 | 301 | 19 | 225 |
20.5 | 175 | 244 | 244 | 349 | 20.5 | 265 |
22 | 200 | 280 | 280 | 401 | 22 | 300 |
24 | 237 | 332 | 332 | 476 | 24 | 360 |
26 | 278 | 389 | 389 | 556 | 26 | 420 |
28 | 321 | 449 | 449 | 642 | 28 | 490 |
30 | 368 | 514 | 514 | 735 | 30 | 565 |
32 | 417 | 583 | 583 | 833 | 32 | 635 |
34 | 468 | 655 | 655 | 937 | 34 | 720 |
36 | 523 | 732 | 732 | 1050 | 36 | 800 |
38 | 581 | 812 | 812 | 1160 | 38 | 895 |
40 | 640 | 896 | 896 | 1280 | 40 | 995 |
42 | 703 | 981 | 981 | 1400 | 42 | 1100 |
44 | 769 | 1080 | 1080 | 1540 | 44 | 1200 |
46 | 837 | 1170 | 1170 | 1680 | 46 | 1320 |
48 | 908 | 1280 | 1280 | 1810 | 48 | 1440 |
50 | 981 | 1370 | 1370 | 1960 | 50 | 1560 |
52 | 1060 | 1480 | 1480 | 2110 | 52 | 1675 |
54 | 1140 | 1590 | 1590 | 2270 | 54 | 1820 |
56 | 1220 | 1710 | 1710 | 2430 | 56 | 1935 |
58 | 1290 | 1810 | 1810 | 2600 | 58 | 2075 |
60 | 1380 | 1940 | 1940 | 2770 | 60 | 2220 |
62 | 1470 | 2060 | 2060 | 2940 | 62 | 2365 |
64 | 1560 | 2190 | 2190 | 3130 | 64 | 2550 |
66 | 1660 | 2310 | 2310 | 3300 | 66 | 2695 |
68 | 1750 | 2450 | 2450 | 3500 | 68 | 2890 |
70 | 1840 | 2580 | 2580 | 3690 | 70 | 3030 |
73 | 1990 | 2790 | 2790 | 3990 | 73 | 3290 |
76 | 2150 | 3010 | 3010 | 4300 | 76 | 3555 |
78 | 2260 | 3160 | 3160 | 4500 | 78 | 3755 |
81 | 2410 | 3380 | 3380 | 4820 | 81 | 4035 |
84 | 2580 | 3610 | 3610 | 5160 | 84 | 4395 |
87 | 2750 | 3850 | 3850 | 5500 | 87 | 4760 |
90 | 2920 | 4090 | 4090 | 5840 | 90 | 5005 |
92 | 3040 | 4260 | 4260 | 6080 | 92 | 5200 |
95 | 3230 | 4510 | 4510 | 6440 | 95 | 5570 |
97 | 3350 | 4680 | 4680 | 6690 | 97 | 5760 |
100 | 3530 | 4940 | 4940 | 7060 | 100 | 6130 |
102 | 3660 | 5120 | 5120 | 7320 | 102 | 6505 |
105 | 3860 | 5390 | 5390 | 7700 | 105 | 6885 |
107 | 3980 | 5570 | 5570 | 7960 | 107 | 7140 |
111 | 4250 | 5940 | 5940 | 8480 | 111 | 7715 |
114 | 4440 | 6230 | 6230 | 8890 | 114 | 8085 |
117 | 4650 | 6510 | 6510 | 9300 | 117 | 8445 |
120 | 4860 | 6810 | 6810 | 9720 | 120 | 9110 |
122 | 5000 | 7000 | 7000 | 9990 | 122 | 9240 |
124 | 5140 | 7200 | 7200 | 10280 | 124 | 9700 |
127 | 5350 | 7490 | 7490 | 10710 | 127 | 10040 |
130 | 5570 | 7800 | 7800 | 11140 | 130 | 10420 |
132 | 5720 | 8000 | 8000 | 11420 | 132 | 10910 |
