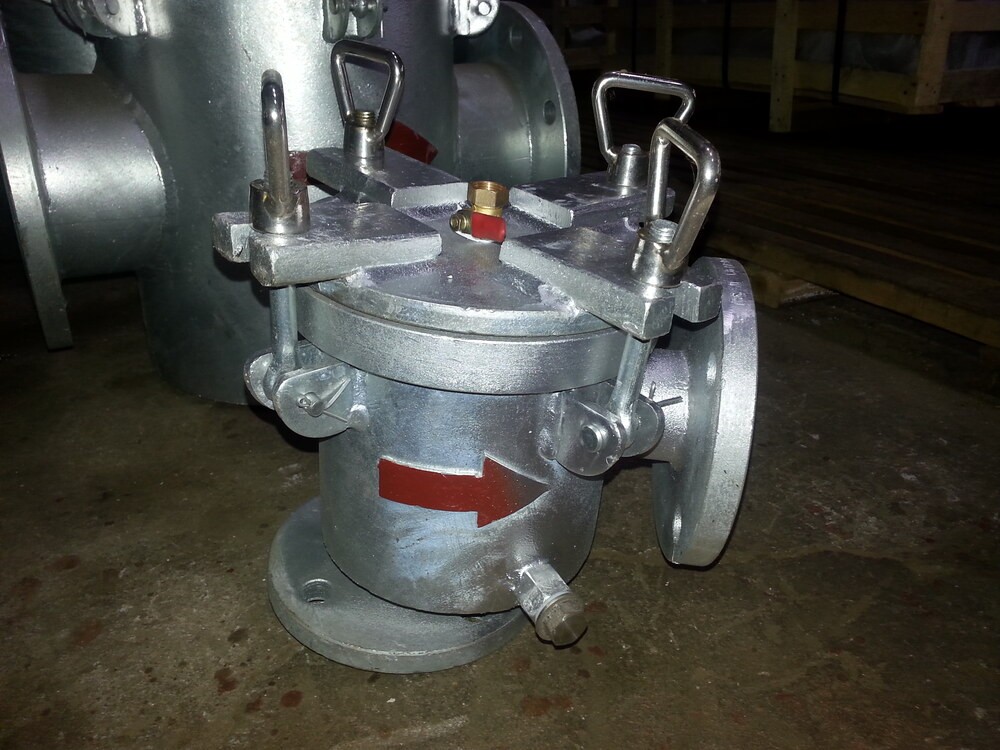

Marine Angle Mud Box CB/T3198-94

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Angle Mud Box CB/T3198-94:

Marine Angle Mud Box is used as the suction mud box of the bilge pipe on the location of marine machinery and its shaft tunnel, to prevent the cotton yarn, cloth, oil mud and other sewage into the suction pipe system.

Standard: CB/T3198-94, CBM1062-81

Flange size as per: GB569 or GB2501

Hydraulic Test as per GB600.

Nominal Pressure: 0.1Mpa

Nominal Size: DN50-250

Main Parts & Material:

Body: Cast Iron (HT200) with painting or hot dip galv

Filter Screen: carbon steel with hot dip galv or stainless steel

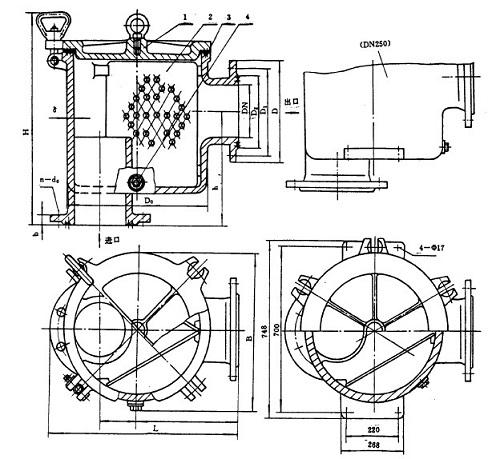

Main Size List(mm):

For B type:

DN L l l1 B H h D0 δ D D1 D2 b d0 no of Bolt Th Weight(kgs)
50 227.5 120 40 184 273 135 150 10 135 103 84 15 15 6 M14 15.6
65 280 150 52.5 222 320 160 192 11 155 123 104 15 15 6 M14 27.5
80 300 160 55 240 350 180 212 11 170 138 118 15 15 8 M14 30.6
100 355 190 70 282 390 210 264 12 190 158 138 15 15 8 M14 38.5
125 430 235 87.5 356 496 285 328 14 215 183 164 15 15 10 M14 74.9
150 510 280 110 431 600 345 402 16 240 208 190 16 15 12 M14 113.3
200 612.5 330 135 606 741 440 506 18 295 264 247 16 15 12 M14 198.2
250 717.5 380 155 874 874 500 598 19 365 327 306 18 17 14 M16 343.2

For BS type:

DN L l l1 B H h D0 δ D D1 D2 b d0 no of Bolt Th Weight(kgs)
50 227.5 120 40 184 273 135 150 10 140 110 90 16 14 4 M12 16.2
65 280 150 52.5 222 320 160 192 11 160 130 110 16 14 4 M12 28.5
80 300 160 55 240 350 180 212 11 190 150 128 18 18 4 M16 32.6
100 355 190 70 282 390 210 264 12 210 170 148 18 18 4 M16 43.1
125 430 235 87.5 356 496 285 328 14 240 200 178 20 18 8 M16 81.2
150 510 280 110 431 600 345 402 16 265 225 202 20 18 8 M16 200.4
200 612.5 330 135 606 741 440 506 18 320 280 258 22 18 8 M16 207.6
250 717.5 380 155 874 874 500 598 19 375 335 312 24 18 12 M16 354.4
