Marine Angle Sea Water Strainer CB/T497-94 BL/BLS/BR/BRS Type

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

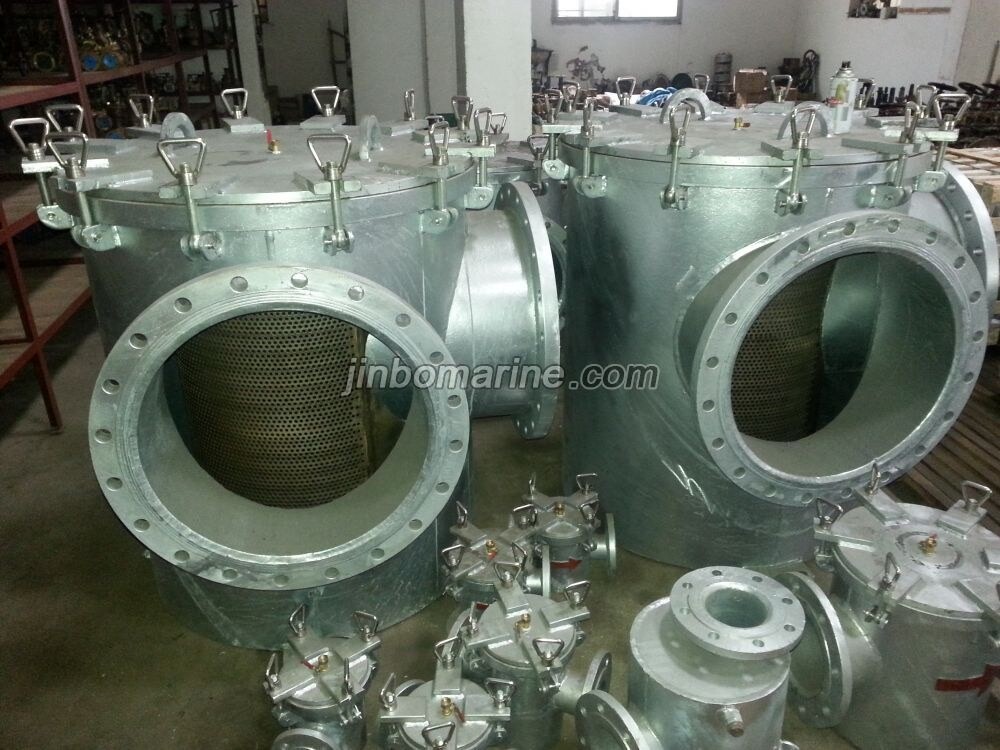

China Marine Angle Sea Water Strainer CB/T497-94 BL/BLS/BR/BRS Type:

Marine Sea Water Strainer is used on the sea water or fresh water pipe system to filter the bulky impurities.

Standard: CB/T497-94 & CBM1061-81

Flange size as per: GB569 or GB2501

Hydraulic Test as per GB600, it should be tested with 0.15Mpa water, last 5minutes, without leakage.

Type Nominal Pressure(Mpa) Nominal Size(mm)
A AS 0.1 40-500
BL BLS 40-350
BR BRS

Main Parts & Material:

Body: Carbon Steel with hot dip galv

Cover: Carbon Steel with hot dip galv

Filter Screen: Stainless steel or carbon steel

Flange: carbon steel

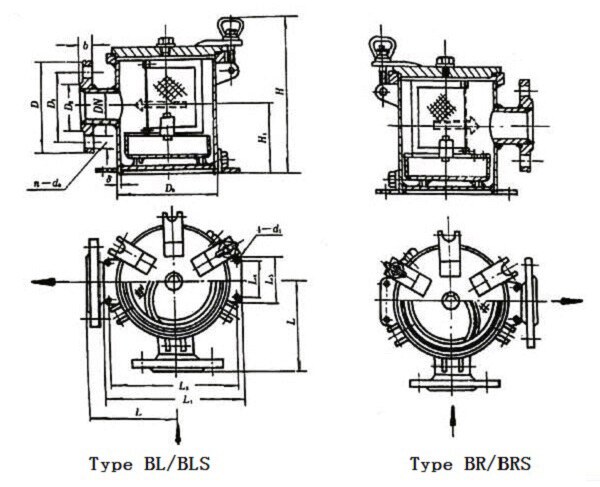

Main Size List(mm):

For BR/BL type:

DN L H H1 D0 δ D D1 D2 b d0 No of Bolt Hole Th L1 L2 L3 L4 d1 Weight(kgs)
40 135 225 92 133 5 125 93 74 15 15 6 M14 _ 12.9
50 135 225 92 133 5 135 103 84 15 15 6 M14 13.1
65 155 325 122 155 5 155 123 104 14 15 6 M14 17.2
80 175 360 152 180 6 170 138 118 14 15 8 M14 38.2
100 210 415 182 250 6 190 158 138 14 15 8 M14 36.5
125 210 445 182 257 6 215 183 164 14 15 10 M14 41.6
150 245 470 190 312 6 240 208 190 14 15 12 M14 60.2
200 270 550 240 362 8 295 264 247 15 15 12 M14 440 410 80 50 17 89.6
250 300 675 315 450 8 365 327 306 16 17 14 M16 520 490 80 50 17 137
300 330 770 340 500 8 430 386 360 19 21 14 M20 590 560 100 70 17 175
350 425 963 508 580 10 480 436 410 20 21 16 M20 680 640 120 80 19 359.4

For BLS/BRS Type:

DN L H H1 D0 δ D D1 D2 b d0 No of Bolt Hole Th L1 L2 L3 L4 d1 Weight(kgs)
40 135 225 92 133 5 130 100 80 16 14 4 M12 _ 13
50 135 225 92 133 5 140 110 90 16 14 4 M12 13.2
65 155 325 122 155 5 160 130 110 16 18 4 M12 17.4
80 175 360 152 180 6 190 150 128 18 18 4 M16 21.7
100 210 415 182 250 6 210 170 148 18 18 4 M16 38.4
125 210 445 182 257 6 240 200 178 20 18 8 M16 43.4
150 245 470 190 312 6 265 225 202 20 18 8 M16 62.1
200 270 550 240 362 8 320 280 258 22 18 8 M16 440 410 80 50 17 92.7
250 300 675 315 450 8 375 335 312 24 18 12 M16 520 490 80 50 17 140
300 330 770 340 500 8 440 395 365 24 22 12 M20 590 560 100 70 17 176
350 425 963 508 580 10 490 445 415 26 22 12 M20 680 640 120 80 19 366.4
