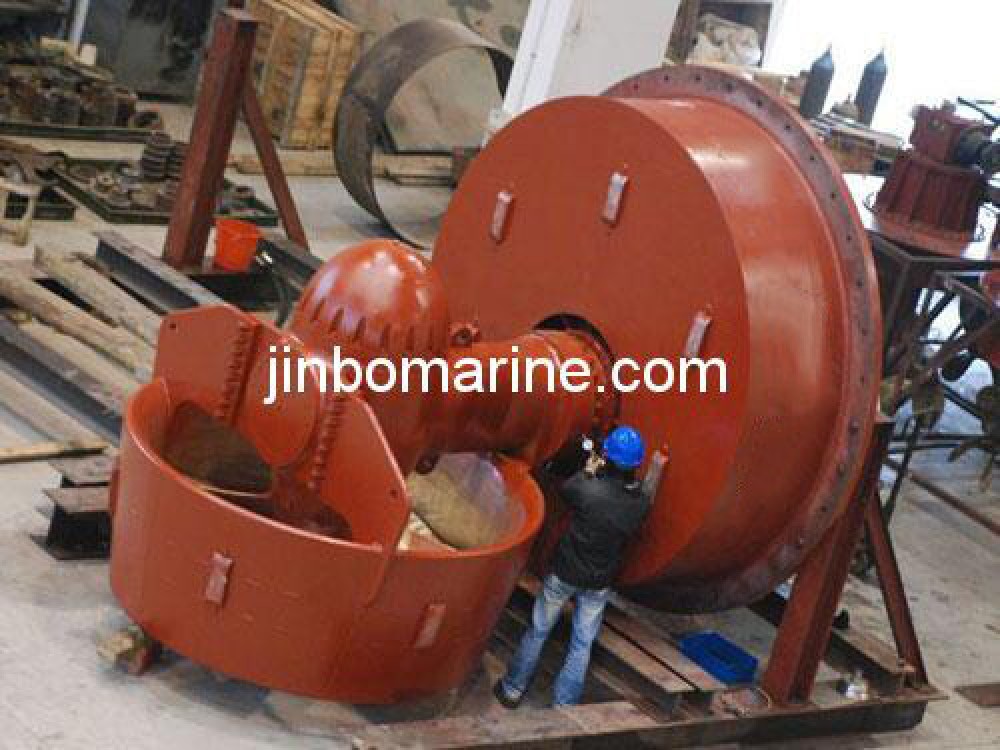

Marine Azimuth Thruster
- Category:Azimuth Thrusters
- Certificate:ABS,BV,DNV,LR,GL,CCS etc.
- Material:Cu
- Packing Details:Wooden Case
- Supply Ability:30 sets
- Delivery Time:45 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Marine Azimuth Thruster:
Azimuth thruster turn by mechanical, hydraulic and electro-hydraulic remote steering device to achieve. It can be used as the ship's main and auxiliary propulsion and dynamic positioning, commonly used in tugs, pusher craft, ferries and barges.
The design and manufacture of our azimuth thruster is totally in accordance with the requirements of IMO, SOLAS, and Classification Societies.
Advantages:
1.Good manoeuvrability.
2.High efficiency.
3.Space-saving installation, simple operation, maintainance,low noise.
Application: tug boat, harbor workboat, service ship, ferry and engineering ship.Z-drives in open wheel configuration or with nozzles.
Key feature:
Combined design propeller and nozzle together, enlarge diameter of propeller
and low down its rotate speed, which keep high propulsion efficiency and
enhance thrust force.
Carefully design the rudder-rod profile and its displace from propeller, which
improve propulsion efficiency and reduce vibration, especially reduce steering torque.
Adopt high-strength gear and bearing of high speed, seals and pipeline also
being carefully design, which improve the system’s reliability and longevity.
The steering mechanism can be drived by electrical motor or hydraulic motor.
According to the difference of operation condition, it can be divided into
three kind: FPP with nozzle, CPP with nozzle, without nozzle.
Specification:
|
Model |
Input power |
Input speed |
Propeller diameter |
Propeller type |
Max force |
|
(kW) |
(rpm) |
(mm) |
(T) |
||
|
RP |
20-150 |
1500-2500 |
500/600/700 |
FPP |
3.4 |
|
RP |
150-250 |
1500-2350 |
700/800/900 |
FPP |
2.9 |
|
RP |
230-480 |
1200-2350 |
900/1000/1100 |
FPP |
7.4 |
|
RP |
420-690 |
830-1800 |
1200/1300/1400 |
FPP/CPP |
11.1 |
|
RP |
650-980 |
830-1800 |
1500/1600/1700 |
FPP/CPP |
16.1 |
|
RP |
950-1500 |
830-1500 |
1900/2000/2100 |
FPP/CPP |
24.3 |
|
RP |
1320-1750 |
750-1500 |
2200/2300/2400 |
FPP/CPP |
29.3 |
|
RP |
1650-2250 |
550-1200 |
2400/2500/2600 |
FPP/CPP |
36.9 |
|
RP |
2200-2600 |
550-1200 |
2600/2700/2800 |
FPP/CPP |
42.6 |
|
RP |
2350-3400 |
550-1200 |
2900/3200/3500 |
FPP/CPP |
58.1 |
|
RP |
3350-4500 |
750-1000 |
3800/4000/4200 |
FPP/CPP |
79.5 |
