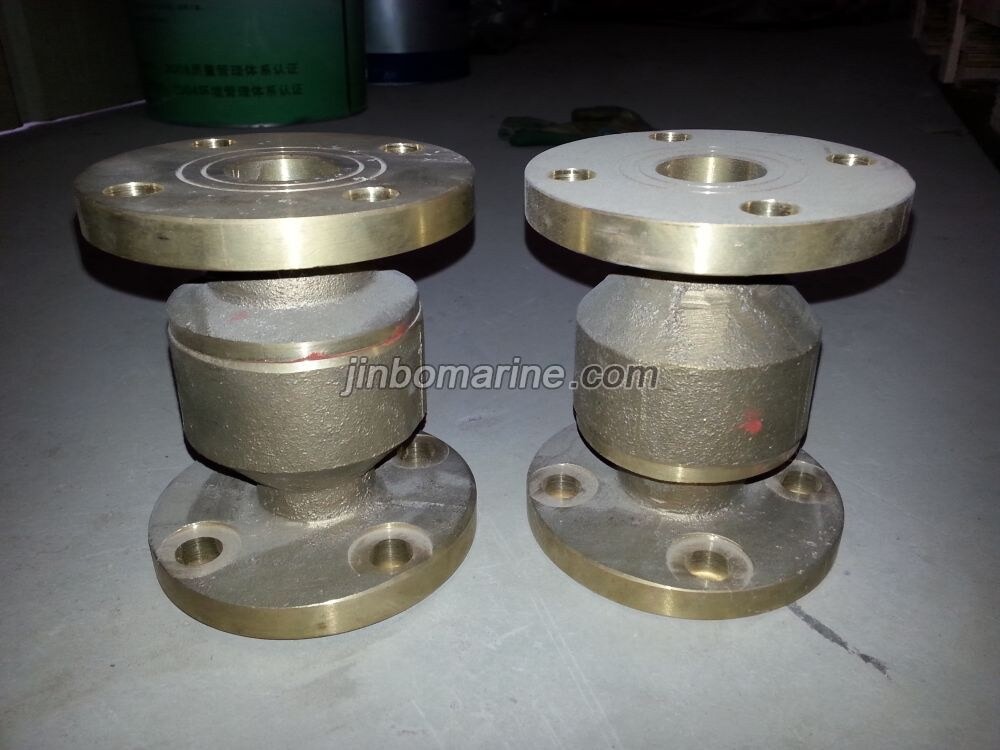

Marine Bronze Foot Valve JIS F3056

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Foot Valve JIS F3056:

Design Standard: JIS F3056-1995

Test Standard: JIS F7400-1996

Hydraulic Pressure Test: Body-0.2Mpa

Flange size as per JIS B2220 5K or 10K

Coupling screws for top and bottom parts of body shall conform to JIS B0207.

Pan head machine screw shall conform to JIS B1101.

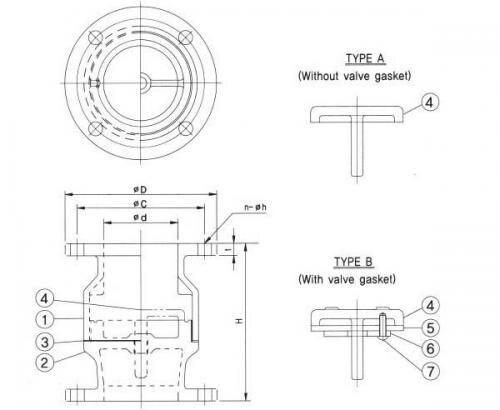

Main Material:

1-Body(Upper part): Bronze (BC6)

2-Body(Lower part): Bronze (BC6)

3-Gasket: NBR

4-Valve: Bronze (BC6)

5-Valve Gasket: NBR

6-Gasket Keep: C2600P

7-Pan Head Machine Screw:C4641BD

Main Size List(mm):

Rating Size d D C N-h t H
5K 40A 40 120 95 4-15 12 130
50A 50 130 105 4-15 14 142
80A 80 180 145 4-19 14 194
10K 40A 40 140 105 4-19 14 130
50A 50 155 120 4-19 14 142
80A 80 185 150 8-19 16 194
