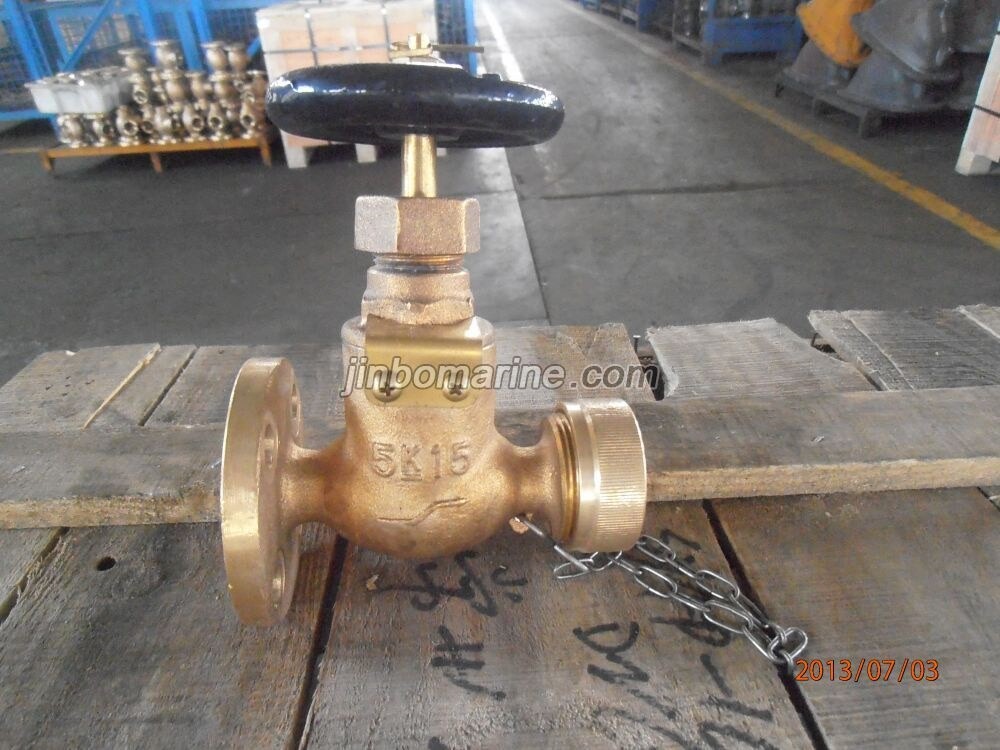

Marine Bronze Globe Hose Valve JIS F7334 5K (DN15-DN25)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Globe Hose Valve JIS F7334 5K (DN15-DN25):

Design Standard: JIS F7334-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 -5K

Main Material:

Body: Bronze (BC6)

Disc:Bronze (BC6)

Seat: Brzone (BC6)

Stem: Brass (C3771BD)

Coupling: Brass or Bronze

Bonnet:Bronze (BC6)

Handwheel: Cast Iron (FC200)

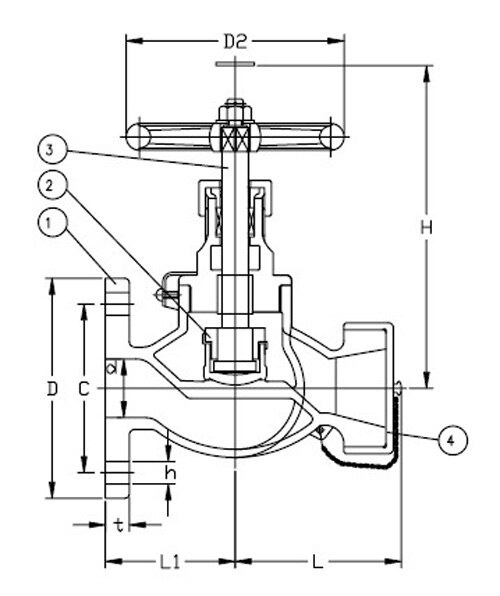

Main Size List(mm):

IMPA CODE Size Pressure L1 L D C t No of Bolt Hole h H D2
751701 15 5K 73 50 80 60 9 4 12 130 80
751702 15 10K 73 55 95 70 12 4 15 130 80
751703 25 5K 78 60 95 75 10 4 12 160 125
751704 25 10K 83 65 125 90 14 4 15 160 125
