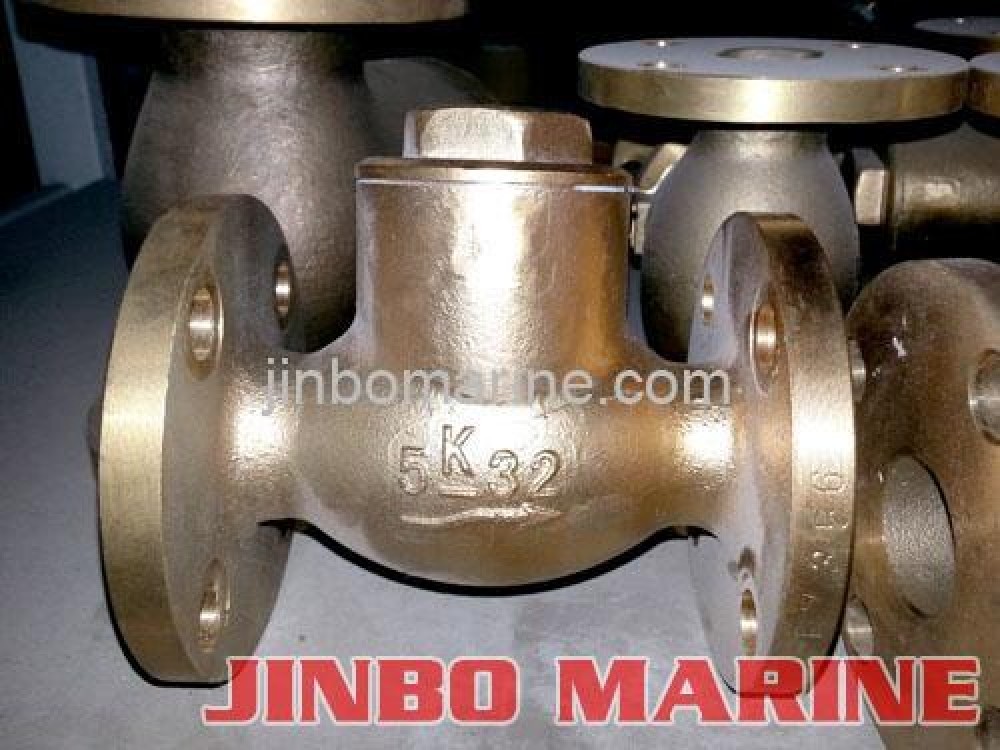

Marine Bronze Lift Check Valve JIS F7356
- Category:JIS Marine Check Valve
- Material:Bronze
- Standards:JIS F7356
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Lift Check Valve JIS F7356:
Design Standard: JIS F7356-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa
Flange size as per JIS B2220 - 5K

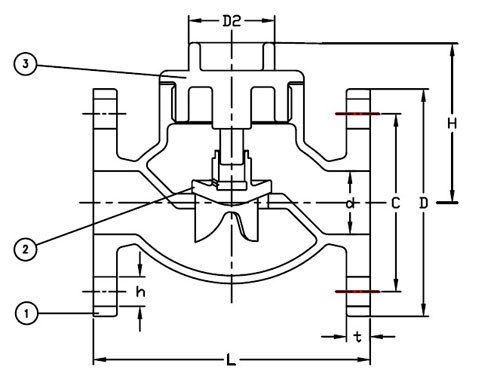

Main Material:
1-Body: Bronze (BC6)
2-Bonnet: Bronze (BC6)
3-Disc: Bronze (BC6)
4-Gasket: non-asbestos
Main Size List(mm):
| Size | L | D | C | No of Bolt | h | t | H | D2 |
| 25 | 120 | 95 | 75 | 4 | 12 | 10 | 77 | 41 |
| 32 | 140 | 115 | 90 | 4 | 15 | 12 | 81 | 41 |
| 40 | 160 | 120 | 95 | 4 | 15 | 12 | 91 | 46 |
