Marine Bronze Male Thread Drain Cock GB/T599-1996 Type A

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Male Thread Drain Cock GB/T599-1996 Type A:

Marine Bronze Male Thread Drain Cock GB/T599-1996 is used to drain off sea water, fresh water,lubrication oil, fuel oil in marine pipe system.

Technical Specification:

1. Design & Manufacturing Standard: GB/T599-1996, JIS F7390

2. Test Standard: GB600

Nominal Pressure (Mpa) Nominal Size(mm) Applicable Medium
0.1 10,15,20,25 sea water, fresh water,lubrication oil, fuel oil
1.0 32
1.6 20.25
2.5 6,10,15

Main Parts & Material:

Body---Bronze

Core---Bronze

Handle---Cast Iron

Main Size List(mm):

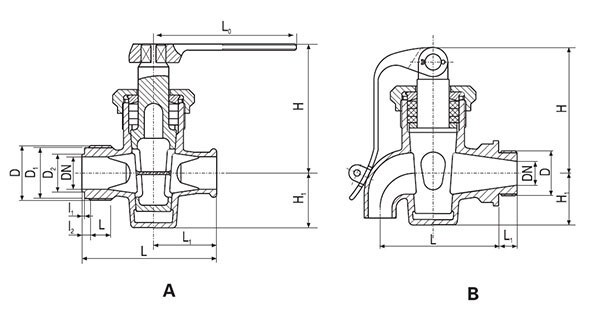

Type A:

PN
(MPa) 		DN
(mm) 		Structure Dimension thread connection handle l0 Thickness δ Weight(kg)
L L1 H1 H D D1 D2 I I1 I2
2.5 6 60 25 20 60 M22×1.5 19.8 10 14 3 3 100 5 0.4
10 69 30 27 72 M27×1.5 24.8 14 16 3 3 110 5 0.63
15 87 41 37 92 M36×2 33 22 22 5 3 115 5 0.94
1.6 20 92 43 40 99 M36×2 33 24 20 3 2 125 4 1.43
25 103 50 42 108 M42×2 39 29 21 3 2 140 4 1.69
1.0 32 119 56 49 120 M48×2 45 36 21 3 2 160 5 3.21

Type B:

PN
(MPa) 		DN
(mm) 		Structure Dimension thread connection D handle
l0 		Thickness δ hex. Subtense
s 		locking hole
d 		Weight(kg)
L L1 H1 H
0.1 10 58 14 21 58 M22×1.5 80 3 22 6 0.58
15 67 18 26 65 M27×1.5 85 3 27 6 0.88
20 81 20 32 77 M33×2 100 3 36 7 1.18
25 98 22 37 90 M42×2 120 3 41 8 1.7
