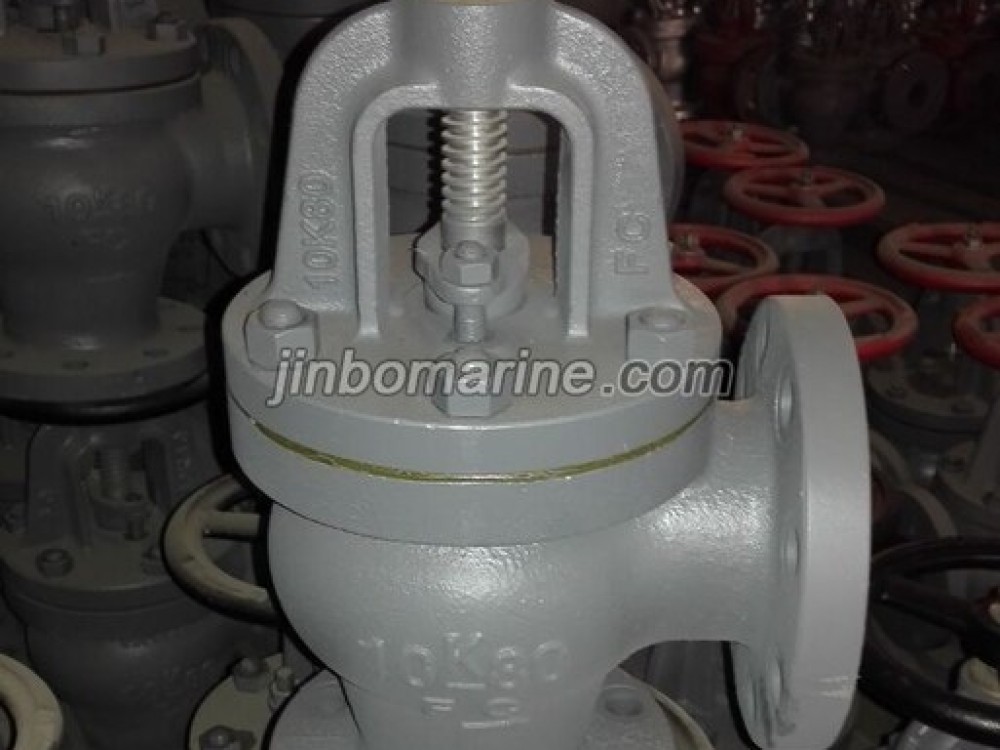

Marine Cast Iron Angle Valve JIS F7308 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

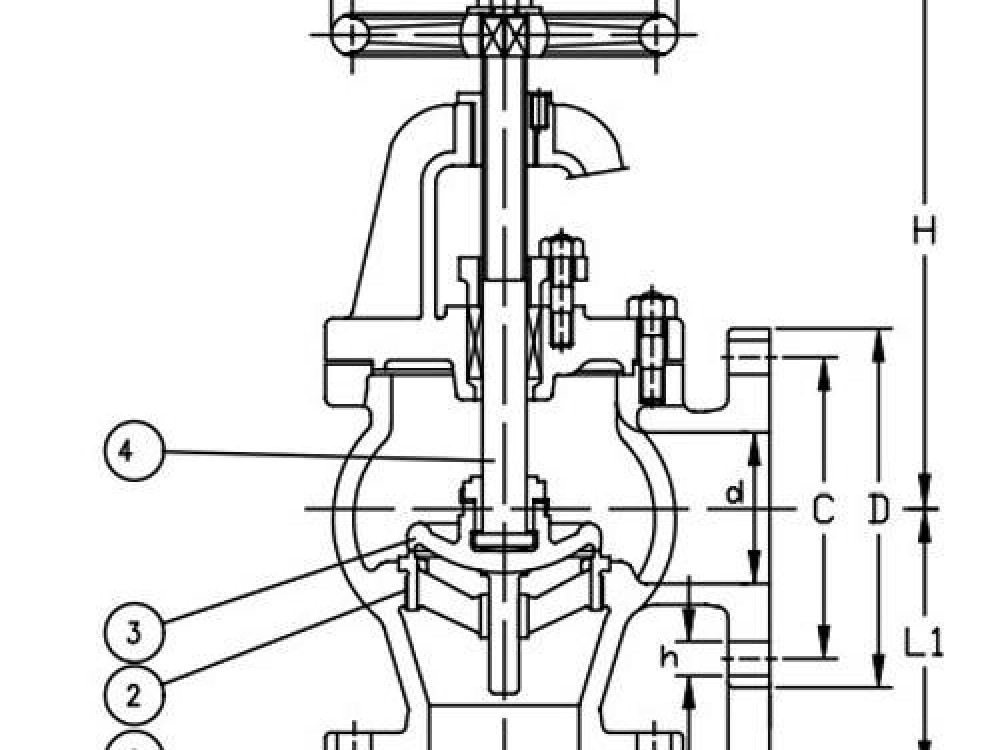

Marine Cast Iron Angle Valve JIS F7308 10K Drawing

Marine Cast Iron Angle Valve JIS F7308 10K Drawing

China Marine Cast Iron Angle Valve JIS F7308 10K:

Marine Cast Iron Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7308-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: for DN200 & less: Body- 2.1Mpa, Seat-1.54Mpa, for DN250 & more: Body-1.5Mpa, Seat-1.1Mpa

Flange size as per JIS B2220 -10K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Main Size List(mm):

IMPA Code Module L1 D C No of bolt hole h t H D2 Weight
750246 50 120 155 120 4 19 20 255/255 160 18.2
750247 65 130 175 140 4 19 22 270/260 200 25.4
750248 80 140 185 150 8 19 22 275/270 200 27.4
750249 100 160 210 175 8 19 24 315/305 250 40.6
750250 125 180 250 210 8 23 24 360/350 280 69.9
750251 150 205 280 240 8 23 26 405/390 315 81
750252 200 230 330 290 12 23 26 475/450 355 125
750253 250 290 400 355 12 25 30 570 450 211
750254 300 320 445 400 16 25 32 645 500 293
