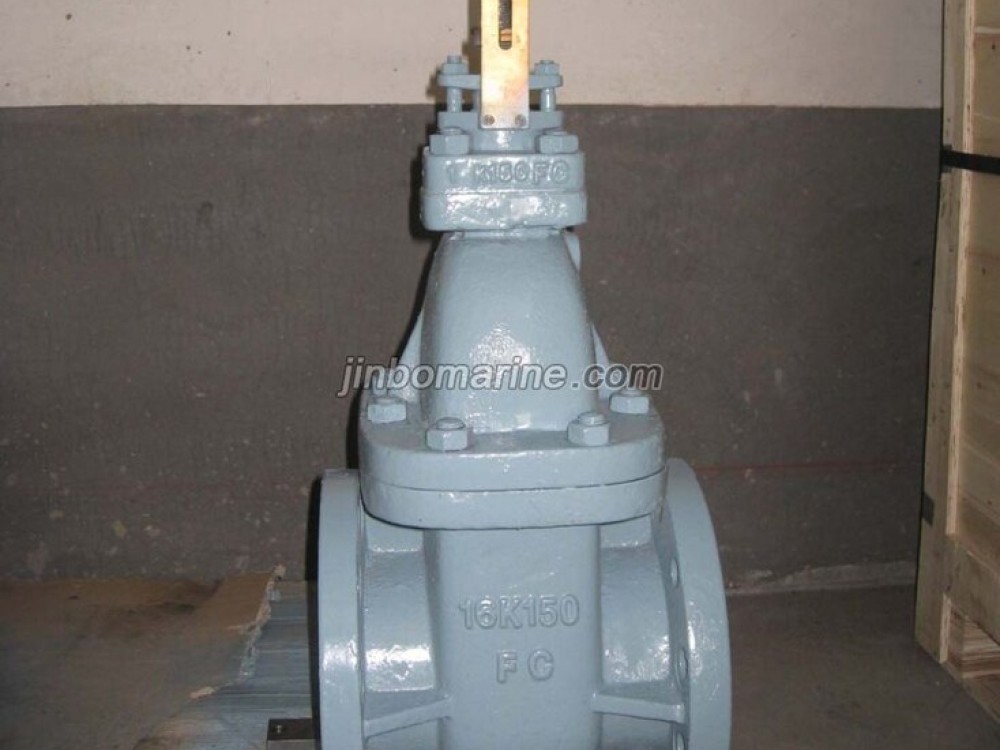

Marine Cast Iron Gate Valve JIS F7369 16K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Gate Valve JIS F7369 16K:

Marine Cast Iron Gate Valve JIS F7369 is non-rising gate valve.

Design Standard: JIS F7369-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seal-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

Body: FC200 (Cast Iron)

Bonnet: FC200 (Cast Iron)

Disc: Bronze (BC6) or SCS2 (2Cr13)

Seat: Bronze (BC6) or SCS2 (2Cr13)

Stem: Brass (C3771BD) or SUS403

Gasket: non-asbestos

Packing Gland: Bronze (BC6)

Handwheel: FC200 (Cast Iron)

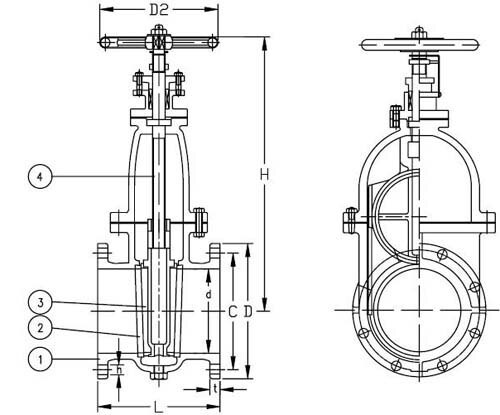

Main Size List:

Size L Flange diam. (D) Pitch (C) h t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 220 175 140 19 22 350 20.4
65 220 175 140 19 22 350 30.4
80 234 200 160 23 24 400 36.3
100 254 225 185 23 26 450 50.4
125 274 270 225 25 26 520 72.5
150 294 305 260 25 28 580 94.6
200 325 350 305 25 30 700 149.6
250 388 430 380 27 34 840 243.6
300 490 480 430 27 36 1010 430
350 540 540 480 33 38 1070 580
400 610 605 540 33 42 1185 780
