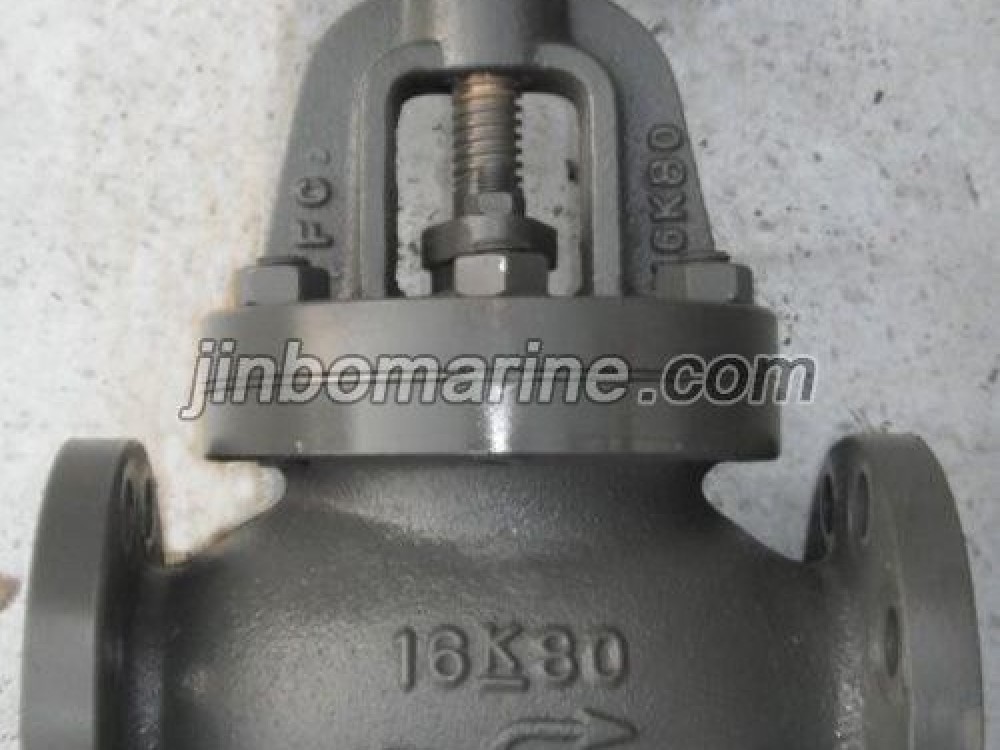

Marine Cast Iron Globe Valve JIS F7309 16K
- Category:JIS Marine Globe Valve
- Material:Cast Iron
- Standards:JIS F7309
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Cast Iron Globe Valve JIS F7309 16K:
It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.
Design Standard: JIS F7309-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa
Flange size as per JIS B2220 - 16K
Main Material:
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

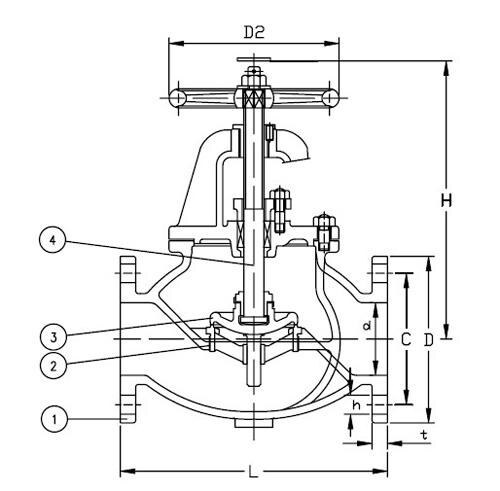

Main Size List(mm):
| IMPA CODE | DN | L | D | C | No of bolt hole | h | t | H | D2 | Weight(kgs) |
| 750261 | 50 | 220 | 155 | 120 | 8 | 19 | 20 | 285 | 160 | 19.6 |
| 750262 | 65 | 270 | 175 | 140 | 8 | 19 | 22 | 310 | 200 | 28.3 |
| 750263 | 80 | 300 | 200 | 160 | 8 | 23 | 24 | 340 | 224 | 40.4 |
| 750264 | 100 | 350 | 225 | 185 | 8 | 23 | 26 | 385 | 250 | 56.9 |
| 750265 | 125 | 430 | 270 | 225 | 8 | 25 | 26 | 455 | 315 | 89.5 |
| 750266 | 150 | 500 | 305 | 260 | 12 | 25 | 28 | 510 | 355 | 123 |
| 750267 | 200 | 570 | 350 | 305 | 12 | 25 | 30 | 630 | 450 | 188 |
