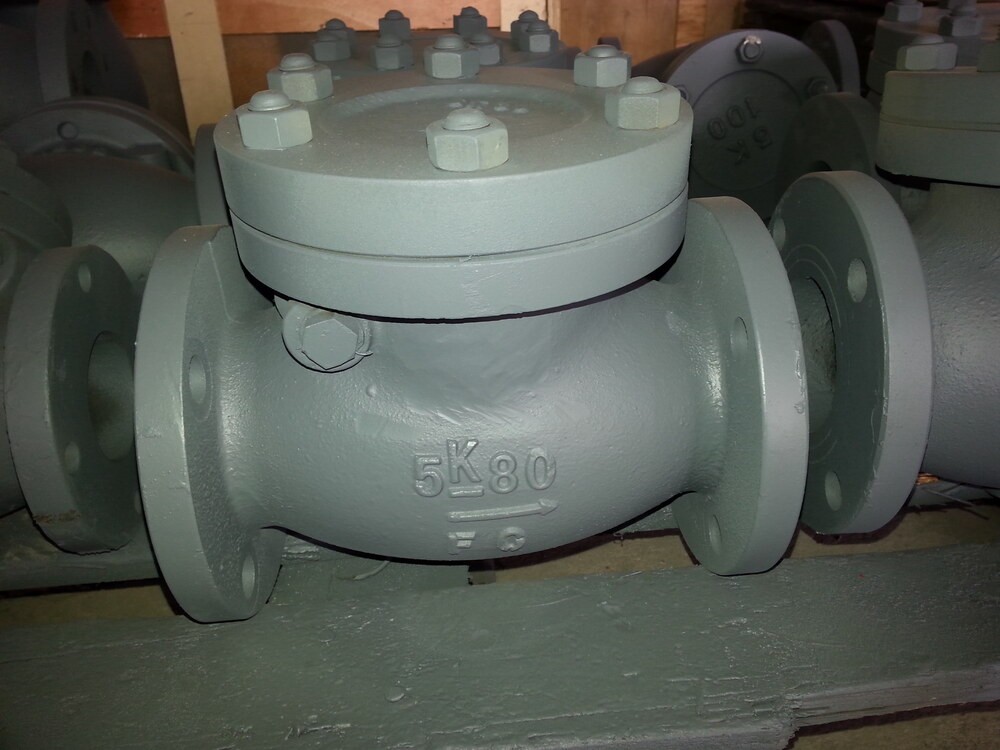

Marine Cast Iron Swing Check Valve JIS F7372

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Swing Check Valve JIS F7372:

Design Standard: JIS F7372-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa

Flange size as per JIS B2220 - 5K

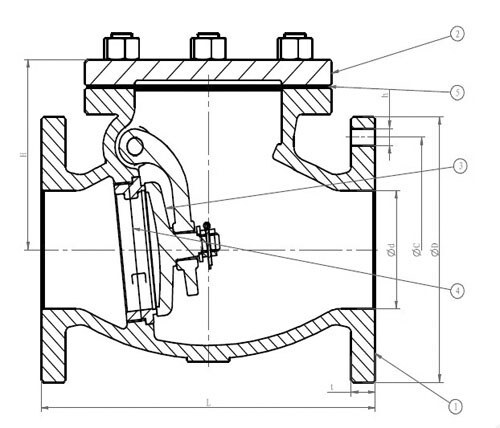

Main Material:

1-Body: Cast Iron (FC200)

2-Bonnet: Cast Iron (FC200)

3-Disc: Bronze (BC6) or Stainless Steel

4-Seat: Bronze (BC6) or Stainless Steel

5-Gasket: non-asbestos

Main Size List(mm):

IMPA Code Size L D C t No of Bolt h H
751421 50 190 130 105 16 4 15 97
751422 65 220 155 130 16 4 15 119
751423 80 250 180 145 18 4 19 129
751424 100 280 200 165 20 8 19 146
751425 125 330 235 200 20 8 19 171
751426 150 380 265 230 22 8 19 198
751427 200 460 320 280 24 8 23 235
751428 250 550 385 345 26 12 23 290
751429 300 640 430 390 28 12 23 351
