Marine Cast Iron Swing Check Valve JIS F7373 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Swing Check Valve JIS F7373 10K:

Design Standard: JIS F7373-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa~0.4Mpa

Flange size as per JIS B2220 - 10K

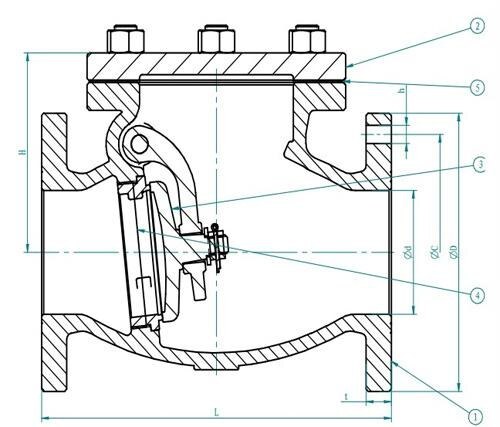

Main Material:

1-Body: Cast Iron (FC200)

2-Bonnet: Cast Iron (FC200)

3-Disc: Bronze (BC6) or Stainless Steel

4-Seat: Bronze (BC6) or Stainless Steel

5-Gasket: non-asbestos

Main Size List(mm):

IMPA Code Size L D C t No of Bolt h H
751431 50 210 155 120 20 4 19 109
751432 65 240 175 140 22 4 19 126
751433 80 270 185 150 22 8 19 136
751434 100 300 210 175 24 8 19 153
751435 125 350 250 210 24 8 23 180
751436 150 400 280 240 26 8 23 205
751437 200 480 330 290 26 12 23 242
