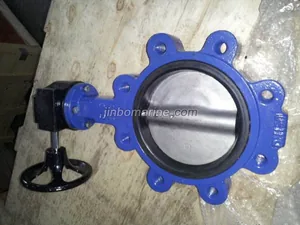

Marine Center-Pivoted Worm Manual Lug Butterfly Valve
- Category:GB Marine Butterfly Valve
- Material:Cast Iron, Cast Steel, Bronze
- Standards:GB/T3036-1994
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Center-Pivoted Worm Manual Lug Butterfly Valve:
Marine Center-Pivoted Worm Manual Lug Butterfly Valve is operated by worm gear, used to adjust the flow rate, open and close the pipe system in the marine pipe system.
Technical Specification:
Design Standard: GB/T3036-1994 Type B/BS
Test Standard: GB600
Applicable Medium: sea water, fresh water, air, crude/refined oil (t≤70℃)
Main Material:
1-Body: Cast Iron, Ductile Iron, Cast Steel, Bronze, Aluminum Alloy
2-Disc: WCB with galv, Stainless Steel, Bronze
3-Pin: Stainless Steel
4-Seat: NBR, EPDM,CR,FPM,VITION,PTFE
5-Stem: Stainless Steel

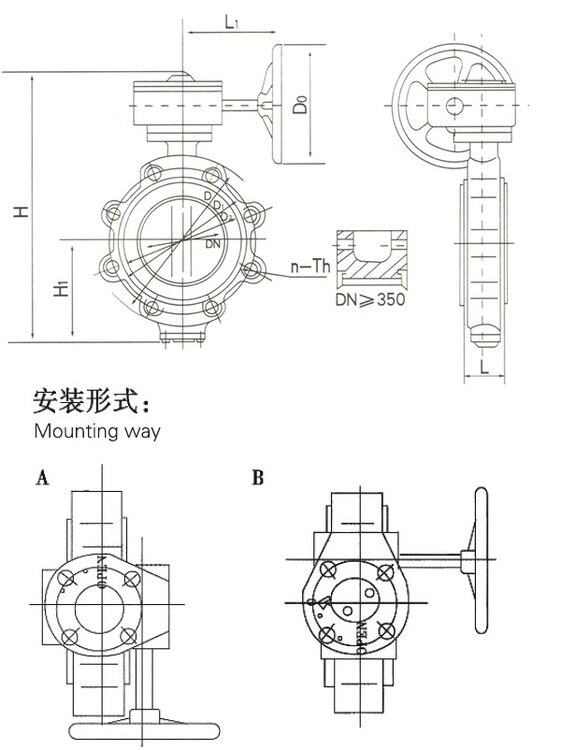

Main Size:
Nominal Pressure Mpa |
Norminal diameter |
Structure& Flange Dimension | Hole of Bolt | ||||||||||||||||||||
ISO、JIS、GB | ISO | JIS | GB(GB569-65) | ISO | JIS | GB | |||||||||||||||||
H | H1 | L1 | D0 | L | D | D1 | D2 | L | D | D1 | D2 | L | D | D1 | D2 | n | Th. | n | Th. | n | Th. | ||
1.0 | 50 | 280 | 80 | 160 | 160 | 43 | 165 | 125 | 102 | 40 | 155 | 120 | 88 | 43 | 135 | 103 | 84 | 4 | M16 | 4 | M16 | 6 | 16 |
65 | 295 | 90 | 160 | 160 | 46 | 185 | 145 | 122 | 40 | 175 | 140 | 112 | 46 | 155 | 123 | 104 | 4 | M16 | 4 | M16 | 6 | 16 | |
80 | 340 | 120 | 160 | 160 | 46 | 200 | 160 | 133 | 60 | 185 | 150 | 125 | 46 | 170 | 138 | 118 | 8 | M16 | 8 | M16 | 8 | 16 | |
100 | 360 | 130 | 160 | 160 | 52 | 220 | 180 | 158 | 60 | 210 | 175 | 144 | 52 | 190 | 158 | 138 | 8 | M16 | 8 | M16 | 8 | M14 | |
125 | 395 | 150 | 160 | 160 | 56 | 250 | 210 | 184 | 60 | 250 | 210 | 178 | 56 | 215 | 183 | 164 | 8 | M16 | 8 | M20 | 10 | M14 | |
150 | 430 | 165 | 180 | 220 | 56 | 285 | 240 | 212 | 70 | 280 | 240 | 207 | 56 | 240 | 208 | 190 | 8 | M20 | 8 | M20 | 12 | M14 | |
200 | 485 | 195 | 180 | 220 | 60 | 340 | 295 | 268 | 80 | 330 | 290 | 260 | 60 | 310 | 273 | 250 | 8 | M20 | 12 | M20 | 12 | M16 | |
250 | 570 | 225 | 210 | 300 | 68 | 395 | 350 | 320 | 90 | 400 | 355 | 316 | 68 | 380 | 336 | 310 | 12 | M20 | 12 | M22 | 14 | M20 | |
300 | 630 | 250 | 210 | 300 | 78 | 445 | 400 | 370 | 90 | 445 | 400 | 361 | 78 | 435 | 391 | 364 | 12 | M20 | 16 | M22 | 16 | M20 | |
350 | 730 | 280 | 275 | 380 | 78 | 505 | 460 | 430 | 100 | 490 | 445 | 404 | 78 | 485 | 441 | 414 | 16 | M20 | 16 | M22 | 18 | M20 | |
400 | 800 | 310 | 275 | 380 | 102 | 565 | 515 | 482 | 110 | 560 | 510 | 462 | 102 | 545 | 496 | 466 | 16 | M24 | 16 | M24 | 18 | M24 |
