Marine Flange Cast Steel Angle Storm Valve CB/T3475-92

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

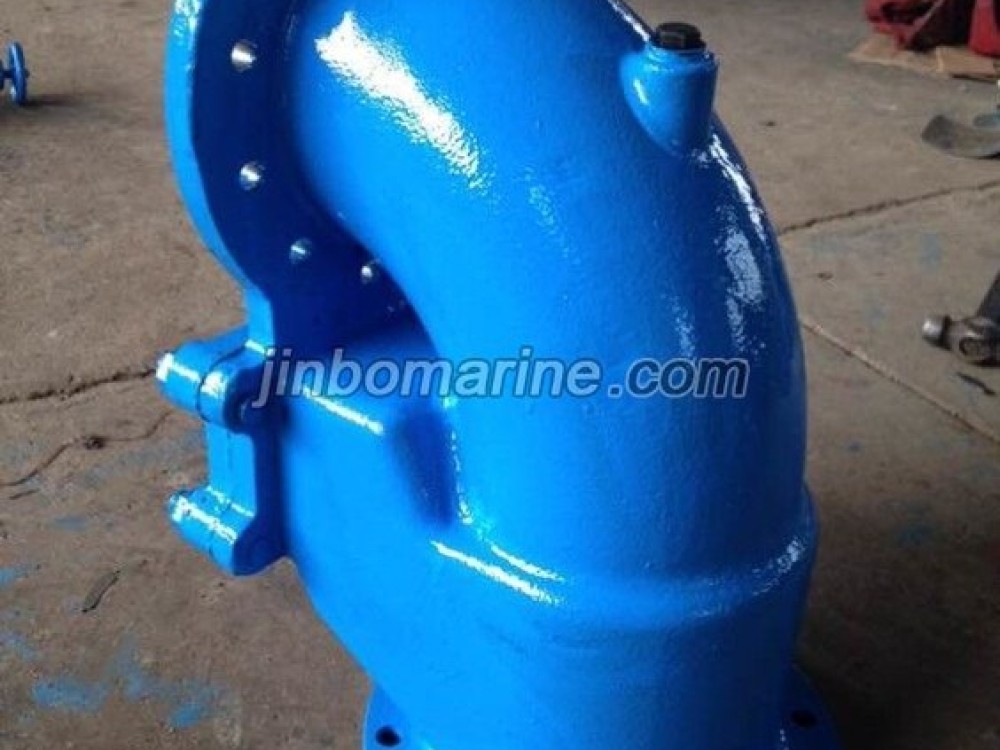

China Marine Flange Cast Steel Angle Storm Valve CB/T3475-92:

Marine Bronze/Cast Steel Storm Valve is used in the fresh water, sea water or sewage pipe system.

Design Standard: CB/T3475-92

Flange Standard: GB569 or GB2501

Test and Inpsection Standard: GB600

Technical Data:

Type Nominal Pressure (Mpa) Nominal Diameter(mm) Medium
A,AS 0.1 50~100 sea water, fresh water,sewage
B,BS 0.1 50~150

Main Parts & Material:

Body--Cast Steel

Bonnet--Cast Steel

Disc--Bronze

Gland--Brass

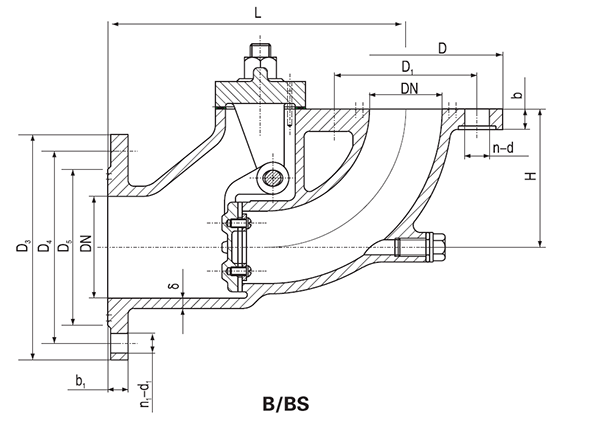

Main Size(mm):

Type A/B:

nominal
diameter 		export
diameter 		structure dimension Thickness
δ 		connecting dimention of inlet flange bolt connecting dimention of outlet flange bolt Weight(kg)
L H cast steel bronze
A B A B cast steel bronze D D1 D2 b d n Th. D3 D4 D5 b1 d1 n Th. A B A B
50 65 185 205 120 90 7.5 5 135 103 84 14 15 6 M14 155 123 104 14 15 6 M14 8 9 8 9
65 80 200 226 130 100 8 6 155 123 104 14 15 6 M14 170 138 118 14 15 8 M14 10 11 11 12
80 100 226 260 150 120 8.5 6 170 138 118 14 15 8 M14 190 158 138 14 15 8 M14 14 15 15 16
100 125 250 300 175 140 9 6 190 158 138 14 15 8 M14 215 183 164 14 15 10 M14 23 24 24 23
125 150 – 350 – 165 10 7 215 183 164 14 15 10 M14 240 208 190 14 15 12 M14 – 33 – 33
150 175 – 370 – 170 11 7 240 208 190 14 15 12 M14 270 238 221 15 15 12 M14 – 35 – 38

Type AS/BS:

nominal
diameter 		export
diameter 		structure dimension Thickness
δ 		connecting dimention of inlet flange bolt connecting dimention of outlet flange bolt Weight(kg)
L H cast steel bronze
AS BS AS BS cast steel bronze D D1 D2 b d n Th. D3 D4 D5 b1 d1 n Th. AS BS AS BS
50 65 185 205 120 90 7.5 5 140 110 90 16 14 4 M12 160 130 110 16 14 4 M12 8 9 8 9
65 80 200 226 130 100 8 6 160 130 110 16 14 4 M12 190 150 128 18 18 4 M16 10 13 11 13
80 100 226 260 150 120 8.5 6 190 150 128 18 18 4 M16 210 170 148 18 18 4 M16 15 18 16 19
100 125 250 300 175 140 9 6 210 170 148 18 18 4 M16 240 200 178 20 18 8 M16 25 27 26 28
125 150 – 350 – 165 10 7 240 200 178 20 18 8 M16 265 225 202 20 18 8 M16 – 41 – 41
150 175 – 370 – 170 11 7 265 225 202 20 18 8 M16 295 255 232 22 18 8 M16 – 50 – 51
