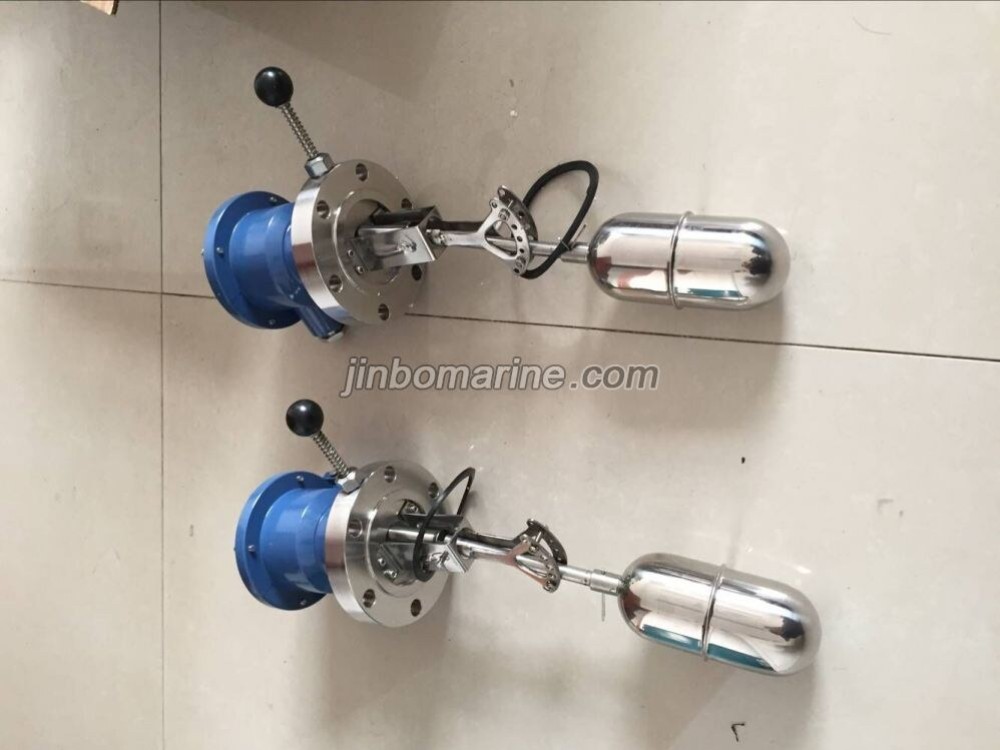

Marine Float Level Controller UQK-02 with Test Handle

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Float Level Controller UQK-02 with Test Handle:

Marine Float Level Controller UQK-02 is widely used in the ship chemical insutry and other other industrial intrument to carry two place ontrolling and alarm to the level in the liquid tank.

UQK-02 is installed horizontally.

Control range: 25-550mm

Nominal pressure: 1.0Mpa for UQK-02-C, 4.0Mpa for UQK-02-CB

Regulation type: adjustable with class

Flange material: Stainless Steel(UQK-02-C) or Bronze (UQK-02-CB)

Float material: stainless steel

Medium temperature: not over 150 degree centigrade

Power supply: AC 220V, 1.5A or 110V, 2.5A DC 240V,0.5A or 24V, 2.5A

Protection: IP66

Flang size as per the customer's requirement.
