Marine ice making water chiller

  • Category:Water Treatment Equipment
  • Material:Stainless steel
  • Certificate:CCS, BV, ABS, GL,LR, NK
  • Packing Details:Standard Export Packaging
  • Delivery Time:15-20days
  • Supply Ability:15 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

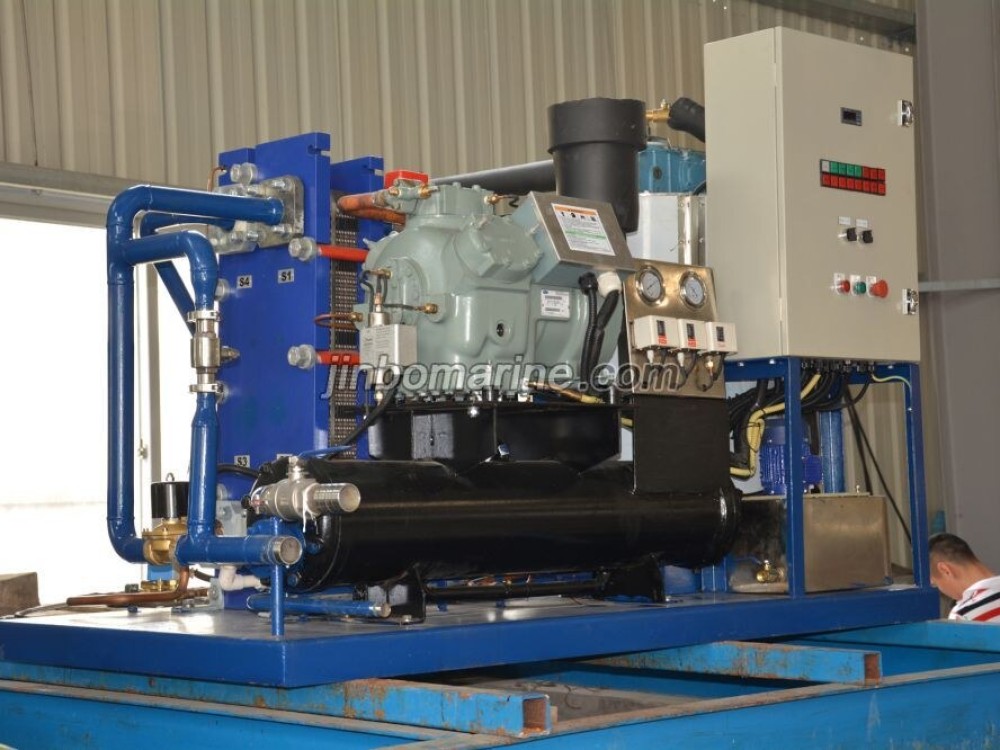

Marine ice making chiller

Marine water chiller unit for ice making machine is widely used in fishery production, seafood processing, offshore or oceanic fishing etc. Marine water chiller unit processes is following feature:

1. Main parts of this unit adopt efficient anti-corrosion material.

2. Making ice efficiently, you can make ice whenever you are in need.

3. It decreases the normal temperature water to 0℃rapidly and keeps supplying the water of 0℃.

4. Switching ice and cold water at any time.

5. This system has a fully automatic multiple protection function, there is not need for specialist operations, stable, efficient and energy saving.

Technical parameter

Model iceoutput
kg/day
comp-power
kw
water/yield
kg/hour
refrigerant
MFIW-12 1200 5 1000 R22/R404A
MFIW-22 2400 7.8 1400 R22/R404A
MFIW-32 3500 12 2000 R22/R404A
MFIW-50 5000 13 3300 R22/R404A
MFIW-65 6500 23 4500 R22/R404A
MFIW-75 7500 25 5300 R22/R404A
MFIW-100 10000 38 6500 R22/R404A
MFIW-120 12000 46 8000 R22/R404A
MFIW-150 15000 57 10000 R22/R404A
MFIW-200 20000 75 11000 R22/R404A
