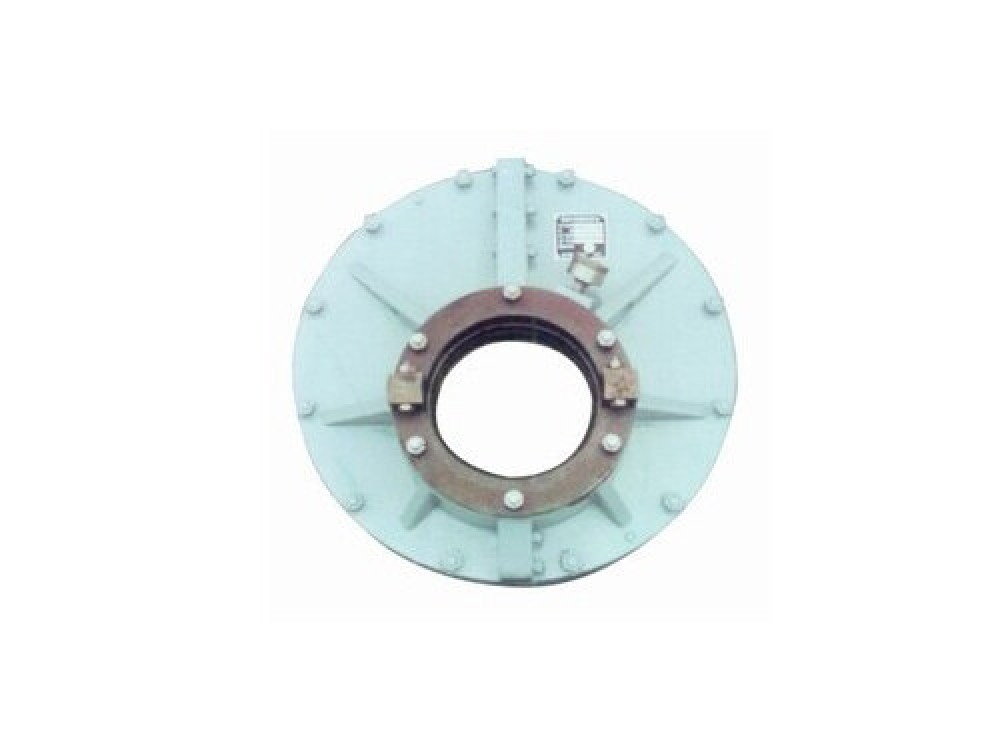

Marine Intermediate Shaft Bulkhead Stuffing Box type B
- Category:Stern Tube Bearing
- Material:Cast Iron & Carbon Steel
- Standards:JT/T263-1995
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Intermediate Shaft Bulkhead Stuffing Box type B:
Marine Bulkhead stuffing box is the sealing device that is installed in the bulkhead where the shaft is through, in order to ensure the watertight. There are Type A, B,C.
New Standard: JT/T263-1995
Old Standard: JT4174
Type A is suggested for vessels whose bulkhead space is large.
When the bulkhead space of vessel is small or there have requirement on design,you can adopt type B or type C.

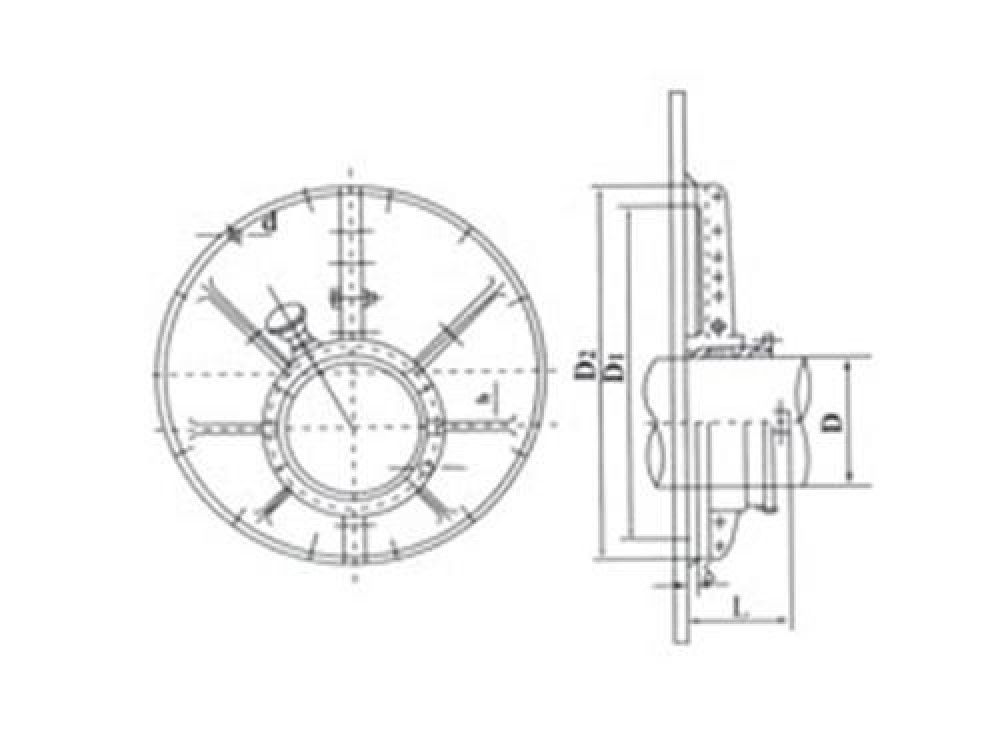

| Type | Dimensions (mm) | ||||||||
| D | D1 | D2 | L | h | n | d | δ | oil cup (cm3) | |
| B220 | 220 | 576 | 646 | 180 | 90 | 12 | 17 | 22 | 50 |
| B250 | 250 | 646 | 716 | 180 | 110 | 12 | 17 | 22 | 50 |
| B280 | 280 | 710 | 780 | 180 | 115 | 12 | 17 | 22 | 50 |
| B300 | 300 | 755 | 825 | 180 | 120 | 14 | 21 | 28 | 50 |
| B320 | 320 | 798 | 878 | 210 | 130 | 14 | 21 | 28 | 50 |
| B350 | 350 | 858 | 938 | 210 | 140 | 14 | 21 | 28 | 50 |
| B308 | 380 | 918 | 998 | 210 | 150 | 16 | 21 | 28 | 50 |
| B400 | 400 | 958 | 1038 | 210 | 160 | 16 | 21 | 28 | 50 |
| B450 | 450 | 1056 | 1145 | 230 | 175 | 16 | 21 | 28 | 100 |
| B470 | 470 | 1107 | 1197 | 230 | 185 | 18 | 25 | 34 | 100 |
| B500 | 500 | 1170 | 1260 | 230 | 195 | 18 | 25 | 34 | 100 |
| B530 | 530 | 1234 | 1324 | 230 | 205 | 18 | 25 | 34 | 100 |
| B560 | 560 | 1296 | 1386 | 250 | 215 | 20 | 25 | 34 | 100 |
| B600 | 600 | 1380 | 1480 | 250 | 230 | 20 | 25 | 34 | 100 |
